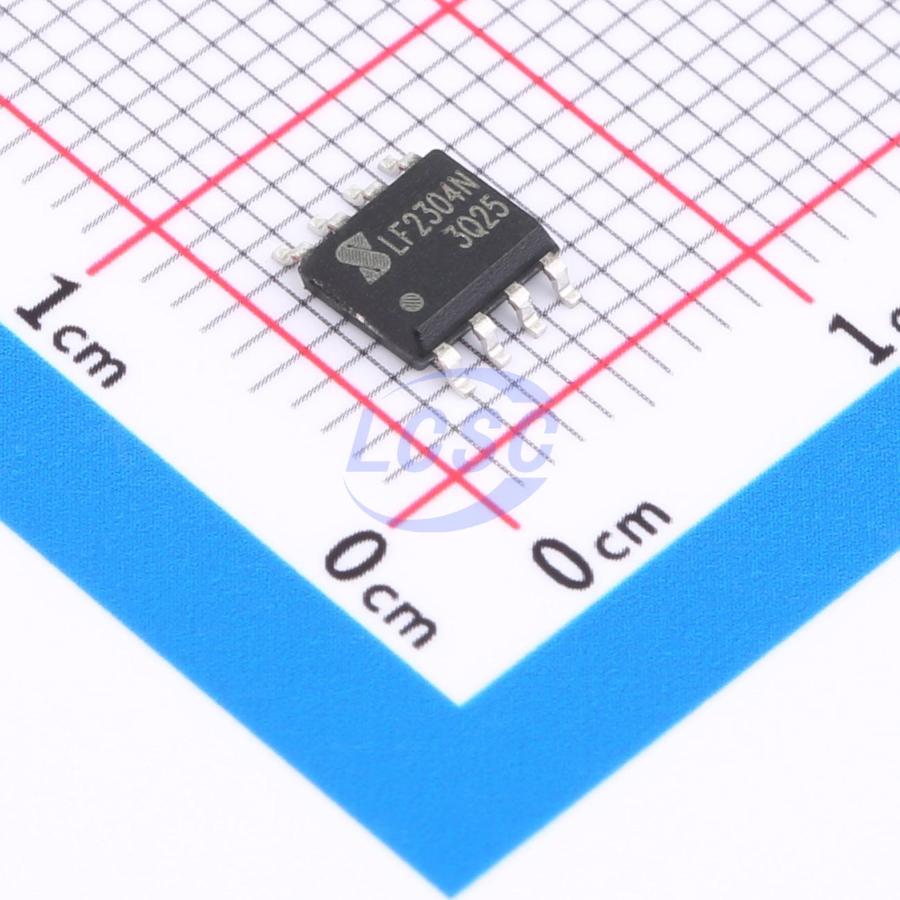

LF2304NTR-JSM
Half-Bridge Gate Driver IC MOSFET SOP-8
700V single-phase high and low side power MOSFET/IGBT driver IC
- Manufacturer
- JSMSEMI
- Manufacturer part #
- LF2304NTR-JSM
- Store part #
- C17701713
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,976 in stock
#C17701713
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹50.74 | ₹50.74 |
| 10+ | ₹44.92 | ₹449.20 |
| 30+ | ₹41.89 | ₹1,256.70 |
| 100+ | ₹39.08 | ₹3,908.00 |
| 500+ | ₹38.22 | ₹19,110.00 |
| 1,000+ | ₹37.35 | ₹37,350.00 |
1 × ₹50.74
₹50.74
excl. GST
₹59.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LF2304NTR-JSM
₹50.74 for 1 + GST
Specifications
- Low Level Delay Time
- 130ns
- High Level Delay Time
- 130ns
- Quiescent Current
- 120uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 75ns
- Fall Time
- 35ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.116 g
Overview
LF2304N is a high-voltage, high-speed power MOSFET high- and low-side gate driver IC. It features independent high-side and low-side referenced output channels. The high- and low-voltage compatible process enables monolithic integration of both high- and low-side gate drive circuits, with logic input levels compatible with CMOS or LSTTL logic outputs down to 3.3V. The floating channel supports high-side N-channel power MOSFET driving, with a maximum floating supply voltage of 700V. Housed in a SOP-8 package, it operates over a temperature range of -40°C to 125°C.
Applications
- Motor control
- Air conditioner/washing machine
- General-purpose inverter
- Inverter drive
Key features
- Floating high-side channel with bootstrap operation
- Maximum operating voltage up to +700V
- Compatible with 3.3V, 5V, and 15V input logic
- dV/dt immunity up to ±50V/ns
- Vs negative bias capability down to -9V
- Integrated VCC undervoltage lockout (UVLO)
- UVLO positive-going threshold 8.9V
- UVLO negative-going threshold 8.2V
- Propagation delay characteristics
- Turn-on/turn-off propagation delay Ton/Toff = 130ns/130ns
- Delay matching time 50ns
- Cross-conduction prevention
- Dead time 100ns
- Wide temperature range -40°C to 125°C
- Output stage source/sink current capability 300mA/600mA
- RoHS compliant
- SOP-8
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DGD2304S8-13-JSM#C17701714JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 4,005 | ₹94.13 · 4,005 in stock | View |
 | PT5606-S#C17701716JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 2,102 | ₹34.77 · 2,102 in stock | View |
 | IRS2103STRPBF-JSM#C17701702JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 65 | ₹96.05 · 65 in stock | View |
 | IR2103STRPBF-JSM#C17701703JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 130 | ₹61.80 · 130 in stock | View |
 | U2103S#C17701705JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 3,784 | ₹40.88 · 3,784 in stock | View |
