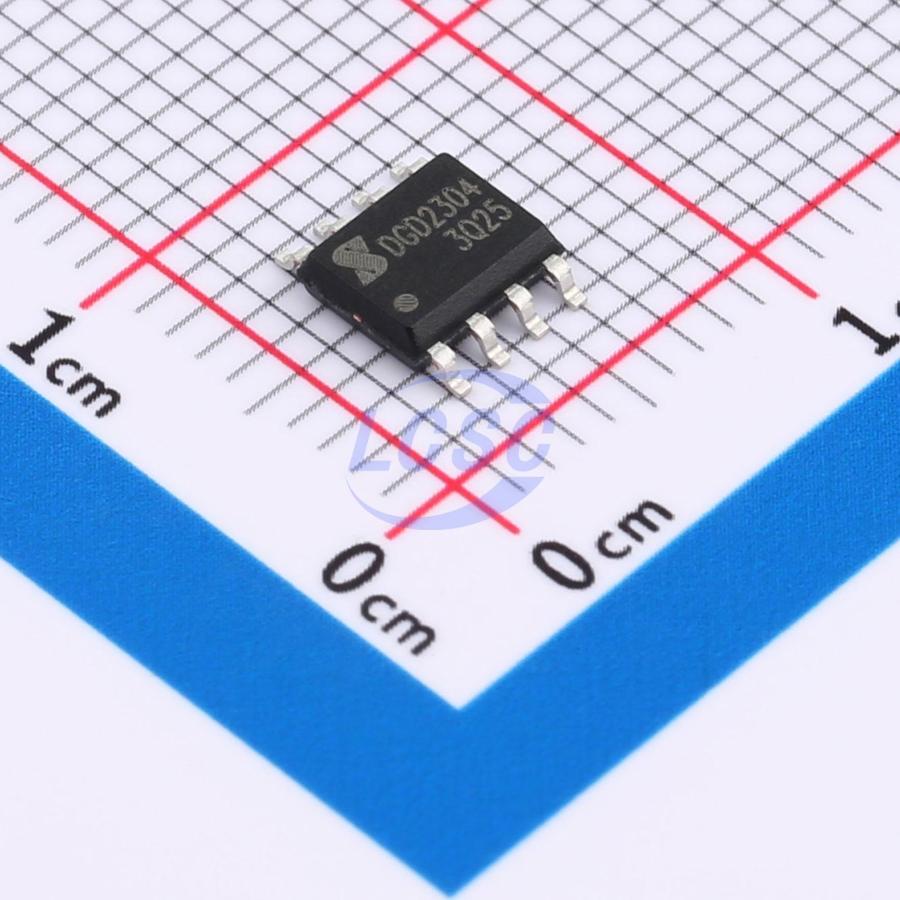

DGD2304S8-13-JSM
Half-Bridge Gate Driver IC MOSFET SOP-8
700V single-phase high and low side power MOSFET/IGBT driver IC
- Manufacturer
- JSMSEMI
- Manufacturer part #
- DGD2304S8-13-JSM
- Store part #
- C17701714
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,005 in stock
#C17701714
Stock & price checked 42 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹94.13 | ₹94.13 |
| 10+ | ₹75.34 | ₹753.40 |
| 30+ | ₹66.07 | ₹1,982.10 |
| 100+ | ₹56.78 | ₹5,678.00 |
| 500+ | ₹52.68 | ₹26,340.00 |
| 1,000+ | ₹49.67 | ₹49,670.00 |
1 × ₹94.13
₹94.13
excl. GST
₹111.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
DGD2304S8-13-JSM
₹94.13 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 130ns
- High Level Delay Time
- 130ns
- Quiescent Current
- 120uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 75ns
- Fall Time
- 35ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.116 g
Overview
DGD2304 is a high-voltage, high-speed power MOSFET high- and low-side gate driver IC. It features independent high-side and low-side referenced output channels. Utilizing a high- and low-voltage compatible process, both high-side and low-side gate drive circuits are integrated on a single chip, with logic input levels compatible with CMOS or LSTTL logic output levels as low as 3.3V. The floating channel supports driving of high-side N-channel power MOSFETs, with a maximum floating supply offset voltage up to 700V. Available in SOP-8 package, operating over a temperature range of -40°C to 125°C.
Applications
- Motor control
- Air conditioner/washing machine
- General-purpose inverter
- Inverter drive
Key features
- Floating high-side channel with bootstrap operation
- Maximum operating voltage up to +700V
- Compatible with 3.3V, 5V, and 15V input logic
- dV/dt immunity up to ±50V/ns
- Vs negative bias capability down to -9V
- Integrated VCC undervoltage lockout (UVLO)
- UVLO positive-going threshold 8.9V
- UVLO negative-going threshold 8.2V
- Propagation delay characteristics
- Turn-on/turn-off propagation delay Ton/Toff = 130ns/130ns
- Delay matching time 50ns
- Cross-conduction prevention
- Dead time 100ns
- Wide temperature range -40°C to 125°C
- Output stage source/sink current capability 300mA/600mA
- RoHS compliant
- SOP-8
