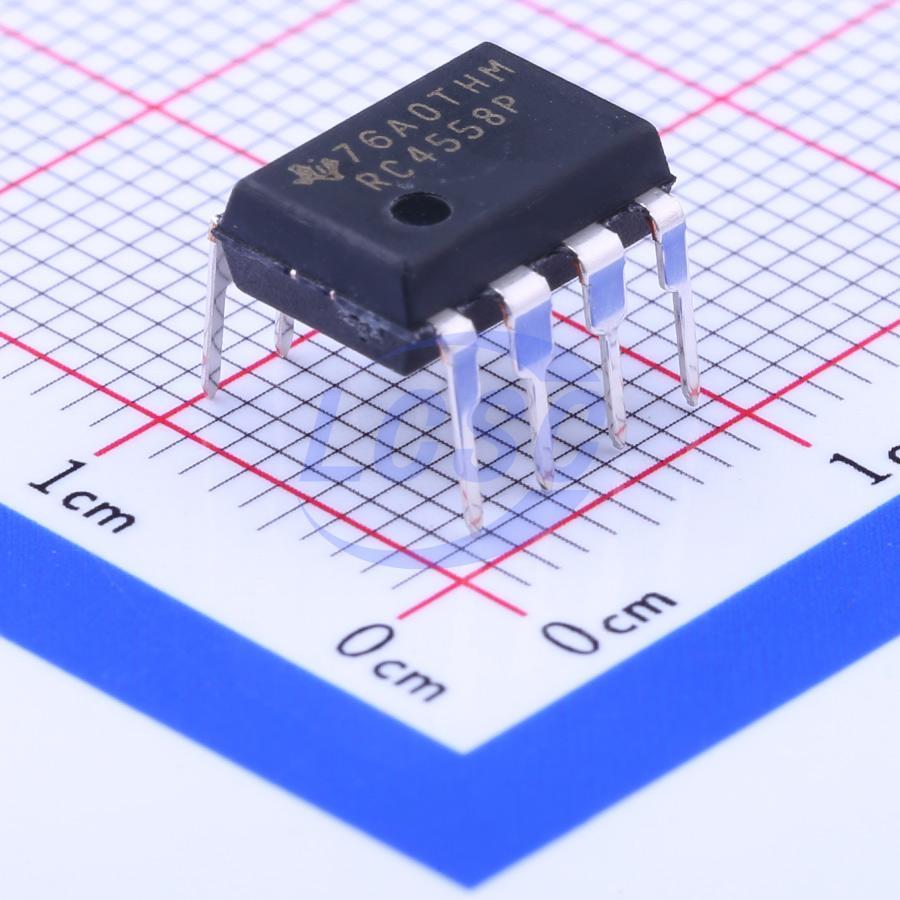

RC4558P
2 6mV 1.7V/us 90dB 500nA 2.5mA 3MHz PDIP-8 Instrumentation, Op Amps, Buffer Amps RoHS
PDIP-8ROHS3 CompliantActive
Dual General-Purpose Operational Amplifier
- Manufacturer
- TI
- Manufacturer part #
- RC4558P
- Store part #
- C80101
- Package / case
- PDIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,010 in stock
#C80101
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.47 | ₹192.35 |
| 50+ | ₹30.20 | ₹1,510.00 |
| 150+ | ₹26.17 | ₹3,925.50 |
| 500+ | ₹22.57 | ₹11,285.00 |
| 2,500+ | ₹21.58 | ₹53,950.00 |
| 5,000+ | ₹20.98 | ₹1,04,900.00 |
5 × ₹38.47
₹192.35
excl. GST
₹226.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
RC4558P
₹192.35 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 6mV
- Slew Rate
- 1.7V/us
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 500nA
- Quiescent Current
- 2.5mA
- Gain Bandwidth Product
- 3MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 8nV/√Hz@1kHz
- Dual Supply
- -15V~15V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.9 g
Overview
The RC4558 device is a dual general-purpose operational amplifier, with each half electrically similar to the μA741, except that offset null capability is not provided. The high common-mode input voltage range and the absence of latch-up make this amplifier ideal for voltage-follower applications. The device is shortcircuit protected, and the internal frequency compensation ensures stability without external components.
Applications
- DVD Recorders and Players
- Pro Audio Mixers
Key features
- Continuous Short-Circuit Protection
- Wide Common-Mode and Differential Voltage Ranges
- No Frequency Compensation Required
- Low Power Consumption
- No Latch-Up
- Unity-Gain Bandwidth: 3 MHz Typ
- Gain and Phase Match Between Amplifiers
- Low Noise: 8 nV/√Hz Typ at 1 kHz
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM4558N#C725330HGSEMI · DIP-8 | HGSEMI | DIP-8 | 1,250 | ₹22.25 · 1,250 in stock | View |
 | RC4558P-TUDI#C55098823Tudi · DIP-8 | Tudi | DIP-8 | 475 | ₹31.75 · 475 in stock | View |
| HG5532N#C47088906HGSEMI · DIP-8 | HGSEMI | DIP-8 | 1,990 | ₹22.74 · 1,990 in stock | View | |
 | NE5532N#C2987282HGSEMI · DIP-8 | HGSEMI | DIP-8 | 50 | ₹21.09 · 50 in stock | View |
 | TL082CN(XBLW)#C18724387XBLW · DIP-8 | XBLW | DIP-8 | 3,015 | ₹24.05 · 3,015 in stock | View |
