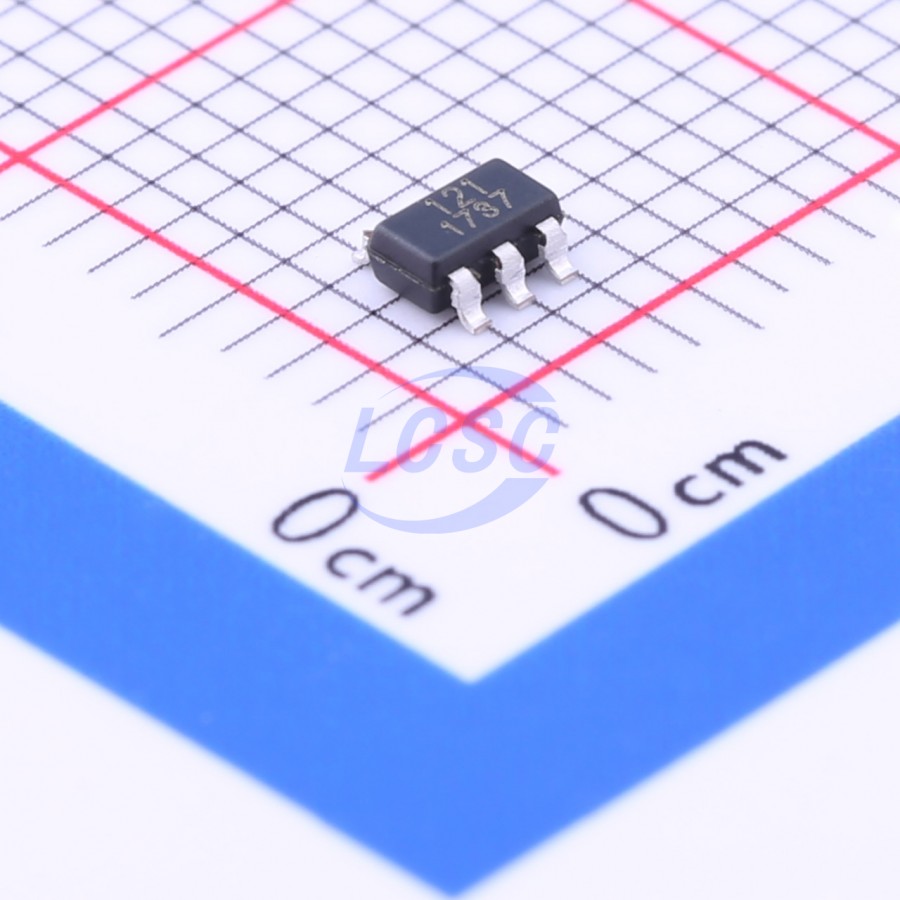

RS121XF

25mA 1 800uV 50V/ms 95dB 1pA 12uA 150kHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS3 CompliantActive

150kHz, Rail-to-Rail I/O CMos Operational Amplifier

Manufacturer: RUNIC
Manufacturer part #: RS121XF
Store part #: C237029
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,390 in stock

#C237029

Stock & price checked 18 h ago

Quantity	Unit price	Pack price
5+	₹25.48	₹127.40
50+	₹19.02	₹951.00
150+	₹16.26	₹2,439.00
500+	₹12.81	₹6,405.00

Quantity (min 5, multiples of 5)

5 × ₹25.48

₹127.40

excl. GST

₹150.33 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RS121XF

₹127.40 for 5 + GST

Specifications

Output Current: 25mA
Number of Channels: 1
Vos - Input Offset Voltage: 800uV
Slew Rate: 50V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 95dB
Ib - Input Bias Current: 1pA
Quiescent Current: 12uA
Gain Bandwidth Product: 150kHz
Input Voltage Noise Density: 77nV/√Hz@1kHz
Dual Supply: -2.75V~-1.25V;1.25V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.08 g

Overview

The RS121, RS122, RS124, RS121S, RS122S families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (150kHz) and slew rate of 0.05V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The devices are ideal for sensor interfaces, active filters and portable applications. The RS121S, RS122S include a shutdown mode. Under logic control, the amplifiers can be switched from normal operation to a standby current that is less than 1uA. The RS121, RS122, RS124, RS121S, RS122S families of operational amplifiers are specified at the full temperature range of -40°C to +125°C under single or dual power supplies of 2.5V to 5.5V.

Applications

SENSORS
PHOTODIODE AMPLIFICATION
ACTIVE FILTERS
TEST EQUIPMENT
DRIVING A/D CONVERTERS

Key features

GAIN BANDWIDTH: 150kHz
RAIL-TO-RAIL INPUT AND OUTPUT
0.8mV Typical Vos
INPUT VOLTAGE RANGE: -0.1V to +5.68 with Vs = 5.5V
SUPPLY RANGE: +2.5V to +5.5V
SHUTDOWN: RS121S/RS122S
SPECIFIED UP TO ±125°C
MicroSIZE PACKAGES: SOT23-5, SOT23-6
