RUNICDatasheet (PDF)

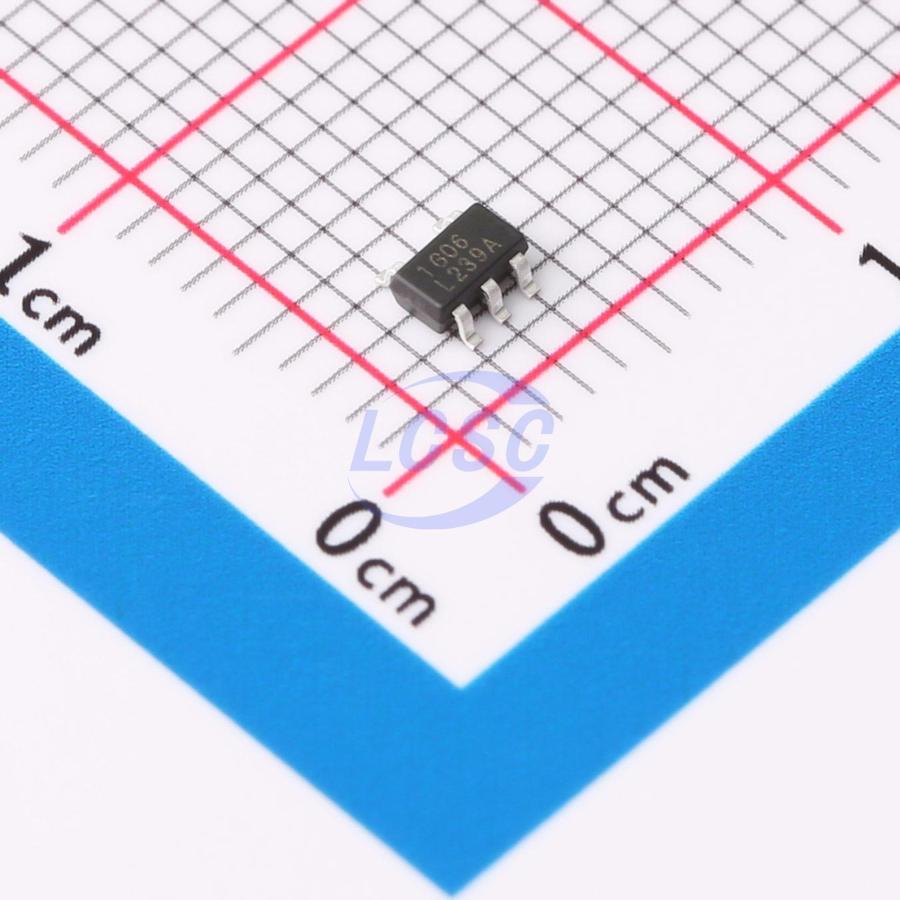

RS1G06XF5
1.65V~5.5V 1 1 4.2ns@3.3V,50pF SOT23-5 Buffers, Drivers, Receivers, Transceivers
SOT23-5RoHSActive
Single Inverter Buffer/Driver with Open-Drain
- Manufacturer
- RUNIC
- Manufacturer part #
- RS1G06XF5
- Store part #
- C5372440
- Package / case
- SOT23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,932 in stock
#C5372440
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹5.21 | ₹5.21 |
1 × ₹5.21
₹5.21
excl. GST
₹6.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS1G06XF5
₹5.21 for 1 + GST
Specifications
- Function
- Power-off isolation
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 32mA
- Output Type
- Open-drain
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 1uA
- Propagation Delay
- 4.2ns@3.3V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.042 g
Overview
The RS1G06 Single inverter buffer and driver is designed for 1.65V to 5.5V VCC operation. The RS1G06 device is open drain and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. The device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The RS1G06 is available in Green SOT23-5 and SOT353(SC70-5) packages. It operates over an ambient temperature range of -40°C to +125°C.
Applications
- Blu-ray Players and Home Theaters
- Desktops or Notebook PCs
- Digital Video Cameras (DVC)
- Mobile Phones
- Personal Navigation Device (GPS)
- Portable Media Player
Key features
- Operating Voltage Range: 1.65V to 5.5V
- Low Power Consumption: 1µA (Max)
- Operating Temperature Range: -40°C to ±125°C
- Input and Open-Drain Output accept Voltage to 5.5V
- High Output Drive: ±24mA at VCC = 3.0V
- Micro SIZE PACKAGES: SOT23-5, SOT353(SC70-5)
