RUNICDatasheet (PDF)

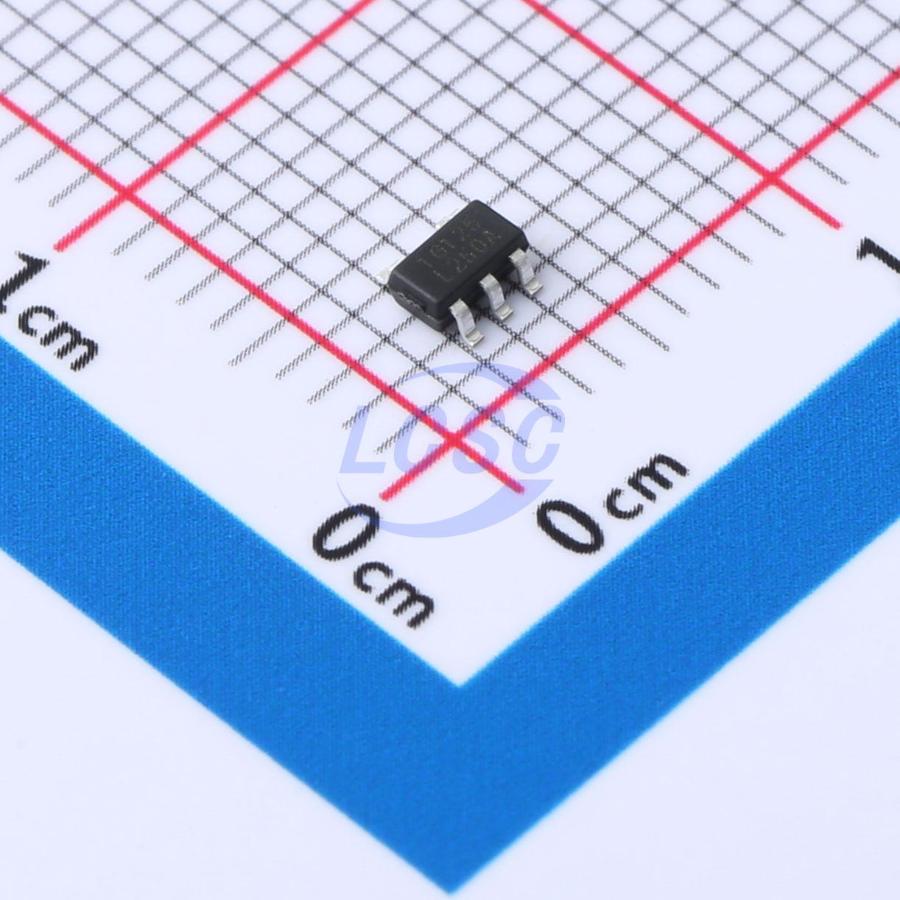

RS1G125XF5
1.65V~5.5V 1 1 2.1ns@5V,15pF SOT23-5 Buffers, Drivers, Receivers, Transceivers
SOT23-5RoHSActive
Single Bus Buffer Gate With 3-State Output
- Manufacturer
- RUNIC
- Manufacturer part #
- RS1G125XF5
- Store part #
- C5372445
- Package / case
- SOT23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,890 in stock
#C5372445
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹12.32 | ₹123.20 |
| 100+ | ₹8.88 | ₹888.00 |
| 300+ | ₹7.16 | ₹2,148.00 |
10 × ₹12.32
₹123.20
excl. GST
₹145.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS1G125XF5
₹123.20 for 10 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 1uA
- Function
- Power-off isolation;Output enable
- Current - Output High(IOH)
- 24mA
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 2.1ns@5V,15pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.046 g
Overview
Operating Voltage Range: 1.65V to 5.5V Low Power Consumption: 1μA (Max) Operating Temperature Range: -40°C to +125°C Inputs Accept Voltage to 5.5V ±24mA Output Drive at VCC = 3.0V Latch-up Performance Exceeds 100mA Micro SIZE PACKAGES: SOT23 - 5, SC70 - 5
Applications
- AV Receiver
- Cable Modem Termination Systems
- Digital Picture Frame (DPF)
- High-Speed Data Acquisition and Generation
- Motor Controls: High-Voltage
- Personal Navigation Device (GPS)
- Portable Media Player
- Video Communication Systems
Key features
- Operating Voltage Range: 1.65V to 5.5V
- Low Power Consumption: 1μA (Max)
- Operating Temperature Range: -40°C to +125°C
- Inputs Accept Voltage to 5.5V
- ±24mA Output Drive at VCC = 3.0V
- Latch-up Performance Exceeds 100mA
- Micro SIZE PACKAGES: SOT23 - 5, SC70 - 5
