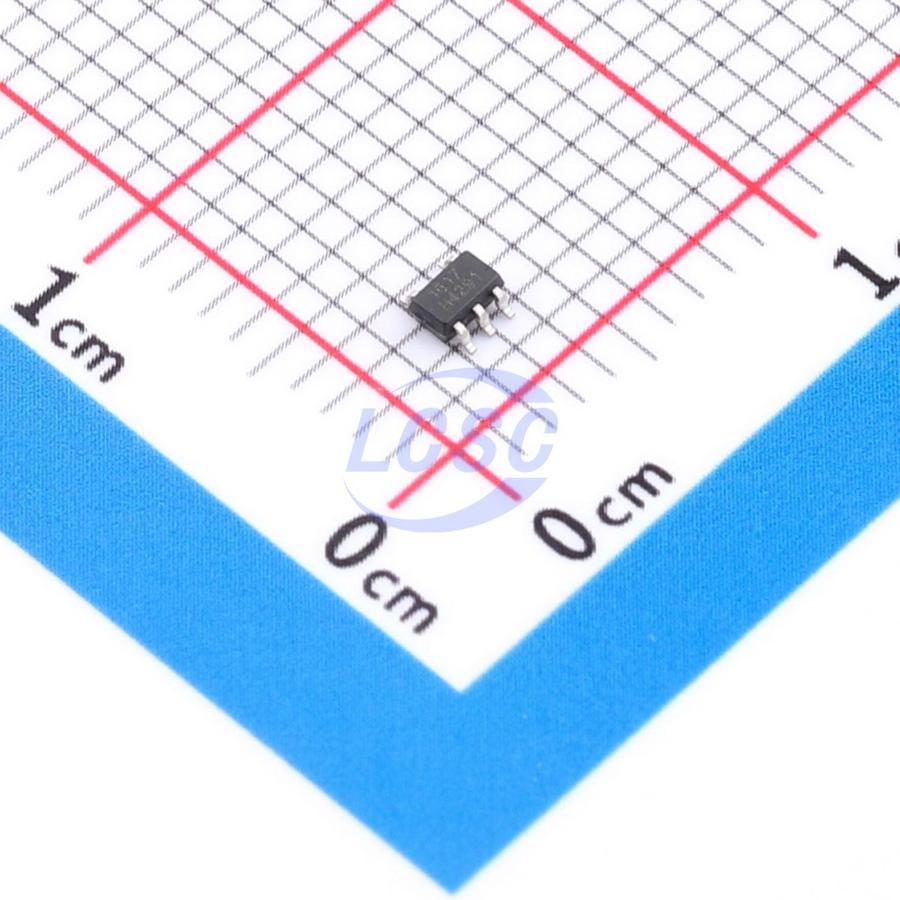

RS1G17XC5-Q1
1 D-Type 100nA 1 SC-70-5 Specialty Logic
- Manufacturer
- RUNIC
- Manufacturer part #
- RS1G17XC5-Q1
- Store part #
- C42459511
- Package / case
- SC-70-5
- Category
- Specialty Logic
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,150 in stock
#C42459511
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.51 | ₹127.55 |
| 50+ | ₹20.03 | ₹1,001.50 |
| 150+ | ₹17.68 | ₹2,652.00 |
| 500+ | ₹14.75 | ₹7,375.00 |
| 3,000+ | ₹13.45 | ₹40,350.00 |
| 6,000+ | ₹12.66 | ₹75,960.00 |
5 × ₹25.51
₹127.55
excl. GST
₹150.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS1G17XC5-Q1
₹127.55 for 5 + GST
Specifications
- Logic Family
- RS1G17
- Number of Bits per Element
- 1
- Propagation Delay Time
- 2.5ns@1.8V,15pF
- Current - Output Low(IOL)
- 32mA
- Current - Output High(IOH)
- 32mA
- Operating Temperature
- -55℃~+125℃
- Type
- D-Type
- Voltage - Supply
- 1.65V~5.5V
- Quiescent Current(Iq)
- 100nA
- Number of Gates
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The RS1G17-Q1 single Schmitt-trigger buffer is designed for Vcc operating voltages from 1.65V to 5.5V. The device contains one buffer that performs the Boolean function Y = A. It operates as a standalone buffer with Schmitt-trigger inputs, providing different input threshold levels for rising-edge (VT+) and falling-edge (VT−) signals to provide hysteresis (ΔVT), which allows the device to tolerate slow or noisy input signals. The device is fully specified for partial-power-down applications using Ioff. The Ioff circuit disables the outputs, preventing damaging current backflow when the device is powered down. The RS1G17-Q1 is offered in a green SC70-5 package with an operating ambient temperature range of −40°C to +125°C.
Applications
- Automotive infotainment and instrument clusters
- Automotive zonal and body domain controllers
- HEV/EV battery management systems
Key features
- Operating voltage range: 1.65V to 5.5V
- Low power consumption: 1μA (maximum)
- Operating temperature range: -40°C to +125°C
- Inputs accept voltages up to 5.5V
- High output drive capability: ±24mA at Vcc=3.0V
- Ioff supports partial power-down mode operation
- Miniature package: SC70-5
