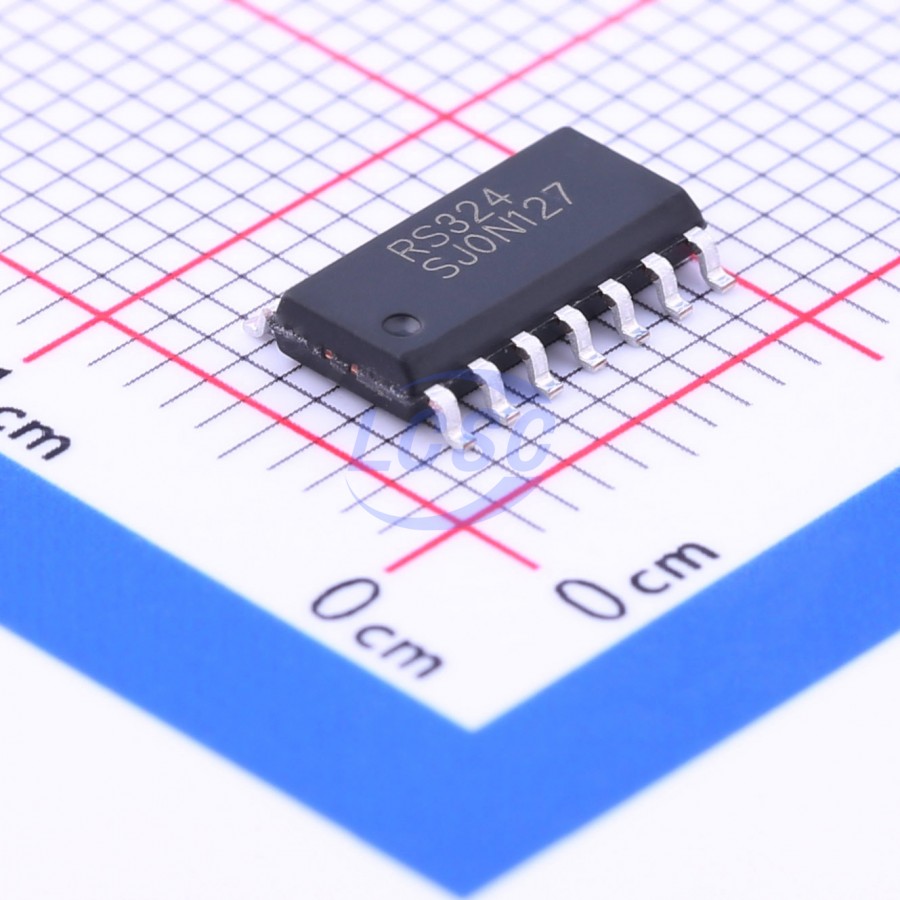

RS324XP

54mA 4 800uV 500V/ms 1pA 80dB 60uA 1.1MHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-14 Instrumentation, Op Amps, Buffer Amps

SOIC-14RoHSActive

1.1MHz, Rail-to-Rail I/O CMOS Operational Amplifier

Manufacturer: RUNIC
Manufacturer part #: RS324XP
Store part #: C237021
Package / case: SOIC-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,705 in stock

#C237021

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹28.34	₹141.70
50+	₹22.39	₹1,119.50
150+	₹19.85	₹2,977.50
500+	₹16.67	₹8,335.00
2,500+	₹14.06	₹35,150.00
4,000+	₹13.31	₹53,240.00

Quantity (min 5, multiples of 5)

5 × ₹28.34

₹141.70

excl. GST

₹167.21 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS324XP

₹141.70 for 5 + GST

Specifications

Output Current: 54mA
Number of Channels: 4
Vos - Input Offset Voltage: 800uV
Slew Rate: 500V/ms
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 80dB
Input Offset Voltage Drift(Vos TC): 2.9uV/℃
Quiescent Current: 60uA
Gain Bandwidth Product: 1.1MHz
Features: Built-in compensation
Input Voltage Noise Density: 23nV/√Hz@1kHz
Dual Supply: -2.75V~-1.1V;1.1V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.2V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.22 g

Overview

The RS321, RS358, RS324, RS321S, RS358S families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (1.1MHz) and slew rate of 0.5V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The devices are ideal for sensor interfaces, active filters and portable applications. The RS321S, RS358S include a shutdown mode. Under logic control, the amplifiers can be switched from normal operation to a standby current that is less than 1uA. The RS321, RS358, RS324, RS321S, RS358S families of operational amplifiers are specified at the full temperature range of -40°C to +125°C under single or dual power supplies of 2.2V to 5.5V.

Applications

SENSORS
PHOTODIODE AMPLIFICATION
ACTIVE FILTERS
TEST EQUIPMENT DRIVING A/D CONVERTERS

Key features

HIGH GAIN BANDWIDTH: 1.1MHz
RAIL-TO-RAIL INPUT AND OUTPUT ±0.8mV Typical Vos
INPUT VOLTAGE RANGE: -0.1V to +5.6V with Vs = 5.5V
SUPPLY RANGE: +2.2V to +5.5V
SHUTDOWN: RS321S/RS358S
SPECIFIED UP TO +125°C
Micro SIZE PACKAGES: SOT23-5, SOT23-6
