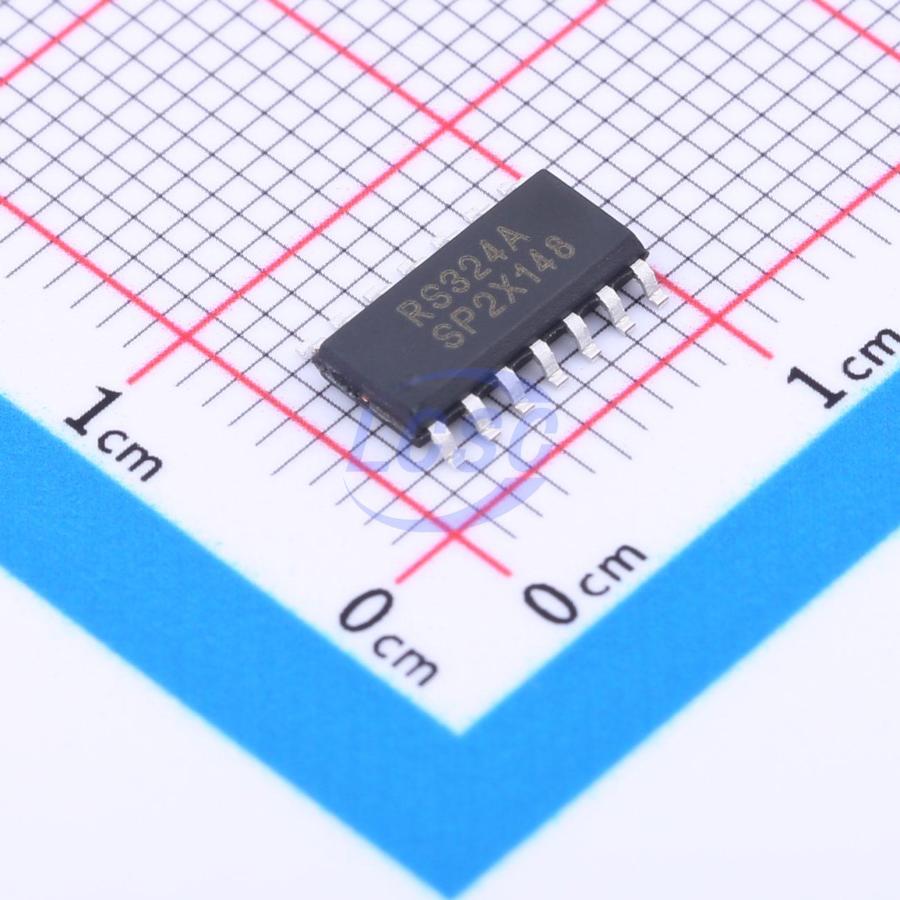

RS324AXP

130mA 4 4.5mV 500V/ms 90dB 100pA 60uA 1.1MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-14 Instrumentation, Op Amps, Buffer Amps RoHS

SOP-14ROHS3 CompliantActive

1.1MHz, Precision, Rail-to-Rail I/O CMos Operational Amplifier

Manufacturer: RUNIC
Manufacturer part #: RS324AXP
Store part #: C2887731
Package / case: SOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,715 in stock

#C2887731

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹30.20	₹151.00
50+	₹22.56	₹1,128.00
150+	₹19.28	₹2,892.00
500+	₹15.19	₹7,595.00

Quantity (min 5, multiples of 5)

5 × ₹30.20

₹151.00

excl. GST

₹178.18 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS324AXP

₹151.00 for 5 + GST

Specifications

Output Current: 130mA
Number of Channels: 4
Vos - Input Offset Voltage: 4.5mV
Slew Rate: 500V/ms
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 90dB
Ib - Input Bias Current: 100pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 60uA
Gain Bandwidth Product: 1.1MHz
Features: Built-in compensation
Input Voltage Noise Density: 22nV/√Hz@1kHz
Dual Supply: 1.25V~2.75V;-2.75V~-1.25V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.258 g

Overview

HIGH GAIN BANDWIDTH: 1.1MHz RAIL-TO-RAIL INPUT AND OUTPUT ±4.5mV Max Vos INPUT VOLTAGE RANGE: -0.1V to +5.68V with Vs = 5.5V SUPPLY RANGE: +2.5V to +5.5V SPECIFIED UP TO ±125°C PACKAGES: SOIC-14、TSSOP-14

Applications

SENSORS
PHOTODIODE AMPLIFICATION
ACTIVE FILTERS
TEST EQUIPMENT DRIVING A/D CONVERTERS
sensor interfaces
portable applications
