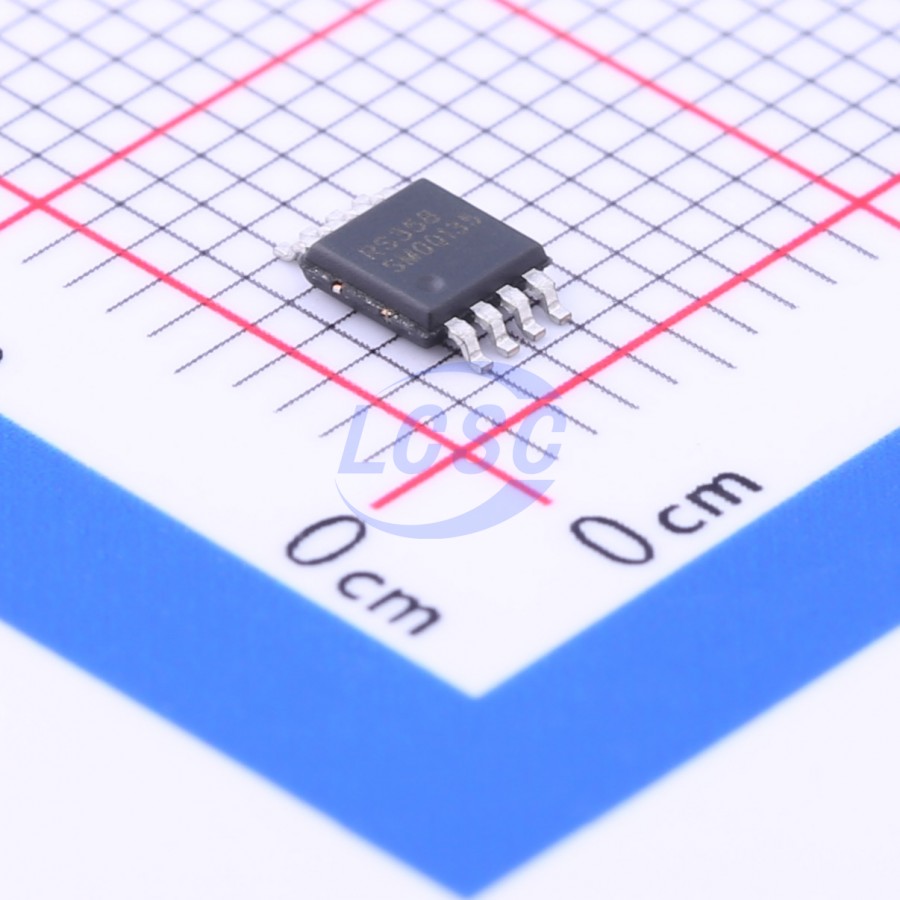

RUNICDatasheet (PDF)
RS358XM
54mA 1 800uV 500V/ms 1pA 80dB 60uA 1.1MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps
MSOP-8RoHSActive
1.1MHz, Rail-to-Rail I/O CMos Operational Amplifier
- Manufacturer
- RUNIC
- Manufacturer part #
- RS358XM
- Store part #
- C237018
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,945 in stock
#C237018
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.78 | ₹98.90 |
| 50+ | ₹14.79 | ₹739.50 |
| 150+ | ₹12.29 | ₹1,843.50 |
| 500+ | ₹10.41 | ₹5,205.00 |
5 × ₹19.78
₹98.90
excl. GST
₹116.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS358XM
₹98.90 for 5 + GST
Specifications
- Output Current
- 54mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 800uV
- Slew Rate
- 500V/ms
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Input Offset Voltage Drift(Vos TC)
- 2.9uV/℃
- Quiescent Current
- 60uA
- Gain Bandwidth Product
- 1.1MHz
- Features
- Enable/shutdown function
- Input Voltage Noise Density
- 23nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.25V;1.25V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.1 g
Overview
The RS321, RS358, RS324, RS321S, RS358S families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (1.1MHz) and slew rate of 0.5V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The devices are ideal for sensor interfaces, active filters and portable applications. The RS321S, RS358S include a shutdown mode. Under logic control, the amplifiers can be switched from normal operation to a standby current that is less than 1uA. The RS321, RS358, RS324, RS321S, RS358S families of operational amplifiers are specified at the full temperature range of -40°C to +125°C under single or dual power supplies of 2.5V to 5.5V.
Applications
- SENSORS
- PHOTODIODE AMPLIFICATION
- ACTIVE FILTERS
- TEST EQUIPMENT
- DRIVING A/D CONVERTERS
Key features
- HIGH GAIN BANDWIDTH: 1.1MHz
- RAIL-TO-RAIL INPUT AND OUTPUT
- 0.8 Typical Vos
- INPUT VOLTAGE RANGE: -0.1V to +5.68 with Vs = 5.5V
- SUPPLY RANGE: +2.5V to +5.5V
- SHUTDOWN: RS321S/RS358S
- SPECIFIED UP TO ±125°C
- MicroSIZE PACKAGES: SOT23-5, SOT23-6
