RUNICDatasheet (PDF)

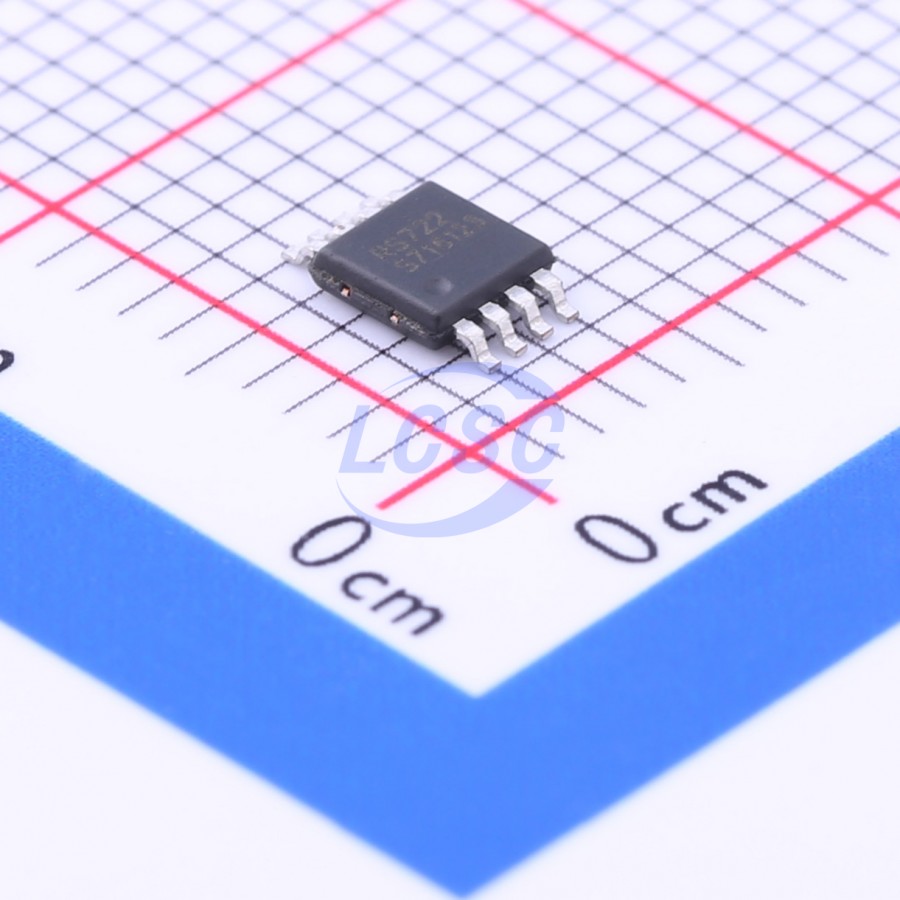

RS722XM
70mA 1 500uV 7V/us 85dB 1pA 1.15mA 10MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
MSOP-8ROHS3 CompliantActive
10MHz, Rail-to-Rail I/O, CMos Operational Amplifier
- Manufacturer
- RUNIC
- Manufacturer part #
- RS722XM
- Store part #
- C237007
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,798 in stock
#C237007
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.85 | ₹77.85 |
| 10+ | ₹58.12 | ₹581.20 |
| 30+ | ₹49.65 | ₹1,489.50 |
| 100+ | ₹39.03 | ₹3,903.00 |
1 × ₹77.85
₹77.85
excl. GST
₹91.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS722XM
₹77.85 for 1 + GST
Specifications
- Output Current
- 70mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 7V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 2.6uV/℃
- Quiescent Current
- 1.15mA
- Gain Bandwidth Product
- 10MHz
- Input Voltage Noise Density
- 9.5nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.25V;1.25V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.1 g
Overview
The RS72X families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (10MHz) and slew rate of 7V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The devices are ideal for sensor interfaces, active filters and portable applications. The RS721S, RS722S include a shutdown mode. Under logic control, the amplifiers can be switched from normal operation to a standby current that is less than 1uA. The RS72X families of operational amplifiers are specified at the full temperature range of -40°C to +125°C under single or dual power supplies of 2.5V to 5.5V.
Applications
- SENSORS
- PHOTODIODE AMPLIFICATION
- ACTIVE FILTERS
- TEST EQUIPMENT
- DRIVING A/D CONVERTERS
Key features
- HIGH GAIN BANDWIDTH: 10MHz
- RAIL-TO-RAIL INPUT AND OUTPUT
- 0.9mV Typical Vos
- INPUT VOLTAGE RANGE: -0.1V to +5.68 with Vs = 5.5V
- SUPPLY RANGE: +2.5V to +5.5V
- SHUTDOWN: RS721S/RS722S
- SPECIFIED UP TO ±125°C
- MicroSIZE PACKAGES: SOT23-5, SOT23-6
