RUNICDatasheet (PDF)

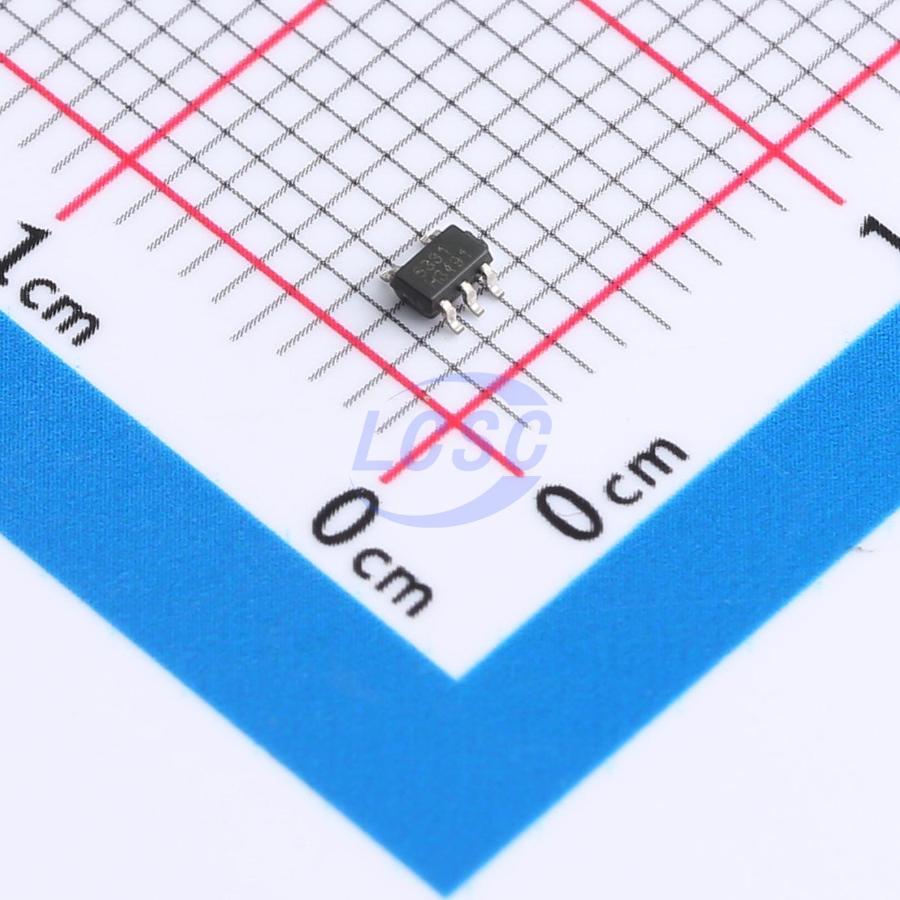

RS6331XC5-Q1
100mA 1 100uV 500V/ms 90dB 10pA 1.4MHz 90uA Rail-to-Rail Input, Rail-to-Rail Output SC-70-5 Instrumentation, Op Amps, Buffer Amps
SC-70-5RoHSActive
1.4MHz, Rail-to-Rail I/O CMOS Operational Amplifier
- Manufacturer
- RUNIC
- Manufacturer part #
- RS6331XC5-Q1
- Store part #
- C42459636
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,875 in stock
#C42459636
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.96 | ₹254.80 |
| 50+ | ₹40.11 | ₹2,005.50 |
| 150+ | ₹35.35 | ₹5,302.50 |
| 500+ | ₹29.49 | ₹14,745.00 |
| 3,000+ | ₹26.90 | ₹80,700.00 |
| 6,000+ | ₹25.38 | ₹1,52,280.00 |
5 × ₹50.96
₹254.80
excl. GST
₹300.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS6331XC5-Q1
₹254.80 for 5 + GST
Specifications
- Output Current
- 100mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 100uV
- Slew Rate
- 500V/ms
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 10pA
- Input Offset Voltage Drift(Vos TC)
- 1uV/℃
- Gain Bandwidth Product
- 1.4MHz
- Quiescent Current
- 90uA
- Features
- Built-in compensation
- Input Voltage Noise Density
- 47nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -2.75V~-1.1V;1.1V~2.75V
- Single Supply
- 2.2V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.118 g
Overview
The RS6331-Q1, RS6332-Q1, RS6334-Q1 families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (1.4MHz) and slew rate of 0.5V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The devices are ideal for sensor interfaces, active filters, and portable applications. The RS6331-Q1, RS6332-Q1, RS6334-Q1 families of operational amplifiers are specified at the full temperature range of -40°C to +125°C under single or dual power supplies of 2.2V to 5.5V.
Applications
- SENSORS
- PHOTODIODE AMPLIFICATION
- ACTIVE FILTERS
- TEST EQUIPMENT DRIVING A/D CONVERTERS
Key features
- Qualified for Automotive Applications
- AEC-Q100 Qualified with the Grade 1
- HIGH GAIN BANDWIDTH: 1.4MHz
- RAIL-TO-RAIL INPUT AND OUTPUT
- ±0.1mV Typical Vos
- INPUT VOLTAGE RANGE: -0.1V to +5.6V with Vs = 5.5V
- SUPPLY RANGE: +2.2V to +5.5V
- SPECIFIED UP TO +125°C
- Micro SIZE PACKAGES: SOT23-5, SC70-5, SOP8, MSOP8, SOP14, TSSOP14
