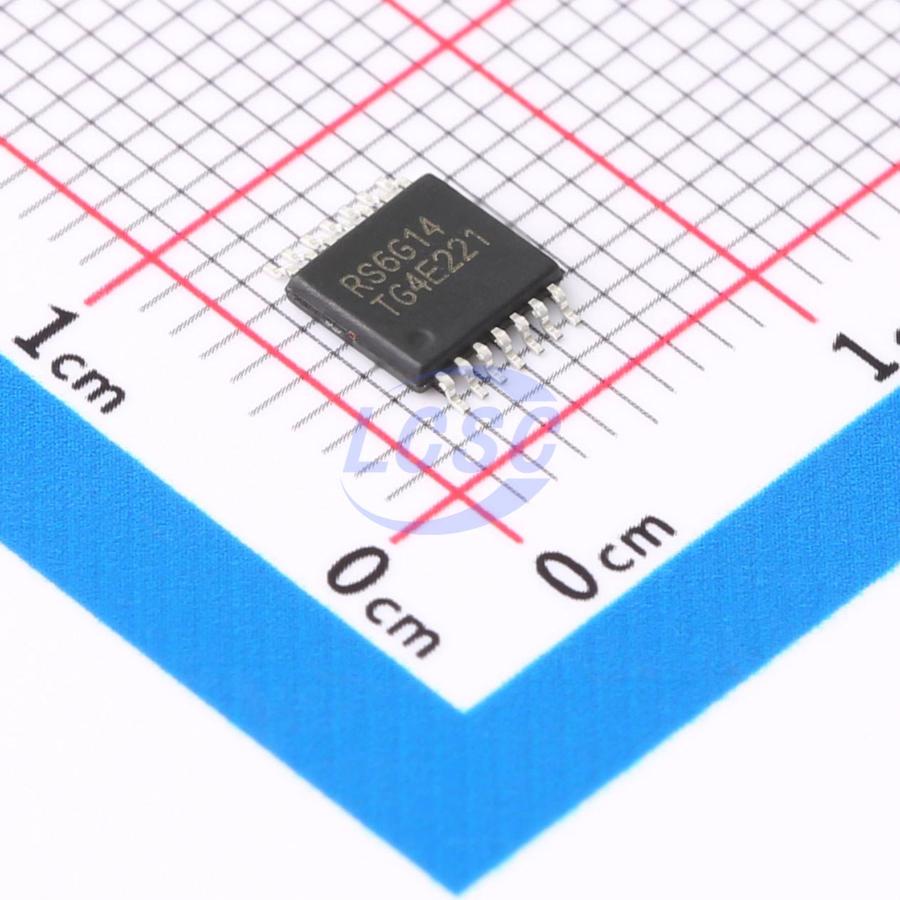

RUNIC

RS6G14XQ

Schmitt trigger 1.65V~5.5V 6 6 3.1ns@3.3V,50pF TSSOP-14 Buffers, Drivers, Receivers, Transceivers

TSSOP-14RoHSSold out at source

6-channel Schmitt-Trigger Inverter

Manufacturer: RUNIC
Manufacturer part #: RS6G14XQ
Store part #: C5372599
Package / case: TSSOP-14
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,645 in stock

#C5372599

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹36.75	₹183.75
50+	₹27.44	₹1,372.00
150+	₹23.46	₹3,519.00
500+	₹18.47	₹9,235.00

Quantity (min 5, multiples of 5)

5 × ₹36.75

₹183.75

excl. GST

₹216.83 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS6G14XQ

₹183.75 for 5 + GST

Specifications

Function: Power-off isolation
Current - Output High(IOH): 24mA
Input type: Schmitt trigger
Voltage - Supply: 1.65V~5.5V
Current - Output Low(IOL): 24mA
Number of Bits per Element: 6
Channel Type: Unidirectional
Operating Temperature: -40℃~+125℃
Number of Elements: 6
Quiescent Supply Current: 10uA
Propagation Delay: 3.1ns@3.3V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Sold out at source
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.097 g

Overview

The RS6G14 6-channel Schmitt-trigger inverter is designed for 1.65V to 5.5V VCC operation. The RS6G14 device contains six inverters and performs the Boolean function Y = A(overline). The device functions as six independent inverters with Schmitt-trigger inputs, so the device has different input threshold levels for positive-going (VT+) and negative going (VT-) signals to provide hysteresis (ΔVT) which makes the device tolerant to slow or noisy input signals. This device is fully specified for partial-power-down applications using loff. The loff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The RS6G14 is available in Green SOP14 and TSSOP14 packages. It operates over an ambient temperature range of -40°C to +125°C.
