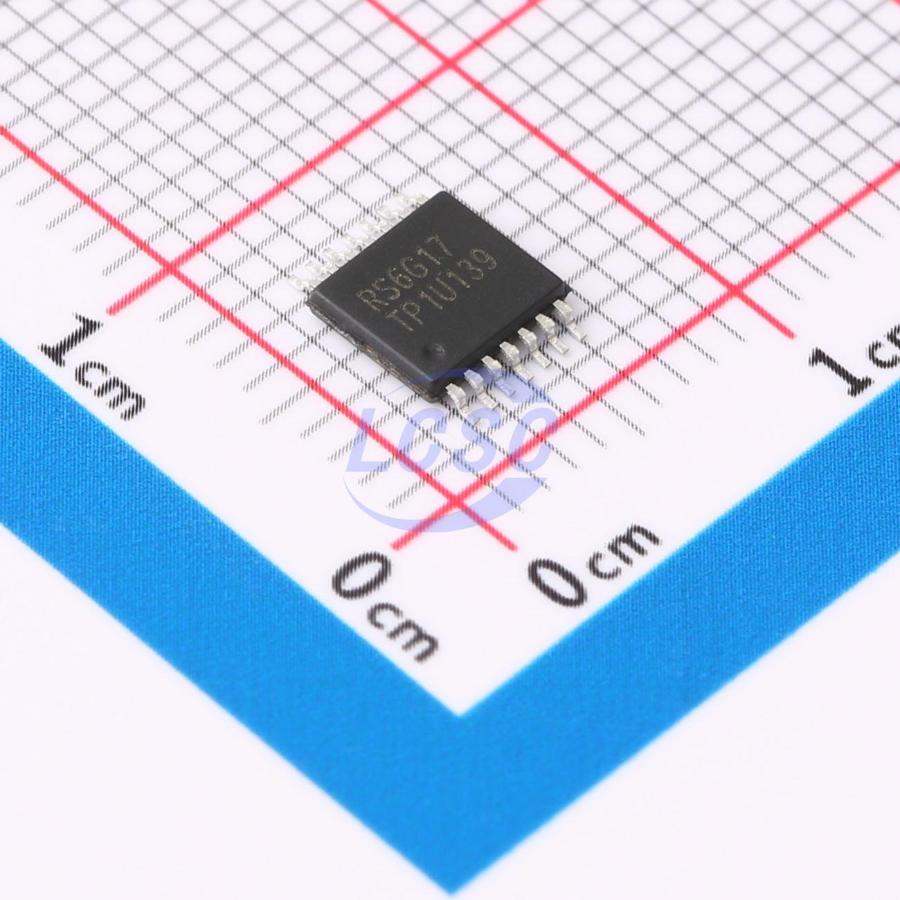

RUNIC

RS6G17XQ

Schmitt trigger 1.65V~5.5V 6 6 5.7ns@3.3V,50pF TSSOP-14 Buffers, Drivers, Receivers, Transceivers

TSSOP-14RoHSActive

6-channel Schmitt-Trigger buffers

Manufacturer: RUNIC
Manufacturer part #: RS6G17XQ
Store part #: C5372600
Package / case: TSSOP-14
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,690 in stock

#C5372600

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹36.44	₹182.20
50+	₹27.21	₹1,360.50
150+	₹23.26	₹3,489.00
500+	₹18.32	₹9,160.00

Quantity (min 5, multiples of 5)

5 × ₹36.44

₹182.20

excl. GST

₹215.00 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS6G17XQ

₹182.20 for 5 + GST

Specifications

Function: Power-off isolation
Current - Output High(IOH): 24mA
Input type: Schmitt trigger
Voltage - Supply: 1.65V~5.5V
Current - Output Low(IOL): 24mA
Number of Bits per Element: 6
Channel Type: Unidirectional
Operating Temperature: -40℃~+125℃
Number of Elements: 6
Quiescent Supply Current: 10uA
Propagation Delay: 5.7ns@3.3V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.096 g

Overview

RS6G17 6-channel Schmitt-trigger buffer is designed for 1.65V to 5.5V VCC operation. The RS6G17 device contains six buffer and performs the Boolean function Y = A. The device functions as six independent buffers with Schmitt-trigger inputs, so the device has different input threshold levels for positivegoing (VT+) and negative going (VT) signals to provide hysteresis (ΔVT) which makes the device tolerant to slow or noisy input signals. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The RS6G17 is available in Green SOIC-14(SOP-14) and TSSOP-14 packages. It operates over an ambient temperature range of -40°C to +125°C.
