RUNICDatasheet (PDF)

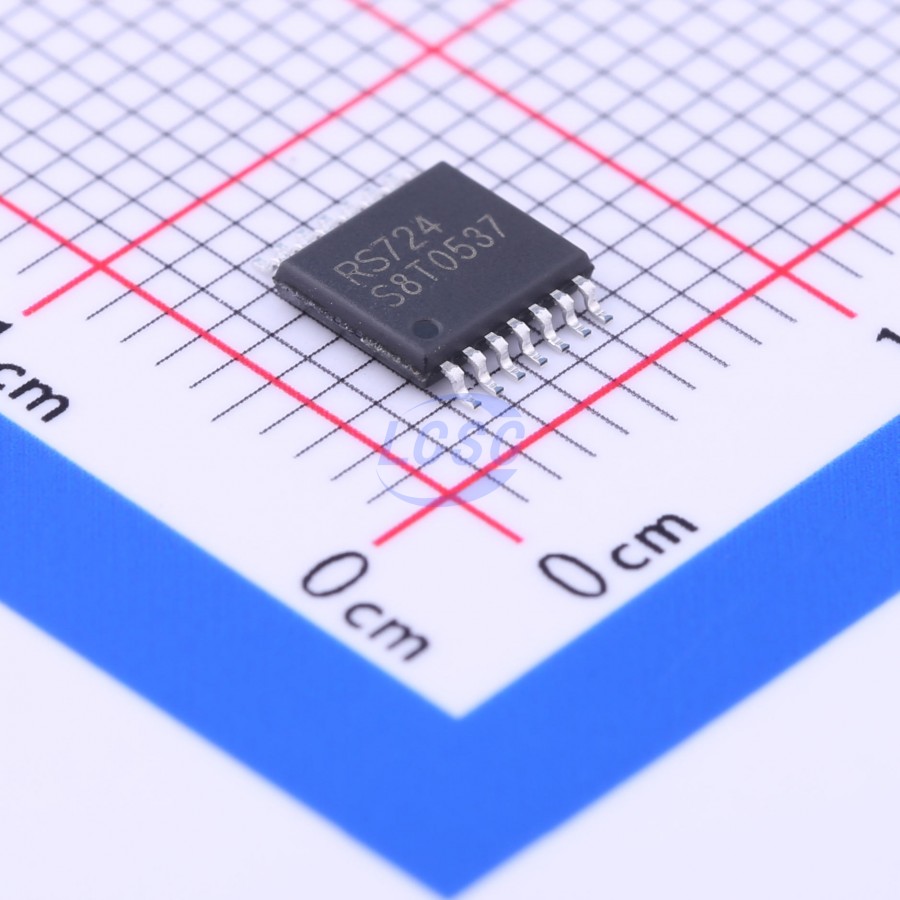

RS724XQ
70mA 4 2.5mV 7V/us 85dB 10pA 1.15mA 10MHz Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
TSSOP-14ROHS3 CompliantActive
10MHz, Rail-to-Rail I/O, CMos Operational Amplifier
- Manufacturer
- RUNIC
- Manufacturer part #
- RS724XQ
- Store part #
- C255447
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,001 in stock
#C255447
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹129.20 | ₹129.20 |
| 10+ | ₹95.27 | ₹952.70 |
| 30+ | ₹78.31 | ₹2,349.30 |
1 × ₹129.20
₹129.20
excl. GST
₹152.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS724XQ
₹129.20 for 1 + GST
Specifications
- Output Current
- 70mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 2.5mV
- Slew Rate
- 7V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 10pA
- Input Offset Voltage Drift(Vos TC)
- 2.6uV/℃
- Quiescent Current
- 1.15mA
- Gain Bandwidth Product
- 10MHz
- Input Voltage Noise Density
- 9.5nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.25V;1.25V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Overview
The RS72X series offers low-voltage operation, rail-to-rail input and output, and an excellent speed-to-power ratio, featuring outstanding bandwidth (10MHz) and a slew rate of 7V/μs. The op-amp provides unity-gain stability and ultra-low input bias current. This device is an ideal choice for sensor interfaces, active filters, and portable applications. The RS72X series op-amps are fully specified over the complete temperature range of -40°C to +125°C, operating from 2.5V to 5.5V single-supply or dual-supply.
Applications
- Sensor
- Photodiode amplification
- Active filter
- Test equipment
- Driving ADC
Key features
- High gain bandwidth: 10MHz
- Rail-to-rail input and output, typical offset voltage ±0.5mV
- Input voltage range: -0.1V to +5.6V (at Vs = 5.5V)
- Supply voltage range: +2.5V to +5.5V
- Operating temperature range up to +125℃
- Miniature package: SOT23-5
