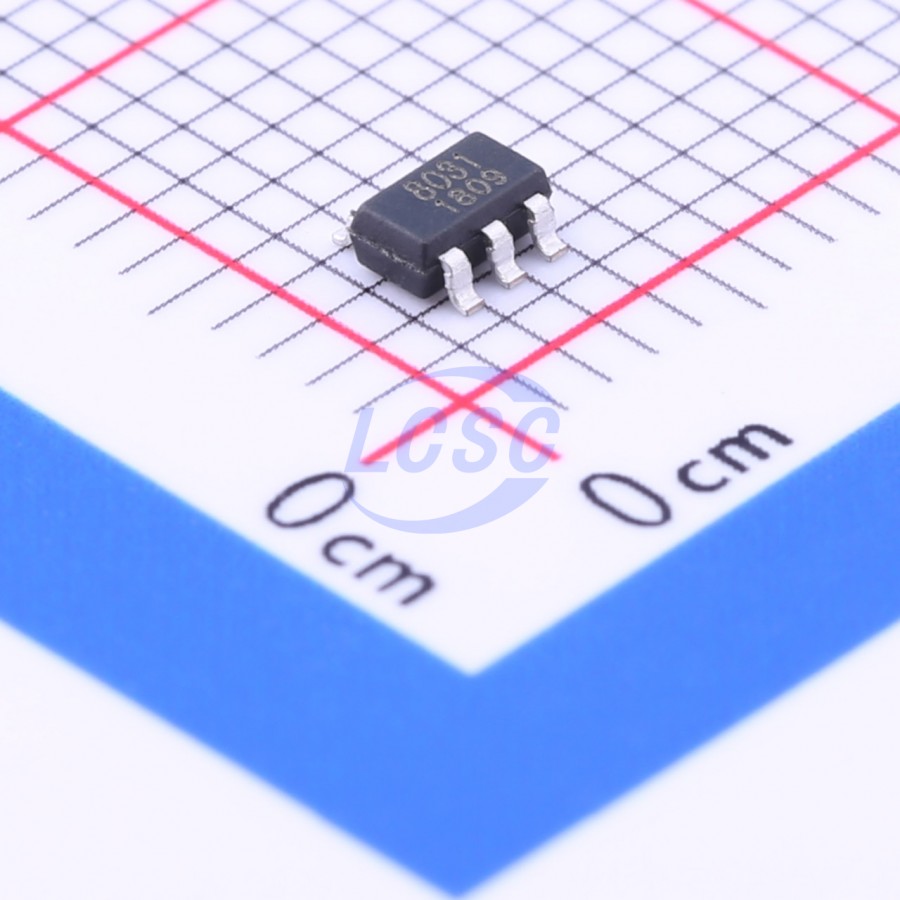

RUNICDatasheet (PDF)
RS8031XF
11mA 1 500uV 7.5V/ms 90dB 1pA 15kHz 750nA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS3 CompliantActive
CMOS Operational Amplifier with Rail-to-Rail I/O
- Manufacturer
- RUNIC
- Manufacturer part #
- RS8031XF
- Store part #
- C237006
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,440 in stock
#C237006
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.16 | ₹215.80 |
| 50+ | ₹32.31 | ₹1,615.50 |
| 150+ | ₹27.54 | ₹4,131.00 |
| 500+ | ₹21.68 | ₹10,840.00 |
5 × ₹43.16
₹215.80
excl. GST
₹254.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS8031XF
₹215.80 for 5 + GST
Specifications
- Output Current
- 11mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 7.5V/ms
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 2.3uV/℃
- Gain Bandwidth Product
- 15kHz
- Quiescent Current
- 750nA
- Features
- Built-in compensation
- Input Voltage Noise Density
- 160nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.4V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.1 g
Overview
GAIN BANDWIDTH: 15kHz RAIL-TO-RAIL INPUT AND OUTPUT 0.5mv Typical Vos INPUT VOLTAGE RANGE: -0.1V to +5.68 with VS = 5.5V SUPPLY RANGE: +1.4V to +5.5V SPECIFIED UP TO ±125°C MicroSIZE PACKAGES: SOT23 - 5 The RS8031, RS8032, RS8034 families of products offer low voltage operation and rail - to - rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (15kHz) and slew rate of 7.5V/ms. The op - amps are unity gain stable and feature an ultra - low input bias current. The devices are ideal for sensor interfaces, active filters and portable applications. The RS8031, RS8032, RS8034 families of operational amplifiers are specified at the full temperature range of - 40°C to +125°C under single or dual power supplies of 1.4V to 5.5V.
Applications
- SENSORS
- PHOTODIODE AMPLIFICATION
- WEARABLE PRODUCTS
- TEMPERATURE MEASUREMENT
- BATTERY POWERED SYSTEM
