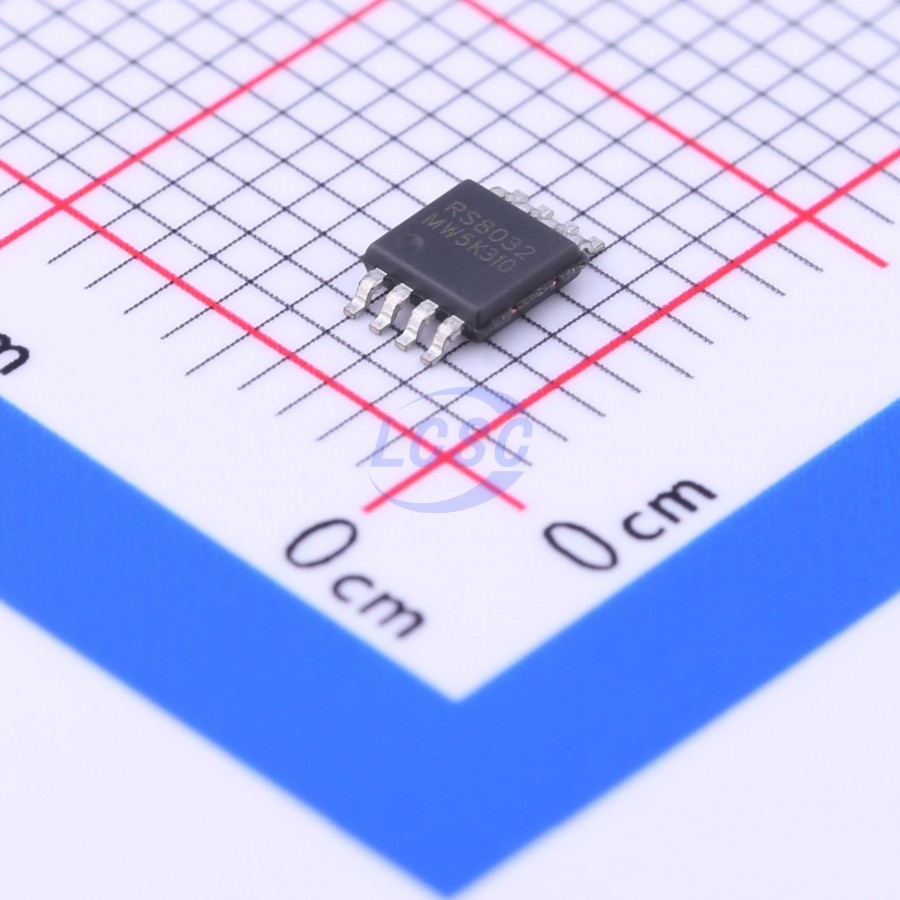

RUNICDatasheet (PDF)
RS8032XM
11mA 1 500uV 7.5V/ms 1pA 90dB 670nA 15kHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps
MSOP-8RoHSActive
Cmos Operational Amplifier
- Manufacturer
- RUNIC
- Manufacturer part #
- RS8032XM
- Store part #
- C255435
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,915 in stock
#C255435
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹60.50 | ₹302.50 |
| 50+ | ₹45.10 | ₹2,255.00 |
| 150+ | ₹38.61 | ₹5,791.50 |
| 500+ | ₹30.36 | ₹15,180.00 |
5 × ₹60.50
₹302.50
excl. GST
₹356.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS8032XM
₹302.50 for 5 + GST
Specifications
- Output Current
- 11mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 7.5V/ms
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Input Offset Voltage Drift(Vos TC)
- 2.3uV/℃
- Quiescent Current
- 670nA
- Gain Bandwidth Product
- 15kHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 160nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.4V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.1 g
Overview
The RS8031, RS8032, RS8034, families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (15kHz) and slew rate of 7.5V/ms. The op-amps are unity gain stable and feature an ultra-low input bias current.
Applications
- SENSORS
- PHOTODIODE AMPLIFICATION
- WEARABLE PRODUCTS
- TEMPERATURE MEASUREMENT
- BATTERY POWERED SYSTEM
Key features
- GAIN BANDWIDTH: 15kHz
- RAIL-TO-RAIL INPUT AND OUTPUT 0.5mv Typical Vos
- INPUT VOLTAGE RANGE: -0.1V to +5.68 with Vs = 5.5V
- SUPPLY RANGE: +1.4V to +5.5V
- SPECIFIED UP TO ±125°C
- Micro SIZE PACKAGES: SOT23-5
