RUNICDatasheet (PDF)

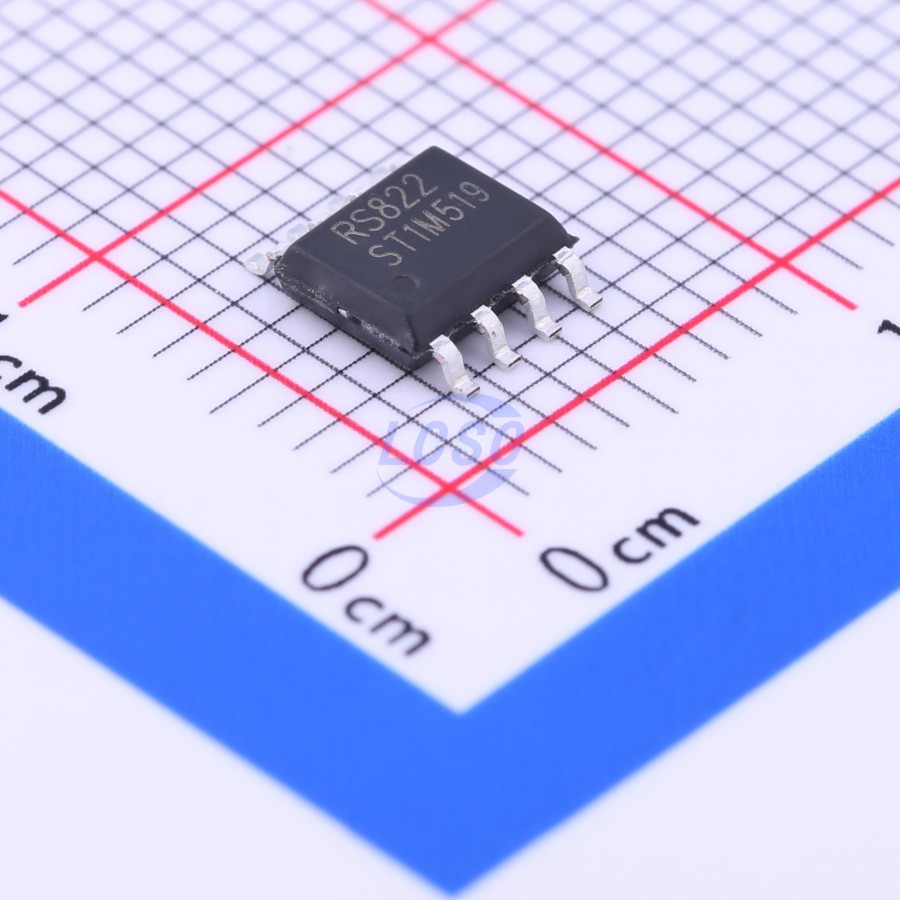

RS822XK
110mA 2 600uV 10V/us 10pA 88dB 1.9mA 14MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
14MHz, Rail-to-Rail I/O, CMos Operational Amplifier
- Manufacturer
- RUNIC
- Manufacturer part #
- RS822XK
- Store part #
- C255443
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,762 in stock
#C255443
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.83 | ₹72.83 |
| 10+ | ₹51.66 | ₹516.60 |
| 30+ | ₹42.35 | ₹1,270.50 |
1 × ₹72.83
₹72.83
excl. GST
₹85.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS822XK
₹72.83 for 1 + GST
Specifications
- Output Current
- 110mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 600uV
- Slew Rate
- 10V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 10pA
- Common Mode Rejection Ratio(CMRR)
- 88dB
- Input Offset Voltage Drift(Vos TC)
- 1.6uV/℃
- Quiescent Current
- 1.9mA
- Gain Bandwidth Product
- 14MHz
- Input Voltage Noise Density
- 8.5nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Overview
The RS82X families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (14MHz) and slew rate of 10V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The devices are ideal for sensor interfaces, active filters and portable applications. The RS821S, RS822S include a shutdown mode. Under logic control, the amplifiers can be switched from normal operation to a standby current that is less than 1uA. The RS82X families of operational amplifiers are specified at the full temperature range of -40°C to +125°C under single or dual power supplies of 2.5V to 5.5V.
Applications
- SENSORS
- PHOTODIODE AMPLIFICATION
- ACTIVE FILTERS
- TEST EQUIPMENT
- DRIVING A/D CONVERTERS
Key features
- HIGH GAIN BANDWIDTH: 14MHz
- RAIL-TO-RAIL INPUT AND OUTPUT 0.6mv Typical Vos
- INPUT VOLTAGE RANGE: -0.1V to +5.68 with Vs = 5.5V
- SUPPLY RANGE: +2.5V to +5.5V
- SHUTDOWN: RS821S/RS822S
- SPECIFIED UP TO +125°C
- MicroSIZE PACKAGES: SOT23-5, SOT23-6
