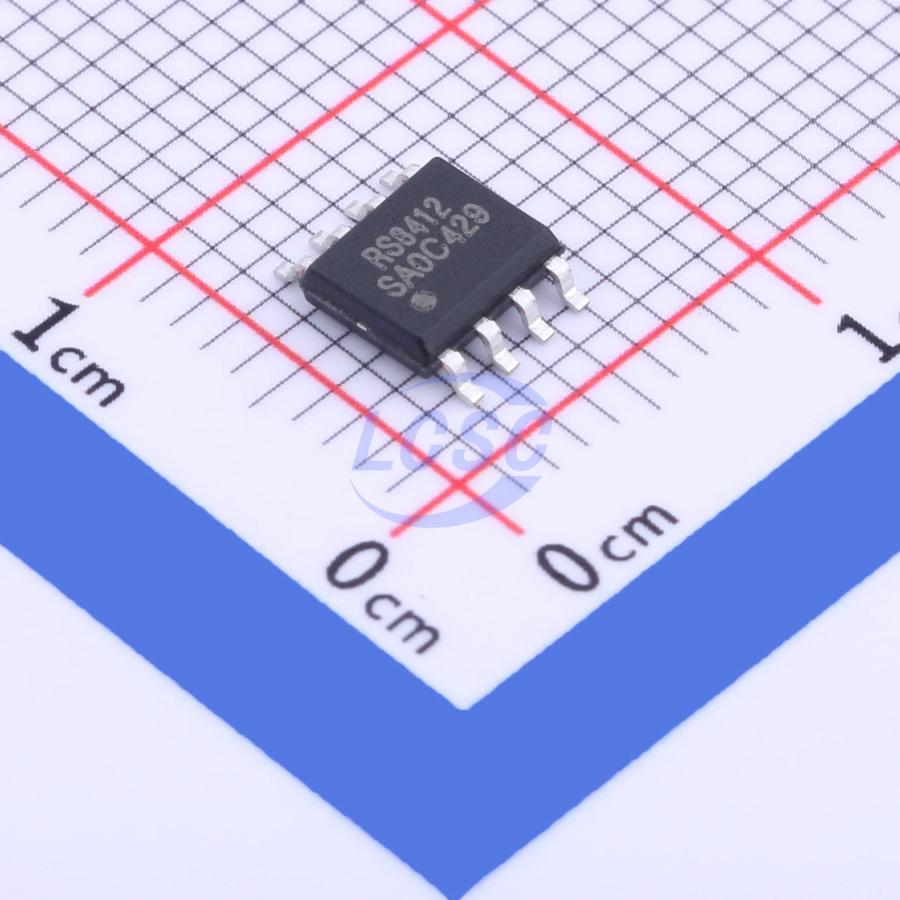

RUNIC

RS8412XK

70mA 2 800uV 670V/ms 110dB 10pA 100uA 1.2MHz Rail-to-rail output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOP-8ROHS3 CompliantActive

36V, 1.2MHz Rail-to-Rail Output CMos Operational Amplifier

Manufacturer: RUNIC
Manufacturer part #: RS8412XK
Store part #: C2762302
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10,620 in stock

#C2762302

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹38.91	₹194.55
50+	₹29.05	₹1,452.50
150+	₹24.83	₹3,724.50
500+	₹19.57	₹9,785.00

Quantity (min 5, multiples of 5)

5 × ₹38.91

₹194.55

excl. GST

₹229.57 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS8412XK

₹194.55 for 5 + GST

Specifications

Output Current: 70mA
Number of Channels: 2
Vos - Input Offset Voltage: 800uV
Slew Rate: 670V/ms
Input Offset Current(Ios): 60pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 110dB
Ib - Input Bias Current: 10pA
Input Offset Voltage Drift(Vos TC): 3uV/℃
Quiescent Current: 100uA
Gain Bandwidth Product: 1.2MHz
Features: Built-in compensation
Dual Supply: -18V~-1.5V;1.5V~18V
Rail to Rail: Rail-to-rail output
Single Supply: 3V~36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.14 g

Overview

The RS841X families of products offer high voltage (36V) operation and rail-to-rail output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (1.2MHz) and slew rate of 0.67V/us. The op-amps are unity gain stable and feature an ultralow input bias current. The devices are stable at capacitance up to 300pF. The input can operate normally within 100mV below of the negative power rail to 2V below of the positive power rail. The RS841X families of operational amplifiers are specified at the full temperature range of -40°C to +125°C under single power supplies of 3V to 36V or dual power supplies of ±1.5V to ±18V.

Applications

SENSORS
PHOTODIODE AMPLIFICATION
ACTIVE FILTERS
TEST EQUIPMENT DRIVING A/D CONVERTERS

Key features

HIGH GAIN BANDWIDTH: 1.2MHz
INPUT OFFSET VOLTAGE: ±0.8mV (Typical)
QUIESCENT CURRENT: 100uA/Amp
Rail to Rail Output Common-Mode Input Voltage Range Include Ground
Supply Range: +3V to ±36V
SPECIFIED UP TO ±125°C
Micro SIZE PACKAGES: SOT23-5
