RUNIC

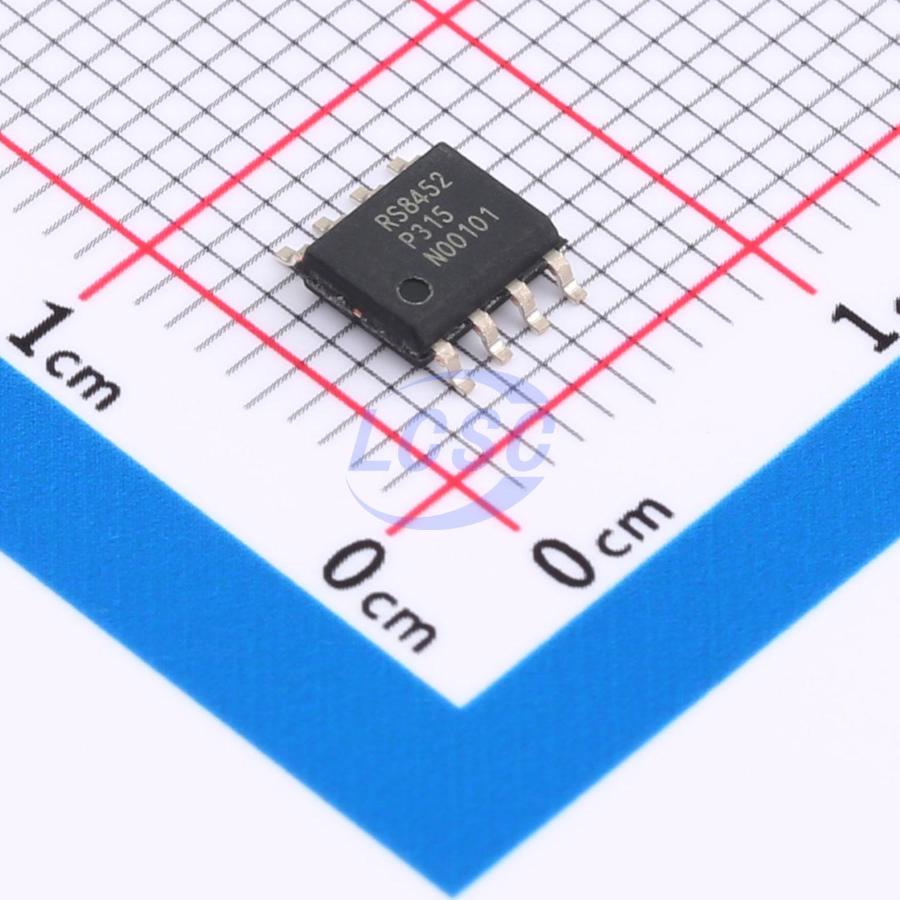

RS8452XK-Q1

150mA 2 800uV 5V/us 10pA 110dB 2.75mA 8MHz Rail-to-rail output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS CompliantActive

32V, 8MHz Rail-to-Rail Output CMos Operational Amplifier

Manufacturer: RUNIC
Manufacturer part #: RS8452XK-Q1
Store part #: C7570379
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,068 in stock

#C7570379

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹64.89	₹64.89
10+	₹48.41	₹484.10
30+	₹41.46	₹1,243.80
100+	₹32.56	₹3,256.00

Quantity (min 1)

1 × ₹64.89

₹64.89

excl. GST

₹76.57 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS8452XK-Q1

₹64.89 for 1 + GST

Specifications

Output Current: 150mA
Number of Channels: 2
Vos - Input Offset Voltage: 800uV
Slew Rate: 5V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 10pA
Common Mode Rejection Ratio(CMRR): 110dB
Input Offset Voltage Drift(Vos TC): 5uV/℃
Quiescent Current: 2.75mA
Gain Bandwidth Product: 8MHz
Features: ESD protection
Input Voltage Noise Density: 35nV/√Hz@1kHz
Dual Supply: 2.5V~16V;-16V~-2.5V
Rail to Rail: Rail-to-rail output
Single Supply: 5V~32V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.459 g

Overview

The RS845X-Q1 families of products offer high voltage (32V) operation and rail-to-rail output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (8MHz) and slew rate of 5V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The input can operate normally within the negative power rail to 2V below of the positive power rail. The RS845X-Q1 families of operational amplifiers are specified at the full temperature range of -40°C to +125°C under single power supplies of 5V to 32V or dual power supplies of ±2.5V to ±16V.

Applications

SENSORS
PHOTODIODE AMPLIFICATION
ACTIVE FILTERS
TEST EQUIPMENT
DRIVING A/D CONVERTERS

Key features

Qualified for Automotive Applications
AEC-Q100 Qualified with the Grade 1
HIGH GAIN BANDWIDTH: 8MHz
INPUT OFFSET VOLTAGE: ±0.8mV (Typical)
QUIESCENT CURRENT: 2.75mA/Amp
Rail to Rail Output
Supply Range: +5V to +32V
SPECIFIED UP TO ±125°C
Micro SIZE PACKAGES: SOIC-8(SOP8)

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
RS8452XK#C2762307RUNIC · SOP-8	RUNIC	SOP-8	1,805	₹56.16 · 1,805 in stock	View
RS8452PXK#C5372630RUNIC · SOIC-8	RUNIC	SOIC-8	705	₹55.70 · 705 in stock	View
RS8462PXK#C5372633RUNIC · SOIC-8	RUNIC	SOIC-8	1,385	₹48.24 · 1,385 in stock	View
RS722PXK#C2764998RUNIC · SOP-8	RUNIC	SOP-8	3,672	₹86.44 · 3,672 in stock	View
RS8702XK#C5372652RUNIC · SOIC-8	RUNIC	SOIC-8	3,530	₹161.54 · 3,530 in stock	View
