RUNICDatasheet (PDF)

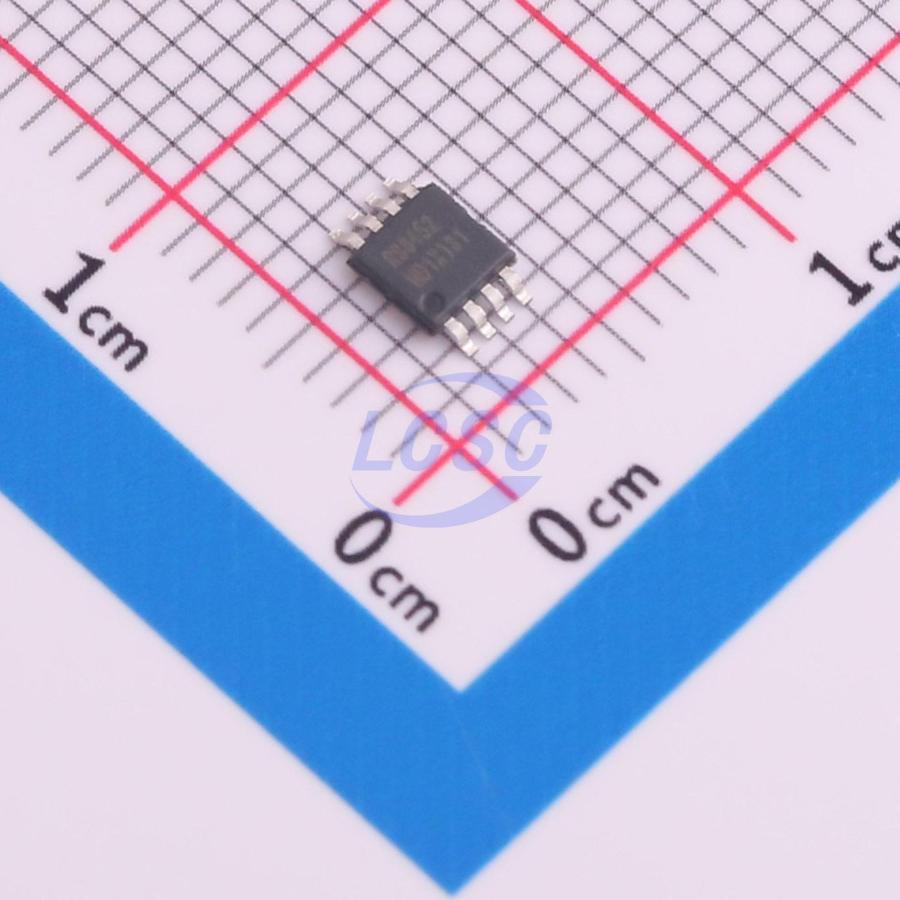

RS8452XM
100mA 2 500uV 5V/us 60pA 110dB 5.75mA 8MHz Rail-to-rail output MSOP-8 Instrumentation, Op Amps, Buffer Amps
MSOP-8RoHSActive
Rail-to-Rail Output CMos Operational Amplifier
- Manufacturer
- RUNIC
- Manufacturer part #
- RS8452XM
- Store part #
- C5372631
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,640 in stock
#C5372631
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹53.08 | ₹265.40 |
| 50+ | ₹39.76 | ₹1,988.00 |
| 150+ | ₹34.03 | ₹5,104.50 |
| 500+ | ₹26.65 | ₹13,325.00 |
5 × ₹53.08
₹265.40
excl. GST
₹313.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS8452XM
₹265.40 for 5 + GST
Specifications
- Output Current
- 100mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 5V/us
- Input Offset Current(Ios)
- 60pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 60pA
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Quiescent Current
- 5.75mA
- Gain Bandwidth Product
- 8MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 35nV/√Hz@1kHz
- Rail to Rail
- Rail-to-rail output
- Dual Supply
- 2.5V~18V;-18V~-2.5V
- Single Supply
- 5V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.074 g
Overview
The RS845X families of products offer high voltage (36V) operation and rail-to-rail output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (8MHz) and slew rate of 5V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The input can operate normally within the negative power rail to 2V below of the positive power rail. The RS845X families of operational amplifiers are specified at the full temperature range of -40°C to +125°C under single power supplies of 5V to 36V or dual power supplies of ±2.5V to ±18V.
Applications
- SENSORS
- PHOTODIODE AMPLIFICATION
- ACTIVE FILTERS
- TEST EQUIPMENT
- DRIVING A/D CONVERTERS
Key features
- HIGH GAIN BANDWIDTH: 8MHz
- INPUT OFFSET VOLTAGE: ±0.5mV (Typical)
- QUIESCENT CURRENT: 3mA/Amp
- Rail to Rail Output
- Supply Range: +5V to ±36V
- SPECIFIED UP TO +125°C
- Micro SIZE PACKAGES: SOP8, MSOP8, SOP14, TSSOP14
