RUNICDatasheet (PDF)

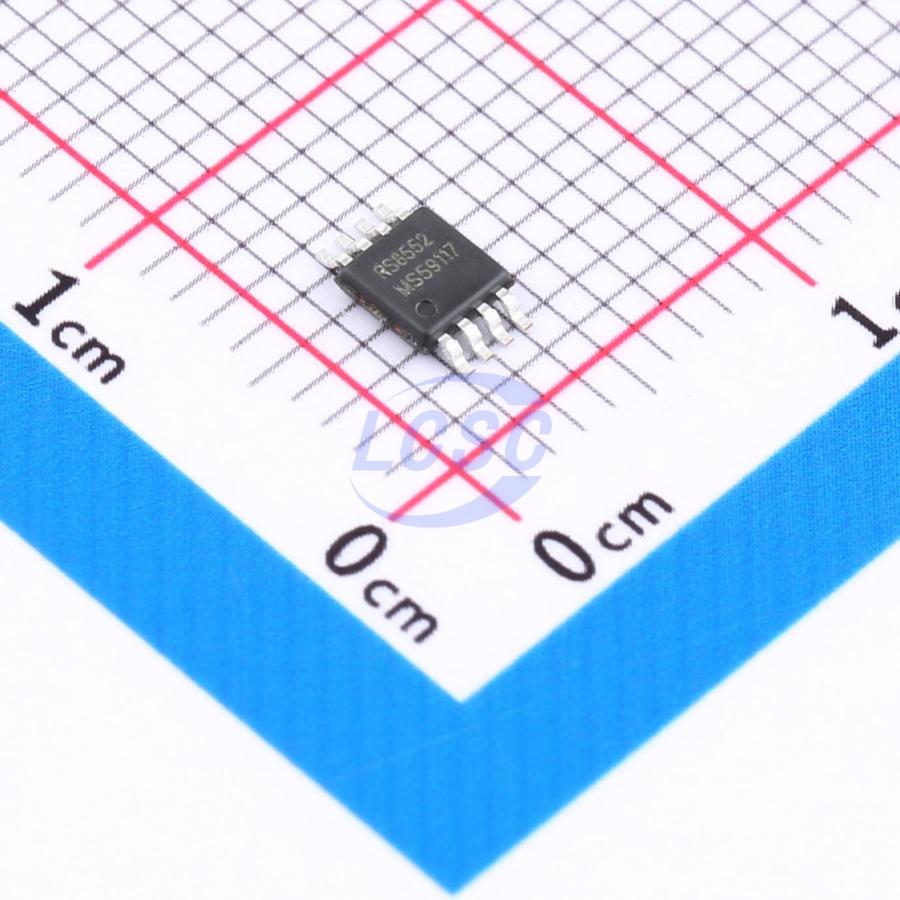

RS8552XM
50mA 2 1uV 2.5V/us 130dB 50pA 640uA 4.5MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps
MSOP-8RoHSActive
Zero-Drift, Rail-to-Rail I/O CMOS Operational Amplifiers
- Manufacturer
- RUNIC
- Manufacturer part #
- RS8552XM
- Store part #
- C236998
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22,053 in stock
#C236998
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹113.57 | ₹113.57 |
| 10+ | ₹90.72 | ₹907.20 |
| 30+ | ₹74.78 | ₹2,243.40 |
| 100+ | ₹61.64 | ₹6,164.00 |
| 500+ | ₹59.91 | ₹29,955.00 |
| 1,000+ | ₹57.33 | ₹57,330.00 |
1 × ₹113.57
₹113.57
excl. GST
₹134.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS8552XM
₹113.57 for 1 + GST
Specifications
- Output Current
- 50mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 1uV
- Slew Rate
- 2.5V/us
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 130dB
- Ib - Input Bias Current
- 50pA
- Input Offset Voltage Drift(Vos TC)
- 5nV/℃
- Quiescent Current
- 640uA
- Gain Bandwidth Product
- 4.5MHz
- Features
- Zero drift / auto-zero
- Input Voltage Noise Density
- 35nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.35V;1.35V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.1 g
Overview
The RS8551, RS8552, RS8554, RS8553 (dual version & shutdown) series of CMOS operational amplifiers use auto-zero techniques to simultaneously provide very low offset voltage (5μV max) and near-zero drift over time and temperature. This family of amplifiers has ultralow noise, offset and power. This miniature, high-precision operational amplifiers offset high input impedance and rail-to-rail input and rail-to-rail output swing. With high gain-bandwidth product of 4.5MHz and slew rate of 2.7V/μs. Single or dual supplies as low as +2.7V (±1.35V) and up to +5.5V (±2.75V) may be used.
Applications
- Temperature Sensors
- Medical/Industrial Instrumentation
- Pressure Sensors
- Battery-Powered Instrumentation
- Active Filtering
- Weight Scale Sensor
- Strain Gage Amplifiers
- Power Converter/Inverter
Key features
- Low Offset Voltage: 1μV
- Input Offset Drift: 0.005μV/°C
- High Gain Bandwidth Product: 4.5MHz
- Rail-to-Rail Input and Output
- High Gain, CMRR, PSRR: 130dB
- High Slew Rate: 2.7V/μs
- Low Noise: 0.75μVp-p (0.01 ~ 10Hz)
- Low Power Consumption: 640μA/op amp
- Overload Recovery Time: 1μs
- Low Supply Voltage: +2.7V to +5.5V
- No External Capacitors Required
- Extended Temperature: -40°C to +125°C
