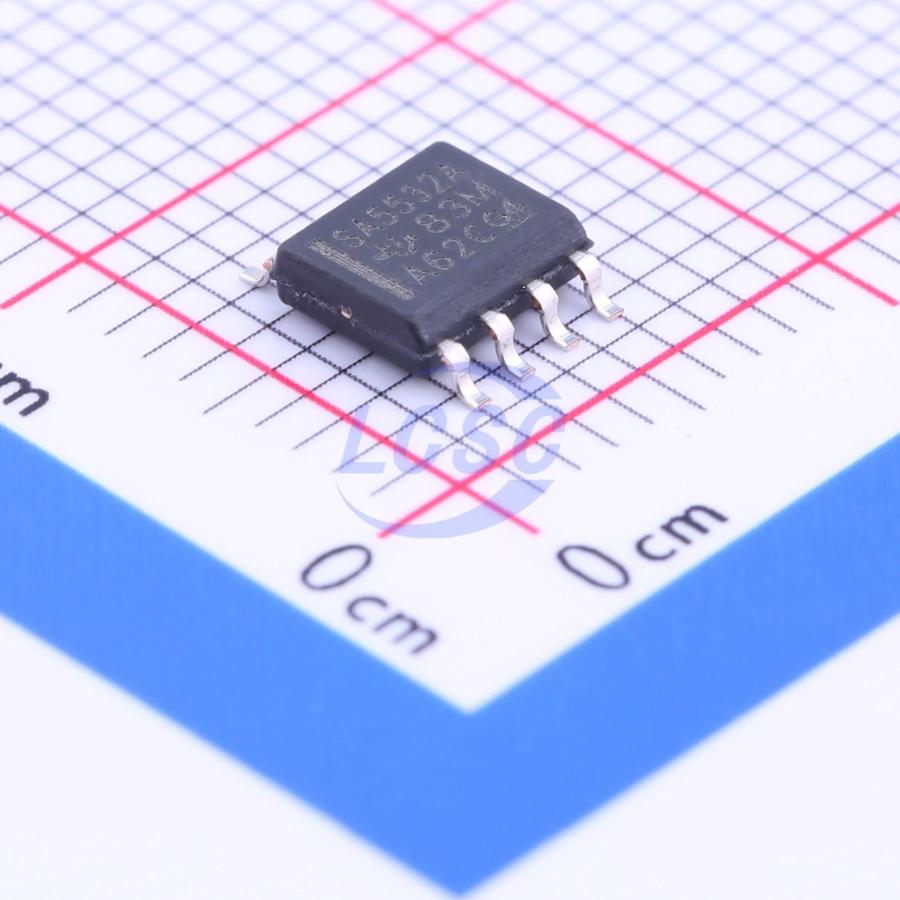

SA5532ADR
38mA 2 5mV 9V/us 100dB 1uA 16mA 10MHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Dual Low-Noise Operational Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- SA5532ADR
- Store part #
- C83716
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,126 in stock
#C83716
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.59 | ₹67.59 |
| 10+ | ₹53.46 | ₹534.60 |
| 30+ | ₹47.38 | ₹1,421.40 |
| 100+ | ₹39.77 | ₹3,977.00 |
| 500+ | ₹36.51 | ₹18,255.00 |
| 1,000+ | ₹31.30 | ₹31,300.00 |
1 × ₹67.59
₹67.59
excl. GST
₹79.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SA5532ADR
₹67.59 for 1 + GST
Specifications
- Output Current
- 38mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 9V/us
- Input Offset Current(Ios)
- 150nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 1uA
- Quiescent Current
- 16mA
- Gain Bandwidth Product
- 10MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 5nV/√Hz@1kHz
- Dual Supply
- 5V~15V;-15V~-5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.173 g
Overview
The NE5532, NE5532A, SA5532, and SA5532A devices are high-performance operational amplifiers combining excellent DC and AC characteristics. They feature very low noise, high output-drive capability, high unity-gain and maximum-output-swing bandwidths, low distortion, high slew rate, inputprotection diodes, and output short-circuit protection. These operational amplifiers are compensated internally for unity-gain operation. These devices have specified maximum limits for equivalent input noise voltage.
Applications
- AV Receivers
- Embedded PCs
- Netbooks
- Video Broadcasting and Infrastructure: Scalable Platforms
- DVD Recorders and Players
- Multichannel Video Transcoders
- Pro Audio Mixers
Key features
- Equivalent Input Noise Voltage: 5 nV/√Hz Typ at 1 kHz
- Unity-Gain Bandwidth: 10 MHz Typ
- Common-Mode Rejection Ratio: 100 dB Typ
- High DC Voltage Gain: 100 V/mV Typ
- Peak-to-Peak Output Voltage Swing 26 V Typ
- High Slew Rate: ϑ V/μs Typ
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT5532ARZ#C2886399HTCSEMI · SOP-8 | HTCSEMI | SOP-8 | 352 | ₹45.03 · 352 in stock | View |
 | HX5532-S#C41399181ZHHXDZ · SOP-8 | ZHHXDZ | SOP-8 | 815 | ₹12.91 · 815 in stock | View |
 | COS5532SRB#C5241965COSINE · SOP-8 | COSINE | SOP-8 | 205 | ₹16.03 · 205 in stock | View |
 | COS5532SR#C693059COSINE · SOP-8 | COSINE | SOP-8 | 4,200 | ₹18.10 · 4,200 in stock | View |
 | XL5532#C707120XINLUDA · SOIC-8 | XINLUDA | SOIC-8 | 1,990 | ₹17.05 · 1,990 in stock | View |
