SGMICRO

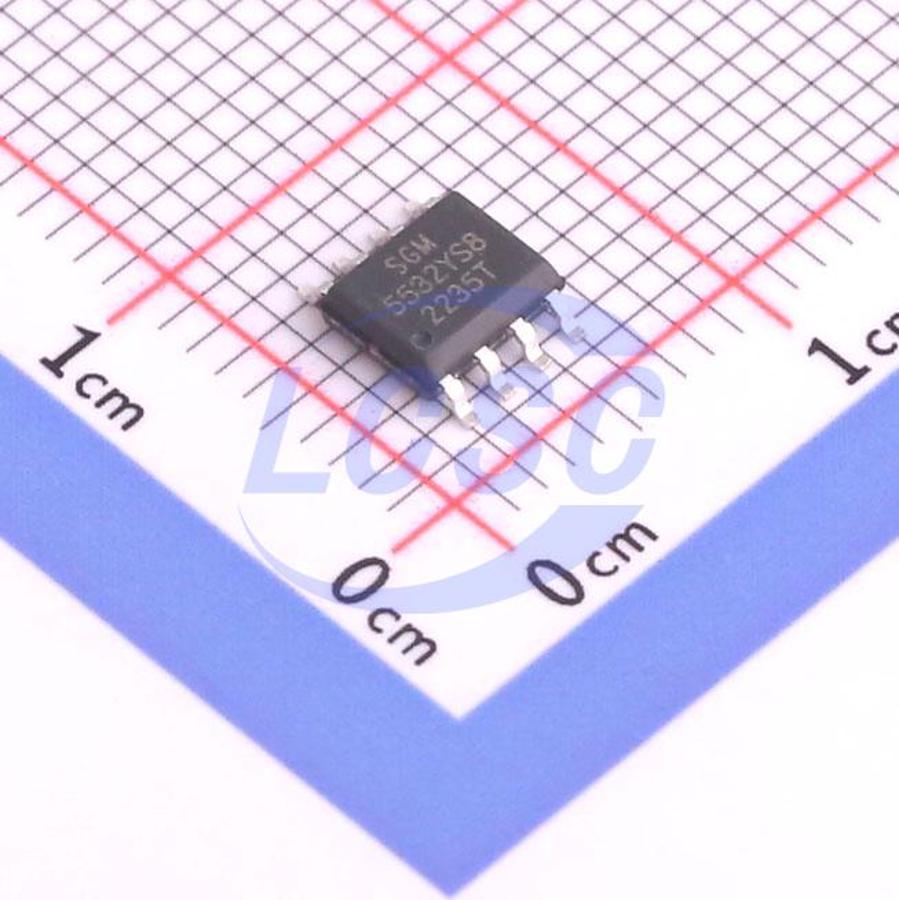

SGM5532YS8G/TR

36mA 2 500uV 18V/us 550nA 140dB 8.5mA 20MHz SOIC-8 Instrumentation, Op Amps, Buffer Amps

SOIC-8RoHSActive

Manufacturer: SGMICRO
Manufacturer part #: SGM5532YS8G/TR
Store part #: C700139
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,105 in stock

#C700139

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹104.73	₹104.73
10+	₹80.44	₹804.40
30+	₹68.31	₹2,049.30
100+	₹56.37	₹5,637.00

Quantity (min 1)

1 × ₹104.73

₹104.73

excl. GST

₹123.58 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

SGM5532YS8G/TR

₹104.73 for 1 + GST

Specifications

Output Current: 36mA
Number of Channels: 2
Vos - Input Offset Voltage: 500uV
Slew Rate: 18V/us
Input Offset Current(Ios): 10nA
Operating Temperature: -40℃~+85℃
Ib - Input Bias Current: 550nA
Common Mode Rejection Ratio(CMRR): 140dB
Input Offset Voltage Drift(Vos TC): 600nV/℃
Quiescent Current: 8.5mA
Gain Bandwidth Product: 20MHz
Features: Built-in compensation
Input Voltage Noise Density: 5nV/√Hz@1kHz

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.08 g

Overview

The SGM5532 is a high-performance operational amplifier combining excellent DC and AC characteristics. It features very low noise, high output-drive capability, high unity-gain and maximum output-swing bandwidths, low distortion, high slew rate, input protection diodes and output short-circuit protection. The operational amplifier is compensated internally for unity-gain operation. The SGM5532 is available in a Green SOIC-8 package. It operates over an ambient temperature range of -40°C to +85°C.

Applications

AV Receivers
Embedded PCs
Netbooks
Video Broadcasting and Infrastructure: Scalable Platforms
DVD Recorders and Players
Multichannel Video Transcoders
Pro Audio Mixers

Key features

Equivalent Input Noise Voltage: 5nV/√Hz (TYP) at 1kHz
Unity-Gain Bandwidth: 8.5MHz (TYP)
Common Mode Rejection Ratio: 140dB (TYP)
High DC Voltage Gain: 140dB (TYP)
High Slew Rate: 18V/μs (TYP)
-40°C to +85°C Operating Temperature Range
Available in a Green SOIC-8 Package

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
SGM8052XS/TR#C91288SGMICRO · SOIC-8	SGMICRO	SOIC-8	2,633	₹200.34 · 2,633 in stock	View
SGM8302YS8G/TR#C699998SGMICRO · SOIC-8	SGMICRO	SOIC-8	On request	Price on request	Quote
SGM8965A-2XS8G/TR#C700185SGMICRO · SOIC-8	SGMICRO	SOIC-8	On request	Price on request	Quote
SGM8969-2XS8G/TR#C700132SGMICRO · SOIC-8	SGMICRO	SOIC-8	On request	Price on request	Quote
SGM8652XS/TR#C5141454SGMICRO · SOIC-8	SGMICRO	SOIC-8	On request	Price on request	Quote
