SGMICRO

SGM8051XN5/TR

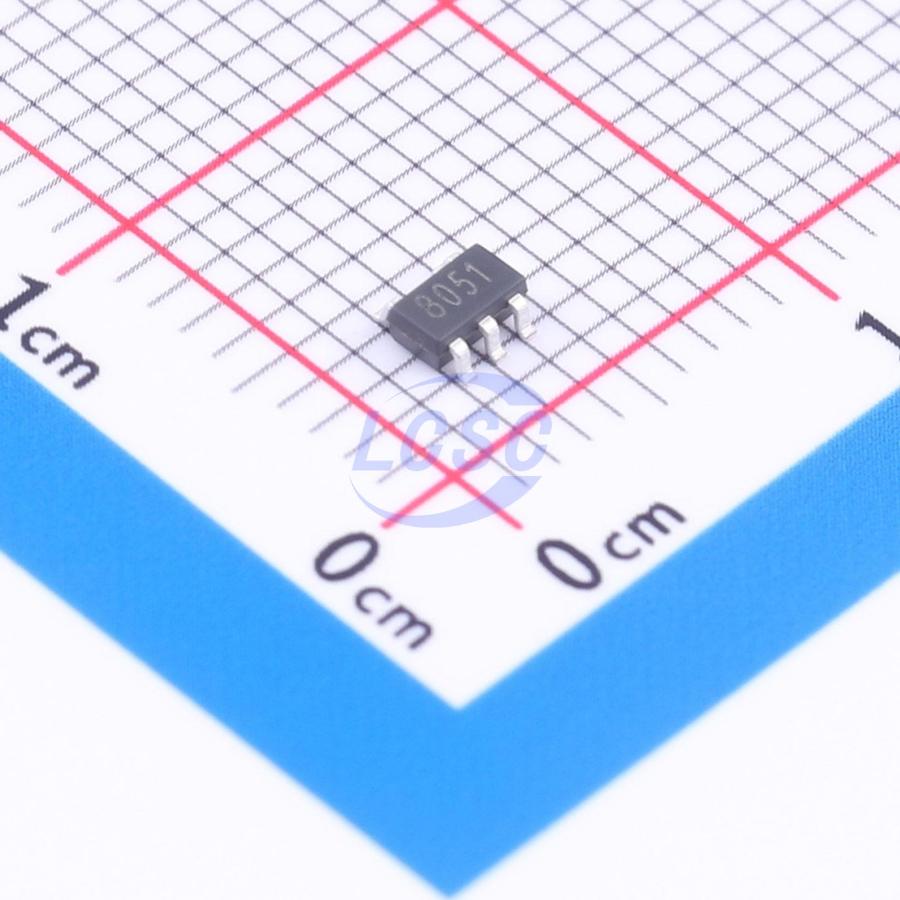

130mA 1 2mV 130V/us 80dB 6pA 120MHz 2.3mA Rail-to-rail output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

Manufacturer: SGMICRO
Manufacturer part #: SGM8051XN5/TR
Store part #: C5122371
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

906 in stock

#C5122371

Stock & price checked 43 h ago

Quantity	Unit price	Pack price
1+	₹130.54	₹130.54
10+	₹100.28	₹1,002.80
30+	₹85.16	₹2,554.80
100+	₹70.24	₹7,024.00

Quantity (min 1)

1 × ₹130.54

₹130.54

excl. GST

₹154.04 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SGM8051XN5/TR

₹130.54 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 130mA
Number of Channels: 1
Vos - Input Offset Voltage: 2mV
Slew Rate: 130V/us
Input Offset Current(Ios): 2pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 80dB
Ib - Input Bias Current: 6pA
Input Offset Voltage Drift(Vos TC): 4.4uV/℃
Gain Bandwidth Product: 120MHz
Quiescent Current: 2.3mA
Input Voltage Noise Density: 8.1nV/√Hz@1MHz
Rail to Rail: Rail-to-rail output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.04 g

Overview

The SGM8051/3 (single), SGM8052/5 (dual), and SGM8054 (quad) are low-cost, high-speed, voltage feedback op amps. These devices operate from 2.5V to 5.5V single supply with quiescent current as low as 2.3mA per amplifier. In addition, the SGM8053/5 draws only 75μA per amplifier supply current in shutdown mode, making them suitable for battery-powered and portable devices requiring low power consumption. The SGM8051/2/3/4/5 provide a wide input common-mode voltage range and rail-to-rail output voltage swing. These devices are designed to deliver comprehensively optimized performance, featuring 250MHz (G = +1) wide bandwidth and 0.1dB gain flatness at 37MHz (G = +2). Short settling time and low distortion make them ideal as buffers for high-speed ADCs and DACs. The SGM8051 is available in green SOT-23-5 and SOIC-8 packages. The SGM8052 is available in green SOIC-8 and MSOP-8 packages. The SGM8053 is available in green SOT-23-6 and SOIC-8 packages. The SGM8054 is available in green SOIC-14 and TSSOP-14 packages. The SGM8055 is available in a green MSOP-10 package. The operating temperature range is -40°C to +125°C.

Applications

Professional Video
Photodiode Preamplifier
ADC
Filter
Imaging

Key features

Low cost
High speed: -3dB bandwidth (G = +1) of 250MHz; slew rate of 130V/μs; settling time to 0.1% for a 2V step of 58ns
Excellent video performance (RL = 150Ω, G = +2): 0.1dB gain flatness of 37MHz; differential gain error of 0.03%; differential phase error of 0.08°
Input offset voltage: 8mV (maximum)
Input voltage range: -0.2V to 3.8V at Vs = 5V
Rail-to-rail output
Supply voltage range: 2.5V to 5.5V
Low supply current: typical 2.3mA/amplifier; shutdown current of 75μA/amplifier for SGM8053/5
Operating temperature range: -40°C to +125°C
Small package: SGM8051 in green SOT-23-5 and SOIC-8 packages; SGM8052 in green MSOP-8 and SOIC-8 packages; SGM8053 in green SOT-23-6 and SOIC-8 packages; SGM8054 in green TSSOP-14 and SOIC-14 packages; SGM8055 in green MSOP-10 package
