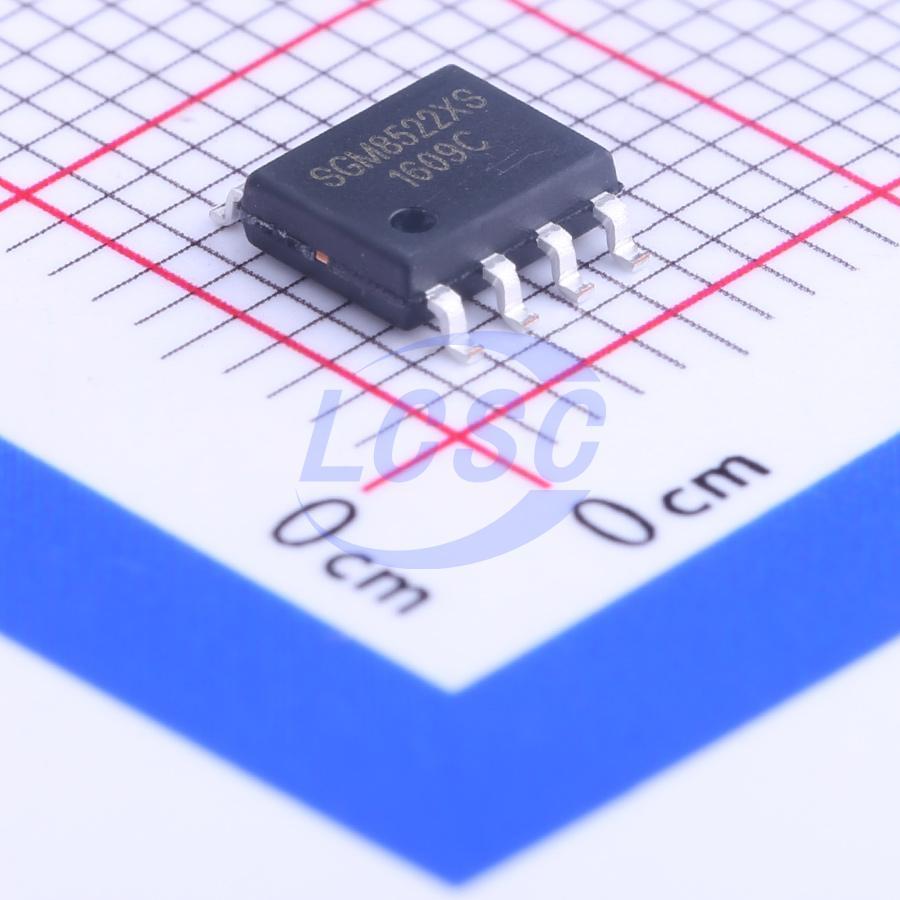

SGM8522XS/TR

87mA 2 3.5mV 50V/ms 3pA 114dB 150kHz 5.5uA Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Instrumentation, Op Amps, Buffer Amps

SOIC-8RoHSActive

Manufacturer: SGMICRO
Manufacturer part #: SGM8522XS/TR
Store part #: C46076
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,619 in stock

#C46076

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹173.46	₹173.46
10+	₹137.04	₹1,370.40
30+	₹118.82	₹3,564.60
100+	₹100.83	₹10,083.00
500+	₹89.99	₹44,995.00
1,000+	₹84.34	₹84,340.00

Quantity (min 1)

1 × ₹173.46

₹173.46

excl. GST

₹204.68 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SGM8522XS/TR

₹173.46 for 1 + GST

Specifications

Output Current: 87mA
Number of Channels: 2
Vos - Input Offset Voltage: 3.5mV
Slew Rate: 50V/ms
Input Offset Current(Ios): 3pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 3pA
Common Mode Rejection Ratio(CMRR): 114dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Gain Bandwidth Product: 150kHz
Quiescent Current: 5.5uA
Features: Built-in compensation
Input Voltage Noise Density: 85nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.197 g

Overview

The SGM8521 (single), SGM8522 (dual), and SGM8524 (quad) are low-cost voltage feedback amplifiers. These devices operate from a 2.1V to 5.5V single supply, consuming only 5.5μA quiescent current per amplifier. They feature rail-to-rail inputs with a wide common-mode input voltage range and rail-to-rail output voltage swing. This makes the SGM8521/2/4 well-suited for buffering ASICs. The SGM8521/2/4 offer a gain bandwidth product of 150kHz and an ultralow input bias current of only 3pA. They are ideal for piezoelectric sensors, integrators, and photodiode amplifiers. The SGM8521/2/4 are designed for a broad range of applications, including battery-powered instrumentation, security monitoring, portable systems, and sensor interface circuits in low-power systems. The SGM8521 is available in green SOT-23-5 and SOIC-8 packages. The SGM8522 is available in green SOIC-8 and MSOP-8 packages. The SGM8524 is available in green SOIC-14 and TSSOP-14 packages. All devices operate over a temperature range of -40°C to +125°C.

Applications

ASIC input or output amplifier
Piezoelectric sensor amplifier
Battery-powered devices
Portable devices
Sensor interface

Key features

Low cost
Input offset voltage: 3.5mV (max)
Unity-gain stable
Gain bandwidth product: 150kHz
Rail-to-rail input and output
Supply voltage range: 2.1V to 5.5V
Input voltage range: -0.1V to 5.6V when VS = 5.5V
Low supply current: 5.5μA/amplifier
Operating temperature range: -40°C to +125°C
Small package: SGM8521 available in green SOIC-8 and SOT-23-5 packages
SGM8522 available in green SOIC-8 and MSOP-8 packages
SGM8524 available in green SOIC-14 and TSSOP-14 packages
