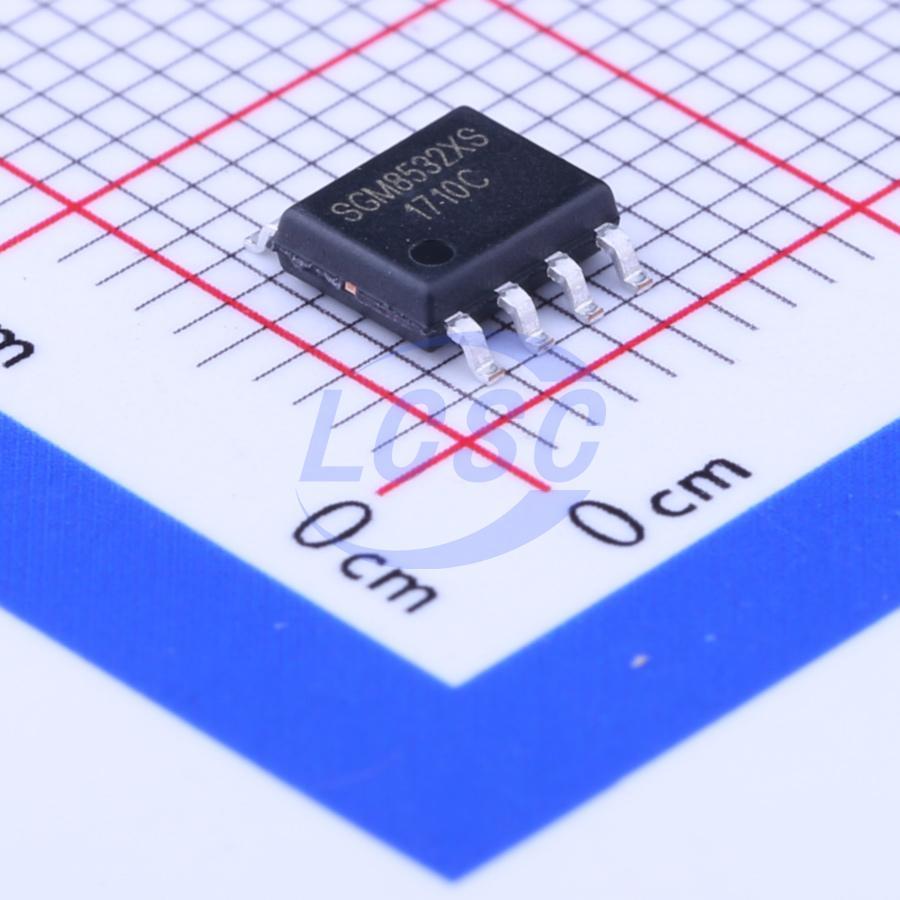

SGM8532XS/TR

85mA 2 5.4mV 200V/ms 0.5pA 88dB 500kHz 18uA Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Instrumentation, Op Amps, Buffer Amps

SOIC-8RoHSActive

500kHz, 18uA, Rail-to-Rail I/O, CMos Operational Amplifiers

Manufacturer: SGMICRO
Manufacturer part #: SGM8532XS/TR
Store part #: C98742
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,355 in stock

#C98742

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹150.25	₹150.25
10+	₹119.90	₹1,199.00
30+	₹103.21	₹3,096.30
100+	₹84.34	₹8,434.00

Quantity (min 1)

1 × ₹150.25

₹150.25

excl. GST

₹177.30 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SGM8532XS/TR

₹150.25 for 1 + GST

Specifications

Output Current: 85mA
Number of Channels: 2
Vos - Input Offset Voltage: 5.4mV
Slew Rate: 200V/ms
Input Offset Current(Ios): 0.5pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 0.5pA
Common Mode Rejection Ratio(CMRR): 88dB
Input Offset Voltage Drift(Vos TC): 1.7uV/℃
Gain Bandwidth Product: 500kHz
Quiescent Current: 18uA
Features: Built-in compensation
Input Voltage Noise Density: 33nV/√Hz@1kHz
Dual Supply: -1.05V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.197 g

Overview

The SGM8531 (single), SGM8532 (dual) and SGM8534 (quad) are low cost, rail-to-rail input and output voltage feedback amplifiers. They have a wide input common mode voltage range and output voltage swing, and take the minimum operating supply voltage down to 2.1V. The maximum recommended supply voltage is 5.5V. All are specified over the extended -40°C to +125°C temperature range. The SGM8531/2/4 provide 500kHz bandwidth at a low current consumption of 18μA per amplifier. Very low input bias currents of 0.5pA enable the SGM8531/2/4 to be used for integrators, photodiode amplifiers, and piezoelectric sensors. Rail-to-rail input and output are useful to designers for buffering ASIC in single-supply systems.

Applications

ASIC Input or Output Amplifier
Sensor Interface
Piezoelectric Transducer Amplifier
Medical Instrumentation
Mobile Communication
Audio Output
Portable Systems
Smoke Detectors
Mobile Telephone
Notebook PC
PCMCIA Cards
Battery-Powered Equipment

Key features

Low Cost
Rail-to-Rail Input and Output 0.8mV Typical Vos
Unity Gain Stable
Gain-Bandwidth Product: 500kHz
Very Low Input Bias Current: 0.5pA
Supply Voltage Range: 2.1V to 5.5V
Input Voltage Range: -0.1V to +5.68 with Vs = 5.5V
Low Supply Current: 18μA/Amplifier
