SGM722XS/TR

36mA 2 4mV 8.5V/us 1pA 60dB 1.1mA 11MHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-8-150mil Instrumentation, Op Amps, Buffer Amps

SOIC-8-150milRoHSActive

11MHz, Rail-to-Rail I/O CMOS Operational Amplifiers

Manufacturer: SGMICRO
Manufacturer part #: SGM722XS/TR
Store part #: C191966
Package / case: SOIC-8-150mil
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,214 in stock

#C191966

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹100.50	₹100.50
10+	₹77.16	₹771.60
30+	₹65.49	₹1,964.70
100+	₹54.03	₹5,403.00

Quantity (min 1)

1 × ₹100.50

₹100.50

excl. GST

₹118.59 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

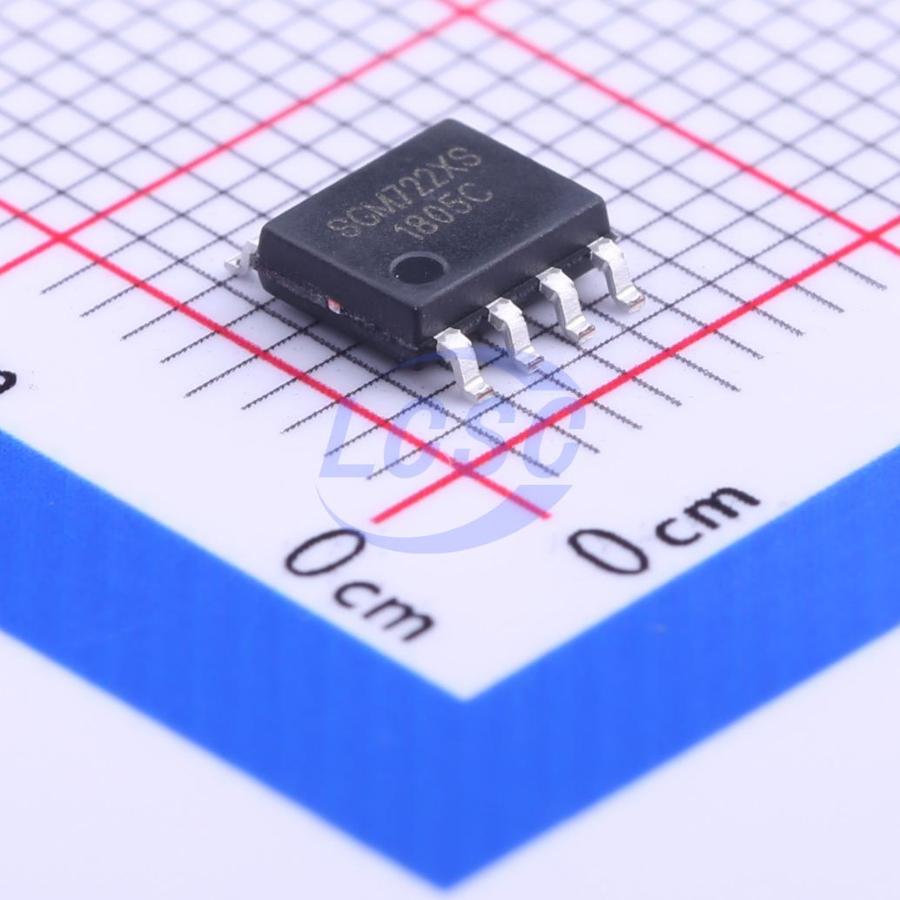

SGM722XS/TR

₹100.50 for 1 + GST

Specifications

Output Current: 36mA
Number of Channels: 2
Vos - Input Offset Voltage: 4mV
Slew Rate: 8.5V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 60dB
Input Offset Voltage Drift(Vos TC): 2.1uV/℃
Quiescent Current: 1.1mA
Gain Bandwidth Product: 11MHz
Input Voltage Noise Density: 8.5nV/√Hz@10kHz
Dual Supply: -2.75V~-1.05V;1.05V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.197 g

Overview

The SGM721 (single), SGM722 (dual), SGM723 (single with shutdown) and SGM724 (quad) are low noise, low voltage, and low power operational amplifiers, that can be designed into a wide range of applications. The SGM721/2/3/4 have a high gain - bandwidth product of 11MHz and a slew rate of 8.5V/μs. The SGM723 has a power - down disable feature that reduces the supply current to less than 1μA. The SGM721/2/3/4 are designed to provide optimal performance in low voltage and low noise systems. They provide rail - to - rail output swing into heavy loads. The input common mode voltage range includes ground, and the maximum input offset voltage is 4mV for SGM721/2/3/4. They are specified over the extended industrial temperature range (-40°C to +125°C). The operating supply range is from 2.1V to 5.5V. The single version, SGM721 is available in Green SC70 - 5, SOT - 23 - 5 and SOIC - 8 packages. SGM723 is available in Green SOT - 23 - 6 and SOIC - 8 packages. The dual version SGM722 is available in Green SOIC - 8, MSOP - 8 and TSSOP - 8 packages. The quad version SGM724 is available in Green SOIC - 14 and TSSOP - 14 packages.

Applications

Sensors
Audio
Active Filters
A/D Converters
Communications
Test Equipment
Cellular and Cordless Phones
Laptops and PDAs
Photodiode Amplification
Battery - Powered Instrumentation

Key features

Rail - to - Rail Input and Output
4mV Maximum Input Offset Voltage
High Gain - Bandwidth Product: 11MHz
High Slew Rate: 8.5V/μs
Settling Time to 0.1% with 2V Step: 0.21μs
Overload Recovery Time: 0.6μs
Low Noise: 8.5nV/√Hz at 10kHz
Supply Voltage Range: 2.1V to 5.5V
Input Voltage Range = - 0.1V to +5.68 with VS = 5.5V
Low Power SGM721/3: 1.2mA (TYP) SGM722/4: 1.1mA/Amplifier (TYP) SGM723 Less than 1μA when Disabled
Small Packaging SGM721 Available in Green SC70 - 5, SOT - 23 - 5 and SOIC - 8 Packages SGM722 Available in Green MSOP - 8, SOIC - 8 and TSSOP - 8 Packages SGM723 Available in Green SOT - 23 - 6 and SOIC - 8 Packages SGM724 Available in Green TSSOP - 14 and SOIC - 14 Packages
