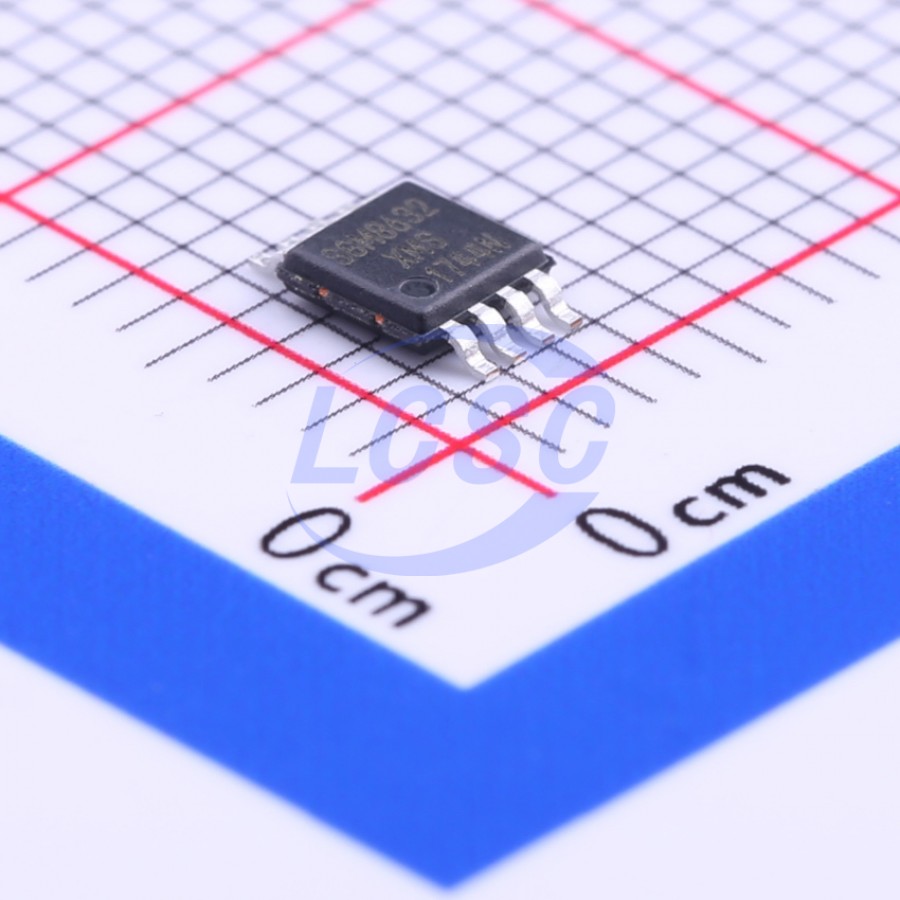

SGM8632XMS/TR

58mA 2 3.5mV 3.7V/us 1pA 68dB 480uA 9MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

MSOP-8ROHS CompliantActive

6MHz, Rail-to-Rail I/O CMOS Operational Amplifiers

Manufacturer: SGMICRO
Manufacturer part #: SGM8632XMS/TR
Store part #: C192002
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,417 in stock

#C192002

Stock & price checked 19 h ago

Quantity	Unit price	Pack price
1+	₹104.38	₹104.38
10+	₹80.19	₹801.90
30+	₹68.08	₹2,042.40
100+	₹56.20	₹5,620.00

Quantity (min 1)

1 × ₹104.38

₹104.38

excl. GST

₹123.17 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SGM8632XMS/TR

₹104.38 for 1 + GST

Specifications

Output Current: 58mA
Number of Channels: 2
Vos - Input Offset Voltage: 3.5mV
Slew Rate: 3.7V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 68dB
Input Offset Voltage Drift(Vos TC): 2.4uV/℃
Quiescent Current: 480uA
Gain Bandwidth Product: 9MHz
Input Voltage Noise Density: 13nV/√Hz@1kHz
Dual Supply: -2.75V~-1V;1V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.03 g

Overview

The SGM8631 (single), SGM8632 (dual) and SGM8633 (single with shutdown) are low noise, low voltage, and low power operational amplifiers that can be designed into a wide range of applications. The SGM8631/2/3 have a high gain-bandwidth product of 6MHz and a slew rate of 3.7V/μs. The SGM8633 has a power-down disable feature that reduces the supply current to less than 1μA. The SGM8631/2/3 are designed to provide optimal performance in low voltage and low noise systems. They provide rail-to-rail output swing into heavy loads. The input common mode voltage range includes ground, and the maximum input offset voltage is 3.5mV for SGM8631/2/3. They are specified over the extended industrial temperature range (-40°C to +125°C). The operating supply range is from 2V to 5.5V. The SGM8631 single is available in Green SC70-5, SOT-23-5 and SOIC-8 packages. The SGM8632 dual is available in Green SOIC-8 and MSOP-8 packages. The SGM8633 single with shutdown is available in Green SOT-23-6 and SOIC-8 packages.

Applications

Sensors
Audio
Active Filters
A/D Converters
Communications
Test Equipment
Cellular and Cordless Phones
Laptops and PDAs
Photodiode Amplification
Battery-Powered Instrumentation

Key features

Rail-to-Rail Input and Output 3.5mV Maximum VOS
High Gain-Bandwidth Product: 6MHz
High Slew Rate: 3.7V/μs
Settling Time to 0.1% with 2V Step: 0.5μs
Overload Recovery Time: 0.9μs
Low Noise: 13nV/√Hz at 1kHz
Supply Voltage Range: 2V to 5.5V
Input Voltage Range: -0.1V to +5.68V with VS = 5.5V
Low Supply Current
SGM8631/3: 570μA (TYP)
SGM8632: 480μA/Amplifier (TYP)
Less than 1μA Shutdown Current for SGM8633
Small Packaging
SGM8631 Available in Green SC70-5, SOT-23-5 and SOIC-8
SGM8632 Available in Green MSOP-8 and SOIC-8
SGM8633 Available in Green SOT-23-6 and SOIC-8
