SITDatasheet (PDF)

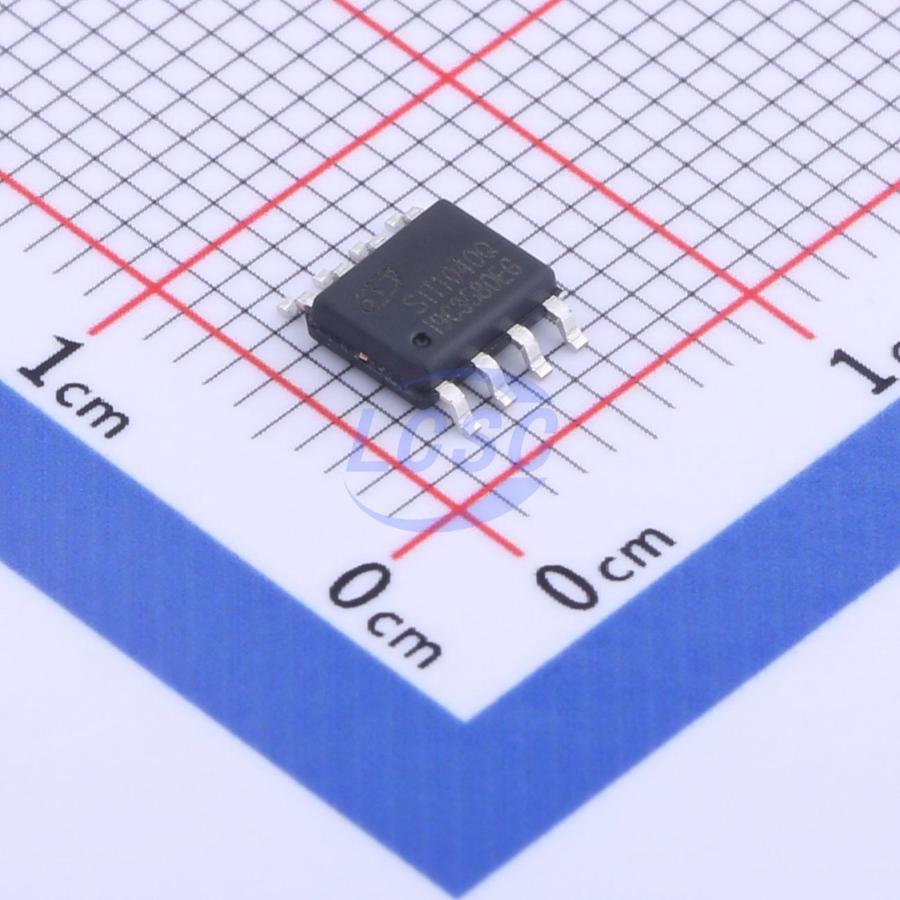

SIT1040QT
4.75V~5.25V CAN Transceiver 1Mbps SOP-8 Drivers, Receivers, Transceivers RoHS
SOP-8ROHS CompliantActive
SIT1040Q 5V Supply, ±40V Interface Voltage, 1Mbps High-Speed CAN Transceiver
- Manufacturer
- SIT
- Manufacturer part #
- SIT1040QT
- Store part #
- C2802044
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,224 in stock
#C2802044
Stock & price checked 20 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹74.52 | ₹74.52 |
| 10+ | ₹60.36 | ₹603.60 |
| 30+ | ₹54.35 | ₹1,630.50 |
| 100+ | ₹46.82 | ₹4,682.00 |
| 500+ | ₹40.81 | ₹20,405.00 |
| 1,000+ | ₹38.66 | ₹38,660.00 |
1 × ₹74.52
₹74.52
excl. GST
₹87.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SIT1040QT
₹74.52 for 1 + GST
Specifications
- Voltage - Supply
- 4.75V~5.25V
- Type
- CAN Transceiver
- number of channels
- 1
- Data Rate
- 1Mbps
- Operating Temperature
- -40℃~+125℃
- Features
- Low-power mode;Wake-up function;Short-Circuit Protection;Thermal shutdown protection;TXD dominant timeout;Enable
- Supply Current
- 38mA
- Quiescent Supply Current
- 12uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.19 g
Overview
The SIT1040Q is the interface between the Controller Area Network (CAN) protocol controller and the physical bus. It is primarily intended for high - speed applications, up to 1 MBaud, in passenger cars. The device provides differential transmit capability to the bus and differential receive capability to the CAN controller.
Key features
- Fully compatible with the ISO 11898 standard
- AEC - Q100 qualified
- Thermally protected
- Overcurrent protection function
- Transmit Data (TXD) dominant time - out function
- Very low - current standby mode with remote wake - up
- Capability via the bus: 5μA typical
- Transceiver in unpowered state disengages from the bus (zero load)
- At least 110 nodes can be connected
- High speed up to 1 MBaud
- Very low Electro Magnetic Emission (EME)
- Provide DFN3*3 - 8, small outline, leadless package
