SITDatasheet (PDF)

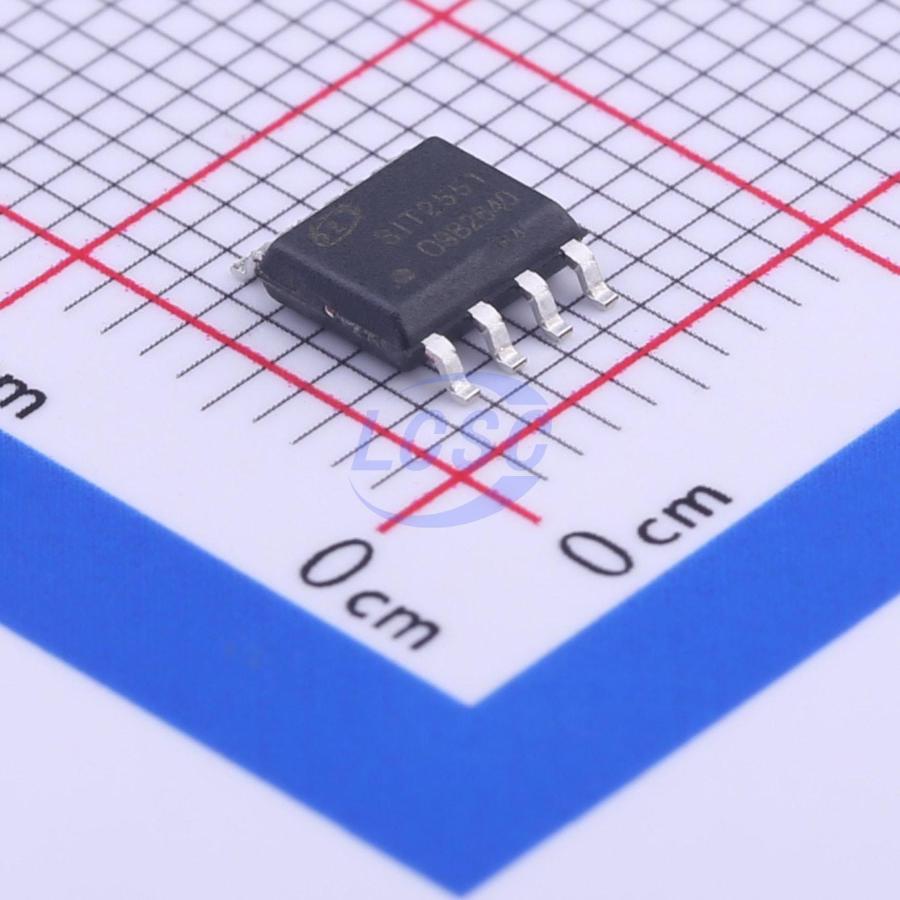

SIT2551T
4.5V~5.5V CAN Transceiver 1Mbps SOP-8 Drivers, Receivers, Transceivers RoHS
SOP-8ROHS CompliantActive
SIT2551 5V Supply, ±40V Interface Voltage Tolerance, 1Mbps High-Speed CAN Transceiver
- Manufacturer
- SIT
- Manufacturer part #
- SIT2551T
- Store part #
- C403912
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,364 in stock
#C403912
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹60.71 | ₹60.71 |
| 10+ | ₹48.42 | ₹484.20 |
| 30+ | ₹43.19 | ₹1,295.70 |
| 100+ | ₹36.67 | ₹3,667.00 |
| 500+ | ₹33.79 | ₹16,895.00 |
| 1,000+ | ₹31.98 | ₹31,980.00 |
1 × ₹60.71
₹60.71
excl. GST
₹71.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SIT2551T
₹60.71 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- CAN Transceiver
- number of channels
- 1
- Data Rate
- 1Mbps
- Operating Temperature
- -40℃~+125℃
- Features
- Low-power mode;Wake-up function;Short-Circuit Protection;Thermal shutdown protection;TXD dominant timeout
- Supply Current
- 70mA
- Quiescent Supply Current
- 12uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.098 g
Overview
SIT2551 is an interface chip designed for use between CAN protocol controllers and the physical bus. It is applicable to trucks, buses, passenger cars, industrial control, and other fields, supporting data rates up to 1Mbps. It features differential signal transmission capability between the bus and CAN protocol controllers, and is fully compliant with the ISO 11898 standard.
Applications
- Truck
- Bus
- Passenger Car
- Industrial Control
Key features
- Fully compliant with ISO 11898 standard
- Built-in over-temperature protection
- Over-current protection
- Dominant timeout function
- Low-current standby mode with bus wake-up (typical 5μA)
- Unpowered nodes do not disturb the bus
- Supports up to 110 nodes on the bus
- High-speed CAN, up to 1Mbps
- High EMI immunity
- Available in RoHS-compliant lead-free package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIT1040T#C381512SIT · SO-8 | SIT | SO-8 | 10,985 | ₹50.94 · 10,985 in stock | View |
 | SIT1050QT#C2802043SIT · SOP-8 | SIT | SOP-8 | 7,364 | ₹68.30 · 7,364 in stock | View |
 | SIT1040QT#C2802044SIT · SOP-8 | SIT | SOP-8 | 2,248 | ₹61.96 · 2,248 in stock | View |
 | SIT1051AQT#C5382547SIT · SOP-8 | SIT | SOP-8 | 2,053 | ₹58.92 · 2,053 in stock | View |
 | SIT1050T#C313021SIT · SO-8 | SIT | SO-8 | On request | Price on request | Quote |
