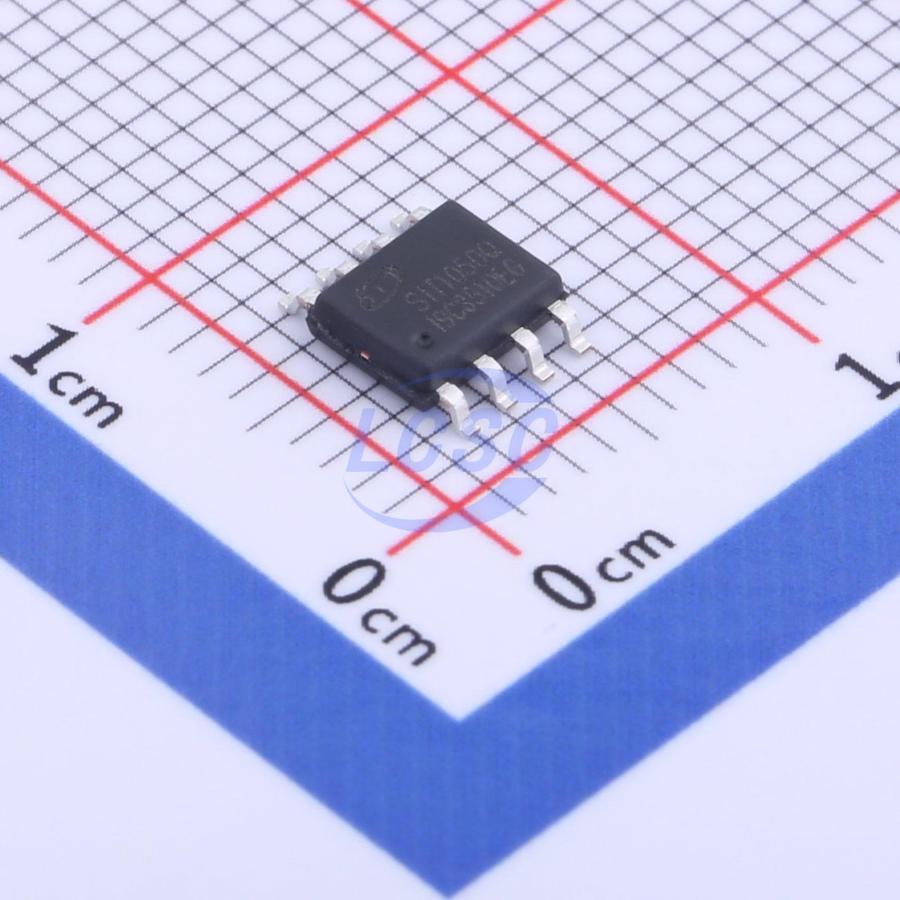

SIT1050QT
4.5V~5.5V CAN Transceiver 1Mbps SOP-8 Drivers, Receivers, Transceivers RoHS
SOP-8ROHS CompliantActive
High-speed CAN bus transceiver
- Manufacturer
- SIT
- Manufacturer part #
- SIT1050QT
- Store part #
- C2802043
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,364 in stock
#C2802043
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.15 | ₹82.15 |
| 10+ | ₹66.28 | ₹662.80 |
| 30+ | ₹59.32 | ₹1,779.60 |
| 100+ | ₹50.86 | ₹5,086.00 |
| 500+ | ₹43.90 | ₹21,950.00 |
| 1,000+ | ₹41.73 | ₹41,730.00 |
1 × ₹82.15
₹82.15
excl. GST
₹96.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SIT1050QT
₹82.15 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- CAN Transceiver
- number of channels
- 1
- Data Rate
- 1Mbps
- Operating Temperature
- -40℃~+125℃
- Features
- Short-Circuit Protection;Thermal shutdown protection;TXD dominant timeout;Silent mode;ESD protection
- Supply Current
- 70mA
- Quiescent Supply Current
- 10mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.073 g
Overview
The SIT1050Q is the interface between the Controller Area Network (CAN) protocol controller and the physical bus. It is primarily intended for high- speed applications, up to 1 Mbaud, in in- vehicle. The device provides differential transmit capability to the bus and differential receive capability to the CAN controller.
Key features
- Fully compatible with the ISO 11898 standard
- AEC-Q100 qualified
- Thermally protected
- Overcurrent protection function
- Transmit Data (TXD) dominant time-out function
- Silent mode in which the transmitter is disabled
- Transceiver in unpowered state disengages from the bus (zero load)
- At least 110 nodes can be connected
- High speed (up to 1 Mbaud)
- Very low Electro Magnetic Emission (EME)
- Available in leadless DFN3*3 - 8 package, with small shape
- Provide green and environmentally friendly lead-free package
