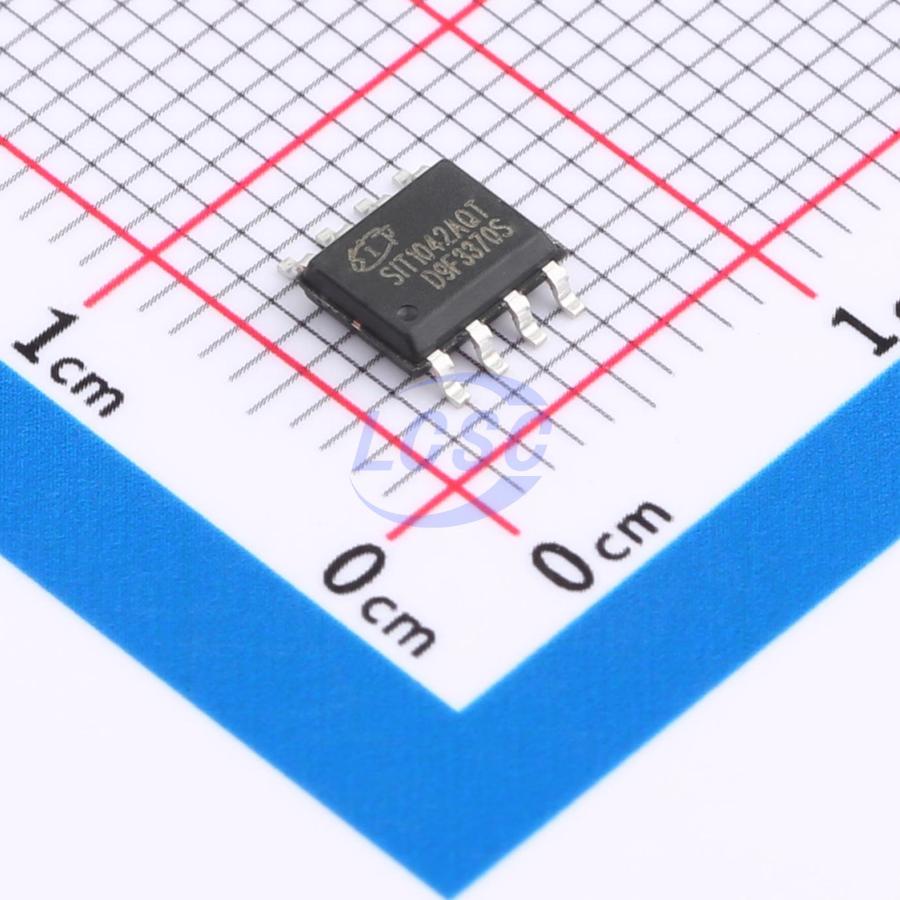

SIT1042AQT
4.5V~5.5V CAN FD Transceiver 5Mbps SOP-8 Drivers, Receivers, Transceivers RoHS
SOP-8ROHS CompliantActive
CAN FD standby mode bus transceiver with 5V power supply, I/O ports compatible with 3.3V, and ±58V bus voltage withstand capability
- Manufacturer
- SIT
- Manufacturer part #
- SIT1042AQT
- Store part #
- C5382541
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,749 in stock
#C5382541
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.79 | ₹71.79 |
| 10+ | ₹58.89 | ₹588.90 |
| 30+ | ₹53.30 | ₹1,599.00 |
| 100+ | ₹46.42 | ₹4,642.00 |
| 500+ | ₹43.20 | ₹21,600.00 |
| 1,000+ | ₹41.26 | ₹41,260.00 |
1 × ₹71.79
₹71.79
excl. GST
₹84.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SIT1042AQT
₹71.79 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- CAN FD Transceiver
- number of channels
- 1
- Data Rate
- 5Mbps
- Operating Temperature
- -40℃~+150℃
- Features
- Low-power mode;Wake-up function;SPI interface;Short-Circuit Protection;Thermal shutdown protection;Undervoltage Protection;Bus fault protection;TXD dominant timeout
- Supply Current
- 70mA
- Quiescent Supply Current
- 12uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.262 g
Overview
SIT1042AQ is an interface IC designed for use between a CAN protocol controller and the physical bus, suitable for automotive and industrial control applications. It supports 5Mbps CAN FD with flexible data rate and provides differential signal transmission between the bus and the CAN protocol controller. This device is an upgraded version of the SIT1042Q, featuring improved bus signal symmetry and lower EMI. In addition, the SIT1042AQ is fully compatible with the SIT1042Q.
Key features
- Compatible with ISO 11898 and SAE J2284-1 to SAE J2284-5 standards
- AEC-Q100 qualified
- Built-in overtemperature protection
- Bus pins rated for ±58V
- Driver (TXD) dominant timeout
- Standby bus (BUS) dominant timeout
- Low-power standby mode with wake-up capability
- I/O voltage range of SIT1042AQT/3, SIT1042AQT/31, SIT1042AQTK/3, and SIT1042AQTK/31 supports 3.3V and 5V MCU
- Undervoltage lockout on VCC and VIO supply pins
- High-speed CAN support up to 5Mbps CAN FD flexible data rate
- TXD to RXD typical loop delay less than 100ns
- High EMI immunity
- Unpowered node does not disturb the bus
- DFN 3×3–8 small leadless package support
