SITDatasheet (PDF)

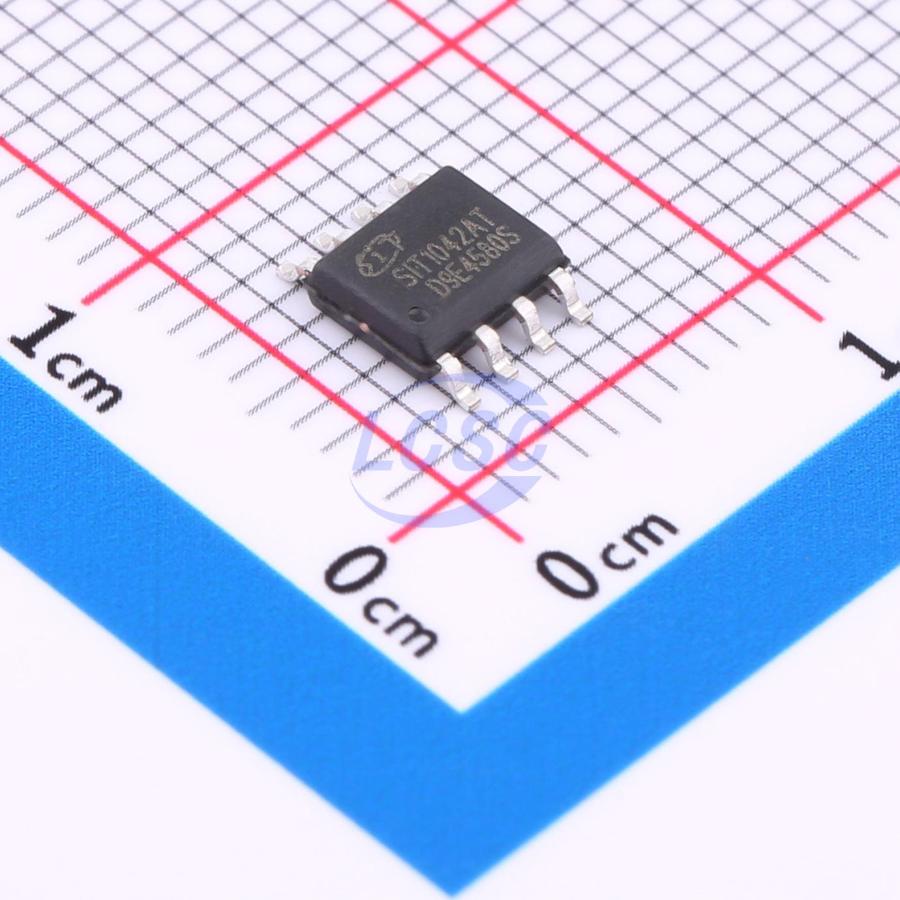

SIT1042AT
4.5V~5.5V CAN FD Transceiver 5Mbps SOP-8 Drivers, Receivers, Transceivers RoHS
SOP-8ROHS CompliantActive
SIT1042A CAN FD Standby Mode Bus Transceiver
- Manufacturer
- SIT
- Manufacturer part #
- SIT1042AT
- Store part #
- C5382544
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,404 in stock
#C5382544
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.61 | ₹61.61 |
| 10+ | ₹49.12 | ₹491.20 |
| 30+ | ₹43.95 | ₹1,318.50 |
| 100+ | ₹37.27 | ₹3,727.00 |
| 500+ | ₹34.25 | ₹17,125.00 |
| 1,000+ | ₹32.32 | ₹32,320.00 |
1 × ₹61.61
₹61.61
excl. GST
₹72.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SIT1042AT
₹61.61 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- CAN FD Transceiver
- number of channels
- 1
- Data Rate
- 5Mbps
- Operating Temperature
- -40℃~+150℃
- Features
- Low-power mode;Wake-up function;TXD dominant timeout;Thermal shutdown protection;Undervoltage Protection;Short-Circuit Protection;ESD protection
- Supply Current
- 70mA
- Quiescent Supply Current
- 20uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.506 g
Overview
SIT1042A is an interface IC designed for use between CAN protocol controllers and the physical bus, suitable for automotive, industrial control, and other applications. It supports 5Mbps flexible data rate CAN FD and provides differential signal transmission capability between the bus and the CAN protocol controller. The SIT1042A is an upgraded version of the SIT1042, featuring improved bus signal symmetry and lower EMI performance. In addition, the SIT1042A is fully compatible with the SIT1042.
Applications
- Automotive
- Industrial Control
Key features
- Fully compliant with ISO11898 standard
- Built-in overtemperature protection
- Bus port ±70V voltage tolerance
- Driver (TXD) dominant timeout
- Standby bus (BUS) dominant timeout
- Low-power standby mode with wake-up capability
- SIT1042AT/3 I/O voltage range supports 3.3V and 5V MCU
- Undervoltage protection on VCC and VIO supply pins
- High-speed CAN, supports 5Mbps CAN FD flexible data rate
- TXD to RXD typical loop delay less than 100ns
- High EMI immunity
- Unpowered node does not disturb the bus
- Supports DFN3×3-8 small-outline, leadless package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIT1042QT#C5308061SIT · SOP-8 | SIT | SOP-8 | 4 | ₹87.17 · 4 in stock | View |
 | SIT1042AQT#C5382541SIT · SOP-8 | SIT | SOP-8 | 7,749 | ₹71.79 · 7,749 in stock | View |
 | SIT1042AT/3#C5382545SIT · SOP-8 | SIT | SOP-8 | 14,375 | ₹70.19 · 14,375 in stock | View |
 | SIT1051AQT/3#C5382548SIT · SOP-8 | SIT | SOP-8 | 1,940 | ₹70.49 · 1,940 in stock | View |
 | SIT1051AT#C5382550SIT · SOP-8 | SIT | SOP-8 | 5,823 | ₹66.93 · 5,823 in stock | View |
