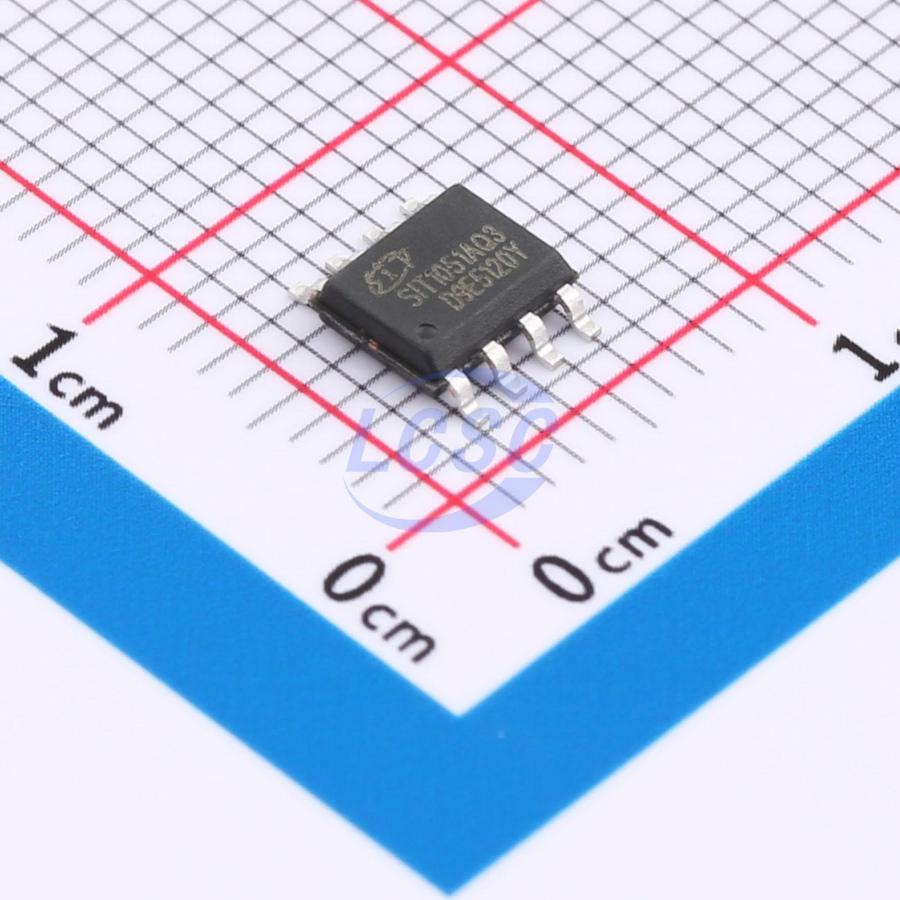

SIT1051AQT/3
4.5V~5.5V CAN FD Transceiver 5Mbps SOP-8 Drivers, Receivers, Transceivers RoHS
SOP-8ROHS CompliantActive
SIT1051AQ CAN FD Silent Mode Bus Transceiver
- Manufacturer
- SIT
- Manufacturer part #
- SIT1051AQT/3
- Store part #
- C5382548
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,940 in stock
#C5382548
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.49 | ₹70.49 |
| 10+ | ₹58.03 | ₹580.30 |
| 30+ | ₹52.87 | ₹1,586.10 |
| 100+ | ₹46.21 | ₹4,621.00 |
| 500+ | ₹43.20 | ₹21,600.00 |
| 1,000+ | ₹41.26 | ₹41,260.00 |
1 × ₹70.49
₹70.49
excl. GST
₹83.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SIT1051AQT/3
₹70.49 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- CAN FD Transceiver
- number of channels
- 1
- Data Rate
- 5Mbps
- Operating Temperature
- -40℃~+150℃
- Features
- Low-power mode;Thermal shutdown protection;Bus fault protection;TXD dominant timeout;Silent mode;Undervoltage Protection;ESD protection;Integrated level shifting
- Supply Current
- 70mA
- Quiescent Supply Current
- 3mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.271 g
Overview
SIT1051AQ is an interface chip used between the CAN protocol controller and the physical bus. It can be used for in-vehicle, industrial control and other fields. It supports 5Mbps (CAN FD), and has ability to perform differential signal transmission between bus and the CAN protocol controller. The SIT1051AQ is an upgraded version of the SIT1051Q with improved bus signal symmetry and lower electromagnetic radiation performance. In addition, the SIT1051AQ is fully compatible with SIT1051Q.
Applications
- in-vehicle
- industrial control
Key features
- COMPATIBLE with the SAE J2284-1 to SAE J2284-5 standard
- AEC-Q100 qualified
- Thermally protected
- ±58V BUS protection
- Driver (TXD) dominant overtime function
- Silent receive mode
- SIT1051AQT/E with off mode in low power consumption
- SIT1051AQT/3 can be interfaced directly to microcontrollers with supply voltages from 3V to 5V
- Undervoltage protection on VCC and VIO power supply pins
- Timing guaranteed for data rates up to 5 Mbit/s in the (CAN FD) fast phase
- The typical loop delay from TXD to RXD is less than 100ns
- Very low ElectroMagnetic Emission (EME)
- Unpowered nodes do not interfere with the bus
- Provide DFN3*3 - 8, small outline, leadless package
- Provide Green and Environmentally Friendly Lead-free package
