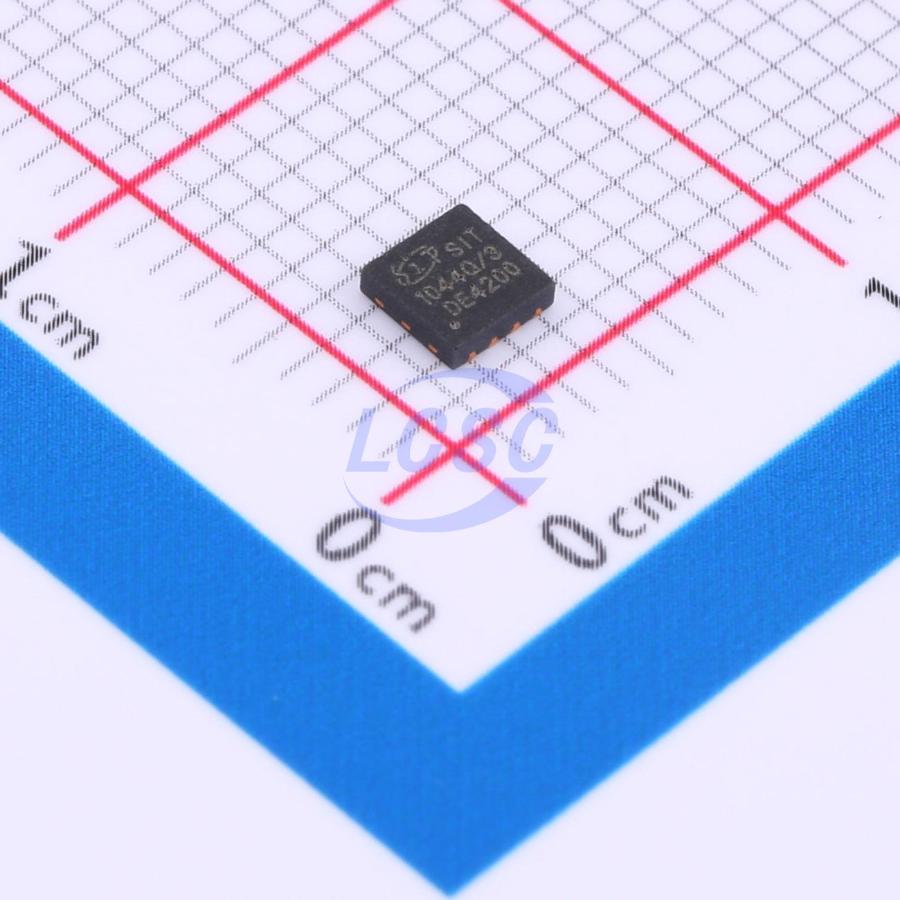

SIT1044QTK/3
CAN FD Transceiver 4.75V~5.25V 5Mbps DFN-8(3x3) Drivers, Receivers, Transceivers RoHS
DFN-8(3x3)ROHS CompliantActive
Bus transceiver with 5V power supply, I/O ports compatible with 3.3V, 5Mbps, and CAN FD standby mode
- Manufacturer
- SIT
- Manufacturer part #
- SIT1044QTK/3
- Store part #
- C5308063
- Package / case
- DFN-8(3x3)
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12,387 in stock
#C5308063
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.43 | ₹69.43 |
| 10+ | ₹55.88 | ₹558.80 |
| 30+ | ₹50.30 | ₹1,509.00 |
| 100+ | ₹43.00 | ₹4,300.00 |
| 500+ | ₹38.05 | ₹19,025.00 |
| 1,000+ | ₹36.12 | ₹36,120.00 |
1 × ₹69.43
₹69.43
excl. GST
₹81.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 6,000 per reel
SIT1044QTK/3
₹69.43 for 1 + GST
Specifications
- Type
- CAN FD Transceiver
- Voltage - Supply
- 4.75V~5.25V
- number of channels
- 1
- Data Rate
- 5Mbps
- Operating Temperature
- -40℃~+125℃
- Features
- Low-power mode;Wake-up function;TXD dominant timeout;Thermal shutdown protection;Undervoltage Protection;ESD protection
- Supply Current
- 30uA
- Quiescent Supply Current
- 30uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 6,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.18 g
Overview
The SIT1044Q is an interface chip designed for use between CAN protocol controllers and the physical bus. It is suitable for applications in trucks, buses, passenger vehicles, industrial control, and other fields. It supports 5Mbps flexible data rate, features differential signal transmission capability between the bus and CAN protocol controllers, and is fully compliant with the ISO 11898-2:2016 standard.
Applications
- Truck
- Bus
- Passenger Car
- Industrial Control
Key features
- Compatible with ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 standards
- AEC-Q100 qualified
- Built-in over-temperature protection
- Bus pin ±40V voltage tolerance
- Driver (TXD) dominant timeout function
- Low-power standby mode with remote wake-up capability
- SIT1044QT/3, SIT1044QTK/3, SIT1044QT/31, and SIT1044QTK/31 I/O voltage range supports 3.3V and 5V MCUs
- Undervoltage lockout on VCC and VIO supply pins
- High-speed CAN, supports 5Mbps CAN FD (Flexible Data Rate)
- High EMI immunity
- Unpowered node does not disturb the bus
- TXD to RXD typical loop delay less than 100ns
- Supports DFN3×3-8 compact leadless package
- Available in green, RoHS-compliant, lead-free package
