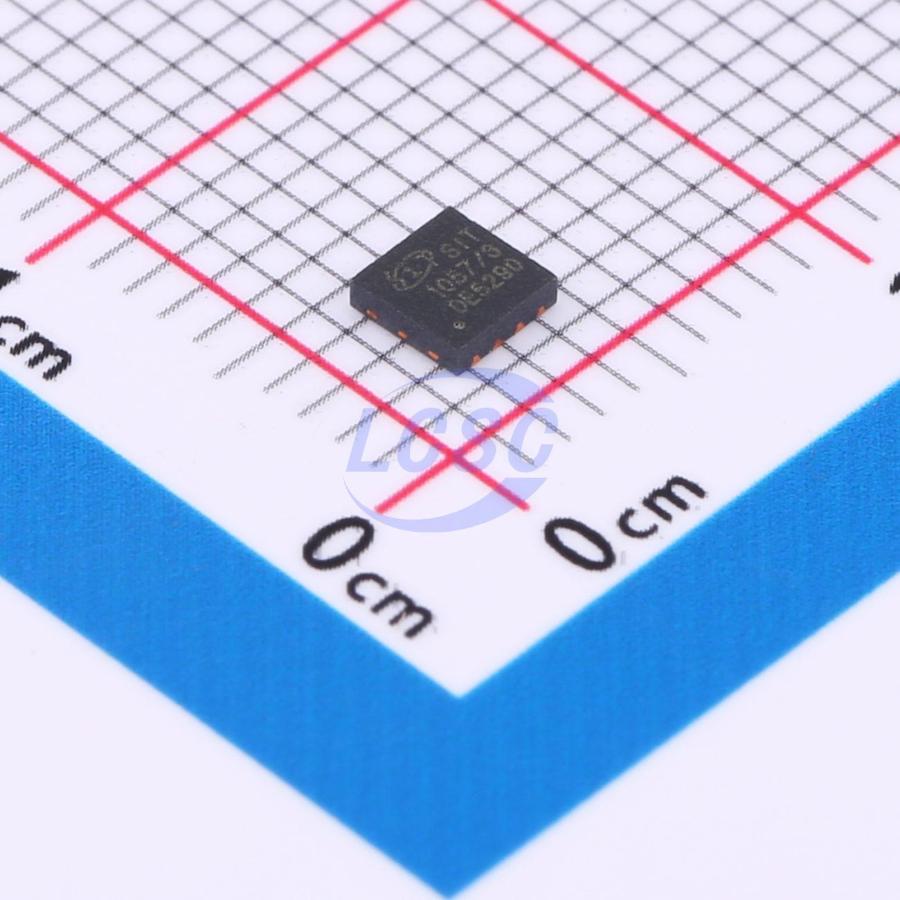

SIT1057TK/3
CAN FD Transceiver 4.75V~5.25V 5Mbps DFN-8(3x3) Drivers, Receivers, Transceivers RoHS
DFN-8(3x3)ROHS CompliantActive
SIT1057 5V Supply, I0 Port Compatible with 3.3V, 5Mbps, CAN FD Transceiver
- Manufacturer
- SIT
- Manufacturer part #
- SIT1057TK/3
- Store part #
- C5382538
- Package / case
- DFN-8(3x3)
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,245 in stock
#C5382538
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹54.96 | ₹274.80 |
| 50+ | ₹45.22 | ₹2,261.00 |
| 150+ | ₹41.04 | ₹6,156.00 |
| 500+ | ₹35.83 | ₹17,915.00 |
| 2,500+ | ₹33.51 | ₹83,775.00 |
| 6,000+ | ₹32.12 | ₹1,92,720.00 |
5 × ₹54.96
₹274.80
excl. GST
₹324.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 6,000 per reel
SIT1057TK/3
₹274.80 for 5 + GST
Specifications
- Type
- CAN FD Transceiver
- Voltage - Supply
- 4.75V~5.25V
- number of channels
- 1
- Data Rate
- 5Mbps
- Operating Temperature
- -40℃~+150℃
- Features
- Thermal shutdown protection;TXD dominant timeout;Silent mode;Undervoltage Protection;ESD protection
- Supply Current
- 45mA
- Quiescent Supply Current
- 1.2mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 6,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.212 g
Overview
The SIT1057 is an interface chip designed for use between a CAN protocol controller and the physical bus. It is suitable for applications in trucks, buses, passenger vehicles, industrial control, and other fields. It supports 5Mbps Flexible Data-Rate and features differential signal transmission capability between the bus and the CAN protocol controller, fully compliant with the "ISO 11898-2: 2016" standard.
Applications
- Truck
- Bus
- Passenger Car
- Industrial Control
Key features
- Fully compliant with ISO 11898-2:2016 standard
- Built-in over-temperature protection
- Bus port ±40V voltage tolerance
- Driver (TXD) dominant timeout function
- Silent receive mode
- SIT1057T/3 I/O voltage range supports 3.3V and 5V MCU
- Under-voltage protection on VCC and VIO supply pins
- High-speed CAN, supports 5Mbps CAN FD (Flexible Data Rate)
- High EMI immunity
- Unpowered node does not disturb the bus
- TXD to RXD typical loop delay less than 100ns
- Supports HVSON8 / DFN3*3-8, small outline, leadless package
- Available in green, RoHS-compliant lead-free package
