SuntekDatasheet (PDF)

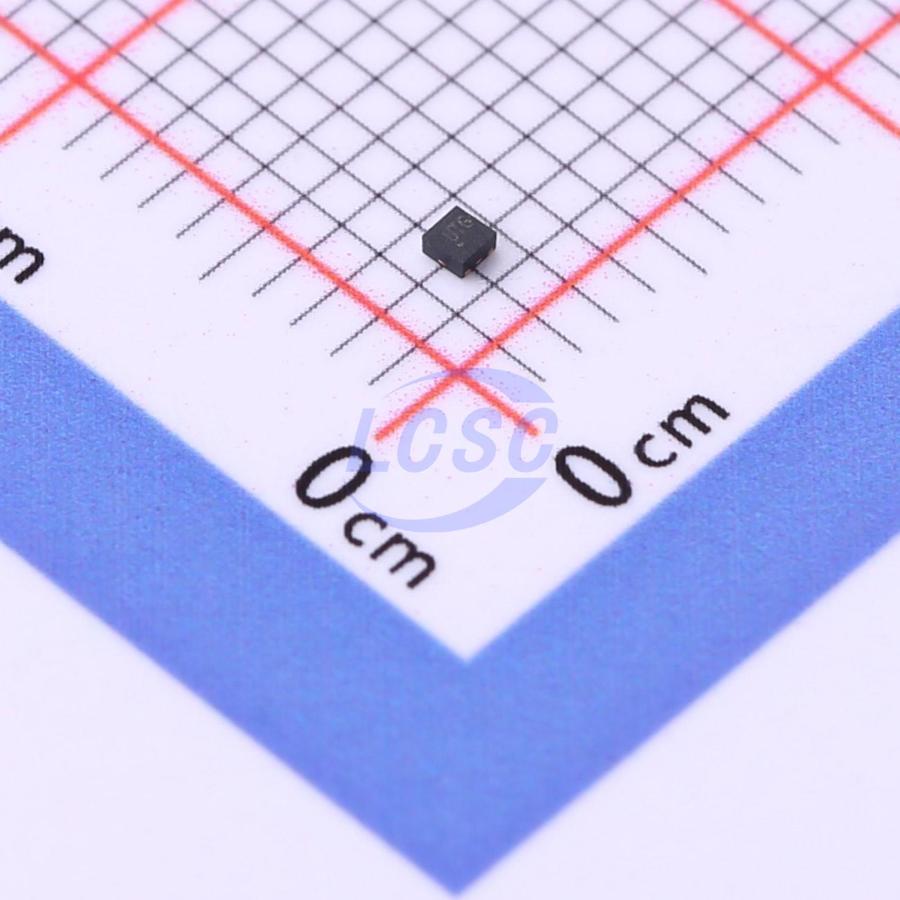

SK6018D4-30
3V Positive Fixed DFN1x1-4L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
DFN1x1-4LRoHSActive
300mA, Low Consumption, Low Dropout, CMOS LDO
- Manufacturer
- Suntek
- Manufacturer part #
- SK6018D4-30
- Store part #
- C2986175
- Package / case
- DFN1x1-4L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,065 in stock
#C2986175
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.86 | ₹49.30 |
| 50+ | ₹8.67 | ₹433.50 |
| 150+ | ₹8.06 | ₹1,209.00 |
| 500+ | ₹7.61 | ₹3,805.00 |
| 2,500+ | ₹7.25 | ₹18,125.00 |
| 5,000+ | ₹7.06 | ₹35,300.00 |
5 × ₹9.86
₹49.30
excl. GST
₹58.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
SK6018D4-30
₹49.30 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6.5V
- Output Type
- Fixed
- Features
- Enable control;Short Circuit Protection;Over Current Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.012 g
Overview
The SK6018 series are low dropout linear regulators and optimized to provide a high performance solution for battery power system to delivery low quiescent current. The device offer a new level of cost effective performance in cellular phones, laptop and notebook computers, and other portable devices.
Applications
- Reference voltage source
- Toys
- Bluetooth, wireless handsets
- Low Consumption Device
- Others portable electronic device
Key features
- Input voltage: 2.5V - 6.5V
- Output range: 1.2V - 3.6V (customized by every 0.1V step)
- Output current: 300mA
- Dropout voltage: 100mV @ Iout = 100mA
- Quiescent current: 1μA Typ.
- Recommend capacitor: 1μF
- The SK6018 series are designed to make use of low cost ceramic capacitors which ensure the stability of the output current, and enhance the efficiency in order to prolong the battery life of those portable devices.
- The SK6018 regulators are available in DFN1x1 - 4L packages.
- Standard products are Pb - free and Halogen - free.
