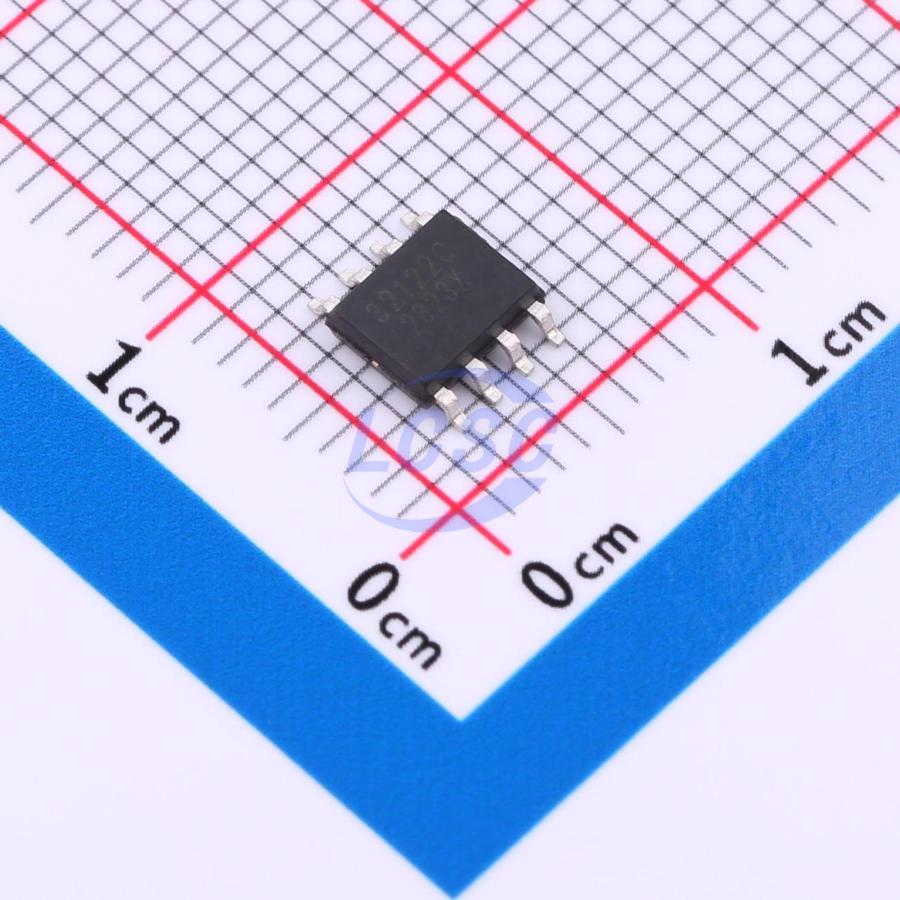

SL2122C
20mA 2 100uV 12V/us 1uA 100dB 1.2mA 25MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
0.4μV Input Noise, 14V RRIO Operational Amplifiers (Dual/Quad)
- Manufacturer
- Slkor
- Manufacturer part #
- SL2122C
- Store part #
- C18208633
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,445 in stock
#C18208633
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.25 | ₹166.25 |
| 50+ | ₹25.80 | ₹1,290.00 |
| 150+ | ₹22.60 | ₹3,390.00 |
| 500+ | ₹18.63 | ₹9,315.00 |
| 2,500+ | ₹16.86 | ₹42,150.00 |
| 4,000+ | ₹15.78 | ₹63,120.00 |
5 × ₹33.25
₹166.25
excl. GST
₹196.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SL2122C
₹166.25 for 5 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 100uV
- Slew Rate
- 12V/us
- Input Offset Current(Ios)
- 100nA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 1uA
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Input Offset Voltage Drift(Vos TC)
- 200nV/℃
- Quiescent Current
- 1.2mA
- Gain Bandwidth Product
- 25MHz
- Features
- EMI filtering/RF suppression
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 3V~14V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.139 g
Overview
The SL2122 (dual), and SL2124 (quad) are ultra-low noise dual and quad midvoltage (3V to 14V) operational amplifiers (opamps) with rail-to-rail input and output swing capabilities. These devices are very suitable for applications where ultra-low noise, high voltage operation and a small footprint. SL2122S and SL2124S are with Shutdown function.
Applications
- Infotainment system
- HVAC: heating, ventilating, and air conditioning
- Industrial control
- Test equipment
- Portable Equipment
- Active filters
- Data acquisition system
Key features
- Supply voltages from 3V to 14V
- Ultra-low input voltage noise (20Hz to 20kHz) 0.4μV
- Excellent THD + N 96dB
- Excellent SNR 120dB
- Rail-to-rail input and output
- Low input offset voltage: ±0.1mV typ
- Unity-gain bandwidth: 25MHz
- Low quiescent current (per opamp): 1.2mA typ @14V
- Shutdown function (SL2122S and SL2124S)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SL620D-S08#C54950729Slkor · SOP-8 | Slkor | SOP-8 | 3,990 | ₹43.47 · 3,990 in stock | View |
