SlkorDatasheet (PDF)

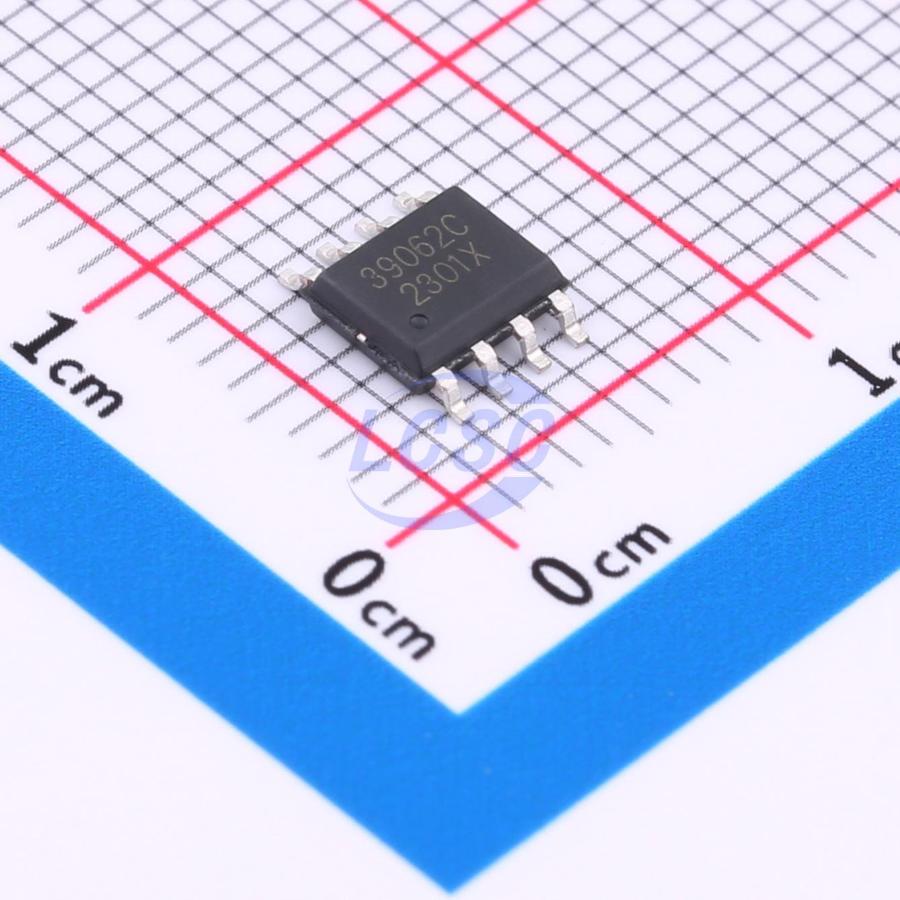

SL9062C
30mA 2 500uV 8V/us 0.5pA 100dB 400uA 25MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
RRIO Operational Amplifiers (Dual/Quad)
- Manufacturer
- Slkor
- Manufacturer part #
- SL9062C
- Store part #
- C18208631
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,205 in stock
#C18208631
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.64 | ₹68.20 |
| 50+ | ₹10.93 | ₹546.50 |
| 150+ | ₹9.58 | ₹1,437.00 |
| 500+ | ₹8.56 | ₹4,280.00 |
| 2,500+ | ₹7.63 | ₹19,075.00 |
| 4,000+ | ₹7.22 | ₹28,880.00 |
5 × ₹13.64
₹68.20
excl. GST
₹80.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SL9062C
₹68.20 for 5 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 8V/us
- Input Offset Current(Ios)
- 0.05pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 0.5pA
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Input Offset Voltage Drift(Vos TC)
- 500nV/℃
- Quiescent Current
- 400uA
- Gain Bandwidth Product
- 25MHz
- Features
- EMI filtering/RF suppression
- Input Voltage Noise Density
- 7nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.15 g
Overview
The SL9062 (dual), and SL 9064 (quad) are dual and quad low voltage (1.5V to 5.5V) operational amplifiers (opamps) with rail-to-rail input and output swing capabilities. These devices are very suitable for applications where low voltage operation, a small footprint, and high capacitive load drive are required. SL9062S and SL9064S are with Shutdown function.
Applications
- Infotainment system
- HVAC: heating, ventilating, and air conditioning
- Motor control
- Wearable devices
- Sensor signal conditioning
- Power modules
- Active filters
Key features
- Excellent THD+N 100dB
- Excellent SNR 110dB
- Rail-to-rail input and output
- Low input offset voltage: ±0.5mV typ
- Unity-gain bandwidth: 25MHz
- Low quiescent current (per opamp): 400μA typ
- Operational at supply voltages as low as 1.5V
- Easier to stabilize with higher capacitive load due to resistive open-loop output impedance
- Shutdown function (SL9062S and SL9064S)
