SN65HVD3082EDR
1/1 Transceiver Half RS422, RS485 SOP-8
SOP-8ROHS CompliantActive

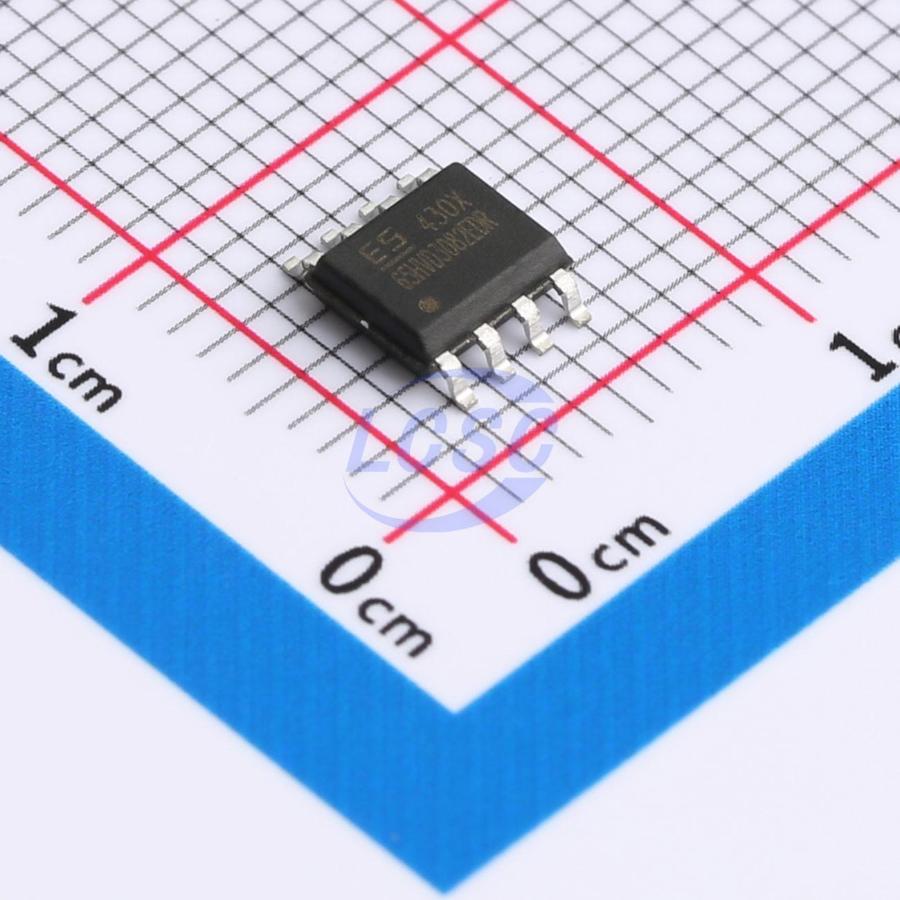

SN65HVD3082EDR RS-485/RS422 Transceiver
- Manufacturer
- ElecSuper
- Manufacturer part #
- SN65HVD3082EDR
- Store part #
- C41365328
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,260 in stock
#C41365328
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.65 | ₹93.25 |
| 50+ | ₹14.90 | ₹745.00 |
| 150+ | ₹13.02 | ₹1,953.00 |
| 500+ | ₹11.62 | ₹5,810.00 |
| 2,500+ | ₹10.48 | ₹26,200.00 |
| 5,000+ | ₹9.92 | ₹49,600.00 |
5 × ₹18.65
₹93.25
excl. GST
₹110.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN65HVD3082EDR
₹93.25 for 5 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- Transceiver
- Data Rate
- 2.5Mbps
- Operating Temperature
- -40℃~+125℃
- Number of Nodes
- 256
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection;Low-power mode
- Number of Receivers
- 1
- Quiescent Supply Current
- 270uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.177 g
Overview
SN65HVD3082EDR is an RS-485 transceiver operating from a 4.5V~5.5V wide supply voltage, with bus port ESD protection up to 15kV HBM, bus voltage tolerance of ±15V, half-duplex, low power consumption, and fully compliant with TIA/EIA-485 standard requirements. It integrates one driver and one receiver, both independently enable/disable controllable. When both are disabled, the driver and receiver outputs enter a high-impedance state. With 1/8 unit load, up to 256 SN65HVD3082EDR transceivers can be connected in parallel on the same communication bus. Error-free data transmission at up to 2.5Mbps is supported. Operating voltage range is 3.0~5.5V, with fail-safe, current limiting protection, and overvoltage protection features.
Applications
- Bus-type networking
- Daisy-chain networking
- Bus port protection
Key features
- 4.5V~5.5V wide supply range, half-duplex
- Bus port ESD protection HBM up to 15kV
- Bus fault tolerance voltage up to ±15V
- 1/8 unit load, supports up to 256 devices on the bus
- Driver short-circuit output protection
- Receiver open-circuit fail-safe
- Strong noise immunity
- Integrated transient voltage suppression
- Data transfer rate up to 2.5Mbps in electrically noisy environments
- Available in DFN3*3-8, MSOP8/VSSOP8 packages
