TDSEMICDatasheet (PDF)

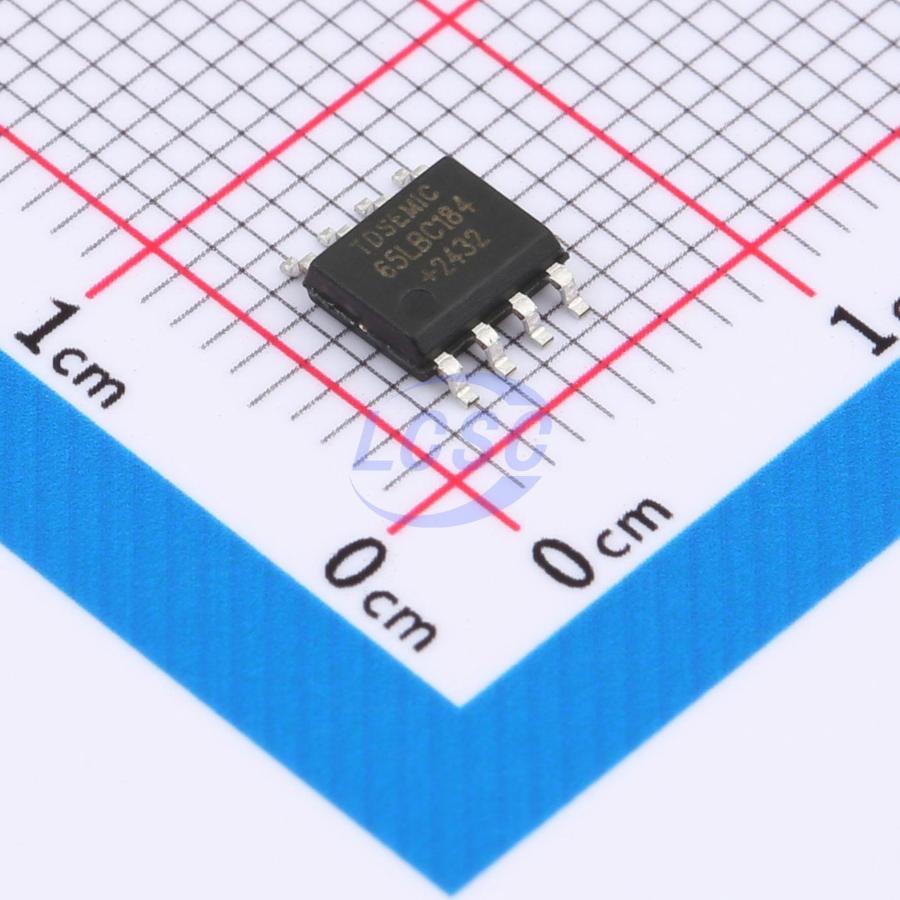

SN65LBC184DR-TD
1/1 Transceiver RS422, RS485 SOP-8
SOP-8ROHS CompliantActive
Low Power RS-485 Transceiver
- Manufacturer
- TDSEMIC
- Manufacturer part #
- SN65LBC184DR-TD
- Store part #
- C41369792
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,635 in stock
#C41369792
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.73 | ₹178.65 |
| 50+ | ₹28.23 | ₹1,411.50 |
| 150+ | ₹25.02 | ₹3,753.00 |
| 500+ | ₹21.01 | ₹10,505.00 |
| 2,500+ | ₹19.22 | ₹48,050.00 |
| 5,000+ | ₹18.15 | ₹90,750.00 |
5 × ₹35.73
₹178.65
excl. GST
₹210.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN65LBC184DR-TD
₹178.65 for 5 + GST
Specifications
- Voltage - Supply
- 3.3V;5V
- Type
- Transceiver
- Data Rate
- 2.5Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 128
- ESD Protect
- ±1.5kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown
- Number of Receivers
- 1
- Quiescent Supply Current
- 700uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.18 g
Overview
The SN65LBC184DR is a transceiver for RS-485 and RS-422 communication systems. Data transmission rates of up to 2.5Mbps are supported. The device operates in half-duplex mode and features Driver Enable (DE) and Receiver Enable (RE) pins; when disabled, both driver and receiver outputs enter a high-impedance state. The device also integrates a failsafe function: in receive mode, if the input is open or shorted, the receiver output remains high.
Applications
- Low-power RS-485 transceiver
- Low-power RS-422 transceiver
- Level translation
- EMI-resistant transceiver
- Industrial control LAN
Key features
- ESD protection: ±1500V Human Body Model
- Three-state output
- Half-duplex communication
- Bus supports up to 128 transceivers
