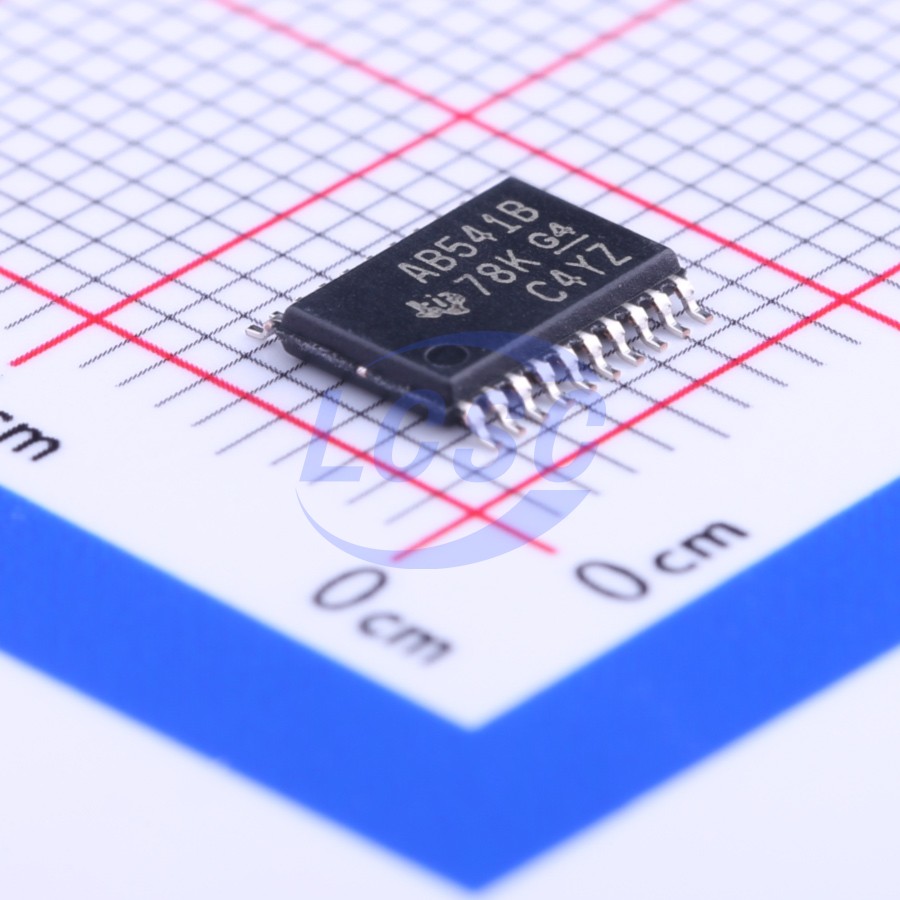

SN74ABT541BPWR

The SN54ABT541 and SN74ABT541B octal buffers and line drivers are ideal for driving bus lines or buffering memory address registers. The devices feature inputs and outputs on opposite sides of the package to facilitate printed circuit board layout. The 3-state control gate is a two-input AND gate with active-low inputs so that if either output-enable (OE1 or OE2) input is high, all eight outputs are in the high-impedance state. When VCC is between 0 and 2.1V the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 2.1V, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

Applications

• Drive bus lines
• Buffer memory address registers

Key features

• State-of-the-Art EPiC-IIB BiCMOS Design Significantly Reduces Power Dissipation
• Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD-17
• Typical VOLP (Output Ground Bounce) < 1V at VCC = 5V, TA = 25℃
• High-Impedance State During Power Up and Power Down
• High-Drive Outputs (-32 mA IOH, 64 mA IOL)
• Package Options Include Plastic Small-Outline (DW), Shrink Small-Outline (DB), and Thin Shrink Small-Outline (PW) Packages, Ceramic Chip Carriers (FK), Ceramic Flat (W) Package, and Plastic (N) and Ceramic (J) DIPs
