TIDatasheet (PDF)

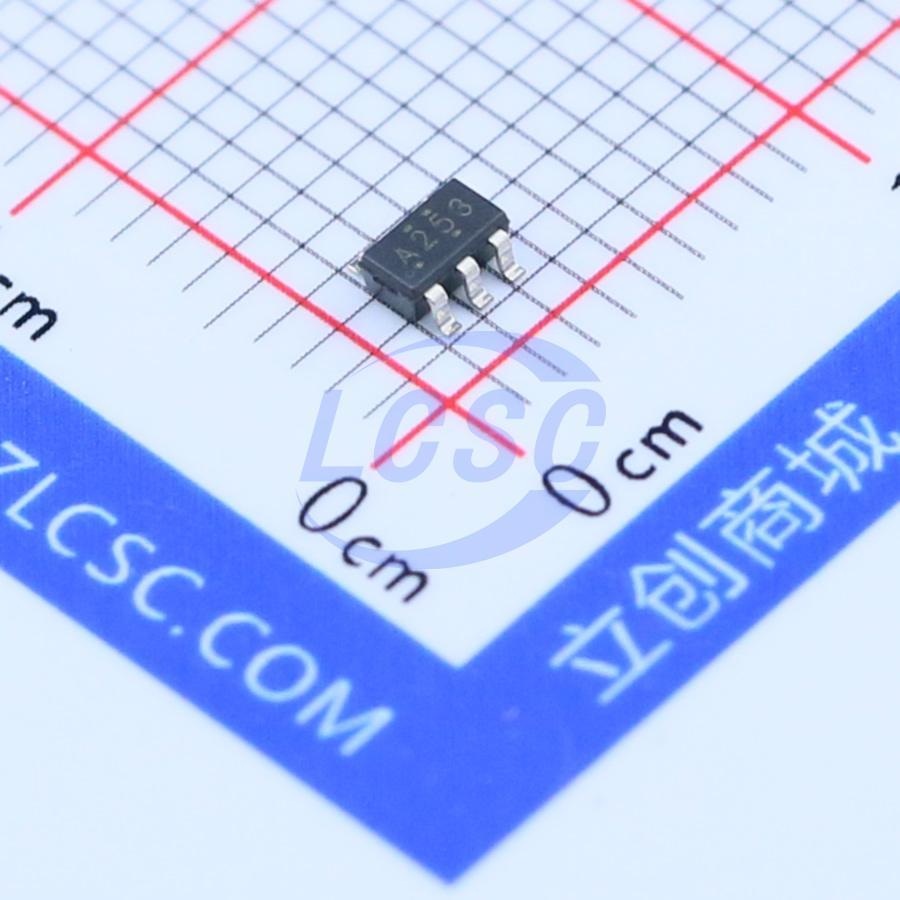

SN74AHC1G125DBVR
2V~5.5V 1 1 5.5ns@5V,15pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-23-5ROHS3 CompliantActive
Single Bus Buffer Gate with 3-State Output
- Manufacturer
- TI
- Manufacturer part #
- SN74AHC1G125DBVR
- Store part #
- C7468
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22,560 in stock
#C7468
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.82 | ₹98.20 |
| 100+ | ₹7.77 | ₹777.00 |
| 300+ | ₹6.73 | ₹2,019.00 |
| 3,000+ | ₹5.82 | ₹17,460.00 |
| 6,000+ | ₹5.20 | ₹31,200.00 |
| 9,000+ | ₹4.90 | ₹44,100.00 |
10 × ₹9.82
₹98.20
excl. GST
₹115.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHC1G125DBVR
₹98.20 for 10 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 8mA
- Series
- 74AHC
- Voltage - Supply
- 2V~5.5V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 5.5ns@5V,15pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.056 g
Overview
The SN74AHC1G125 is a single bus buffer gate/line driver with 3 - state output. The output is disabled when the output - enable (OE (overline)) input is high. When OE (overline) is low, true data is passed from the A input to the Y output. To ensure the high - impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current - sinking capability of the driver.
Key features
- Operating voltage range: 2V~5.5V
- Maximum propagation delay of 6ns at 5V
- Low power consumption, maximum supply current Icc of 10μA
- Output drive capability of ±8mA at 5V
- Available in DBV, DCK, and DRL package types
- Maximum supply voltage range: -0.5V~7V
- Input voltage range: -0.5V~7V
- Output voltage range: -0.5V~VCC+0.5V
- Input clamp current: -20mA when VI < 0
- Output clamp current: ±20mA when VO < 0 or VO > VCC
- Continuous output current: ±25mA when VO is 0~VCC
- Continuous current through VCC or GND: ±50mA
- Package thermal resistance: 206°C/W for DBV, 252°C/W for DCK, 142°C/W for DRL
- Storage temperature range: -65°C~150°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AHC1G126DBVR#C145145TI · SOT-23-5 | TI | SOT-23-5 | 3,940 | ₹15.78 · 3,940 in stock | View |
 | 74AHC1G126QW5-7#C3754069DIODES · SOT-25 | DIODES | SOT-25 | 25 | ₹9.47 · 25 in stock | View |
 | SN74AHC1G125DB(LX)#C45384870lingxingic · SOT-23-5 | lingxingic | SOT-23-5 | 2,900 | ₹7.28 · 2,900 in stock | View |
 | 74AHC1G125W5-7#C460489DIODES · SOT-25 | DIODES | SOT-25 | 1,740 | ₹12.12 · 1,740 in stock | View |
| AiP74AHC1G125GB235.TR#C52121065Wuxi I-core Elec · SOT-23-5 | Wuxi I-core Elec | SOT-23-5 | 1,160 | ₹9.38 · 1,160 in stock | View | |
