TIDatasheet (PDF)

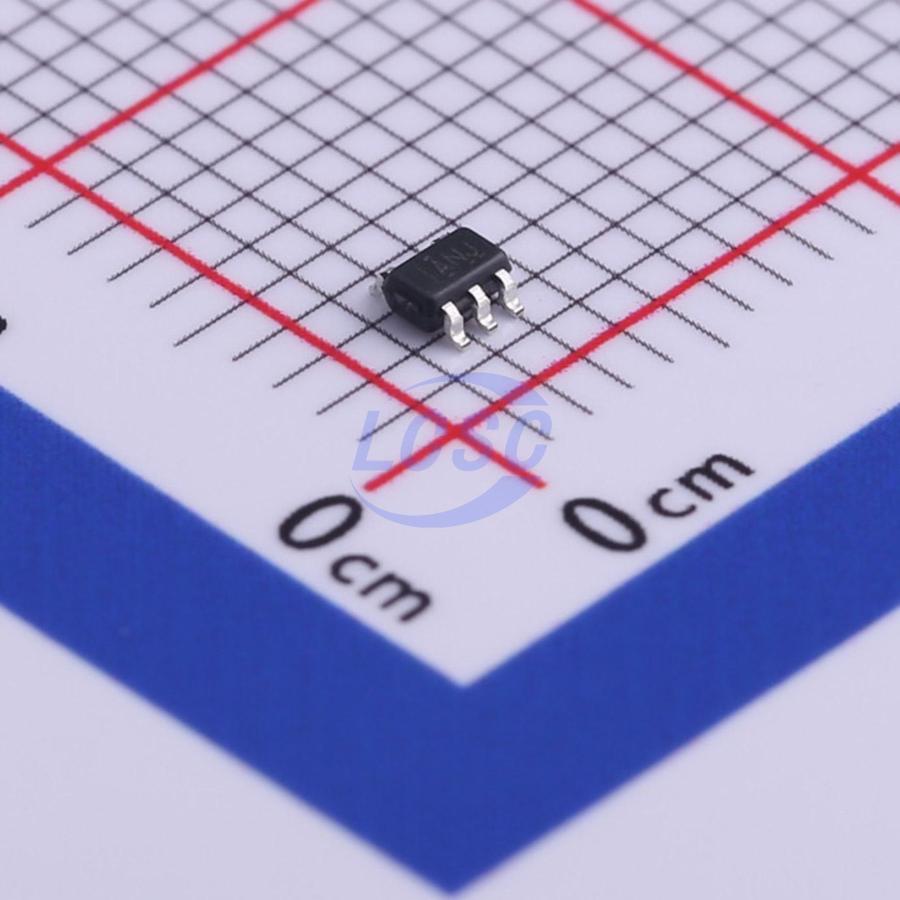

SN74AHC1G126DCKR
2V~5.5V 1 1 5.5ns@5V,15pF SC-70-5 Buffers, Drivers, Receivers, Transceivers RoHS
SC-70-5ROHS3 CompliantActive
Single Bus Buffer Gate With 3-State Output
- Manufacturer
- TI
- Manufacturer part #
- SN74AHC1G126DCKR
- Store part #
- C484739
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,545 in stock
#C484739
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.18 | ₹65.90 |
| 50+ | ₹10.81 | ₹540.50 |
| 150+ | ₹9.62 | ₹1,443.00 |
| 500+ | ₹8.73 | ₹4,365.00 |
| 3,000+ | ₹7.37 | ₹22,110.00 |
| 6,000+ | ₹7.01 | ₹42,060.00 |
5 × ₹13.18
₹65.90
excl. GST
₹77.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHC1G126DCKR
₹65.90 for 5 + GST
Specifications
- Voltage - Supply
- 2V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Output enable;Level shifting
- Current - Output High(IOH)
- 8mA
- Series
- 74AHC
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 5.5ns@5V,15pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.017 g
Overview
The SN74AHC1G126 device is a single bus buffer gate/line driver with 3-state output. The output is disabled when the output-enable (OE) input is low. When OE is high, true data is passed from the A input to the Y output.
Applications
- Projectors
- TVs
- Servers
- Motor Controls
- Patient Monitoring Electronic Points of Sale
Key features
- Operating Range of 2 V to 5.5 V
- Max t(pd) of 6 ns at 5 V
- Low Power Consumption, 10-μA Max ICC
- ±8-mA Output Drive at 5 V
- Latch-Up Performance Exceeds 250 mA Per JESD 17
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AHC1G125DCKR#C151890TI · SC-70-5 | TI | SC-70-5 | 14,820 | ₹13.10 · 14,820 in stock | View |
 | SN74AHC1G125DCKT#C2866641TI · SC-70-5 | TI | SC-70-5 | 291 | ₹74.23 · 291 in stock | View |
 | EM74AHC1G126GW#C49188274EnergyMath · SOT-353 | EnergyMath | SOT-353 | 10 | ₹7.45 · 10 in stock | View |
 | SN74AHC1G125DC(LX)#C22469945lingxingic · SOT-353 | lingxingic | SOT-353 | 2,120 | ₹7.22 · 2,120 in stock | View |
 | 74AHC1G125QSE-7#C3756835DIODES · SOT-353 | DIODES | SOT-353 | 20 | ₹8.88 · 20 in stock | View |
