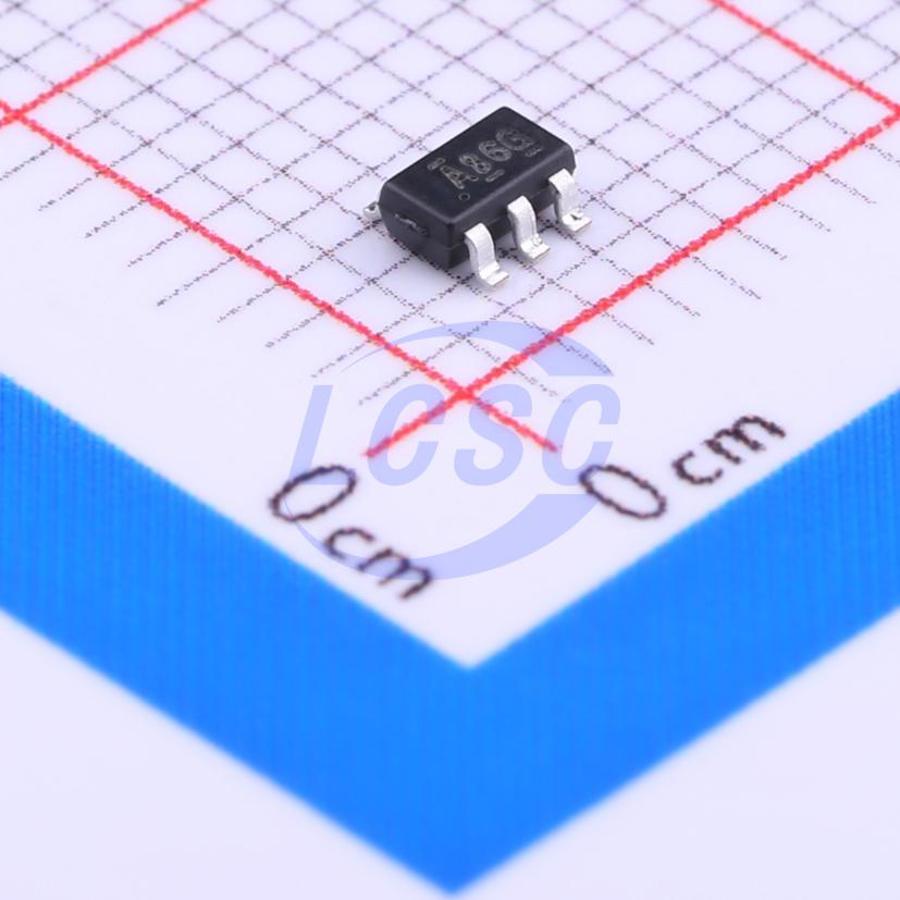

SN74AHC1G86DBVR
Schmitt trigger 2V~5.5V 8.8ns@5V,50pF 1uA SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS3 CompliantActive
Single 2-Input Exclusive-OR Gate
- Manufacturer
- TI
- Manufacturer part #
- SN74AHC1G86DBVR
- Store part #
- C7471
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
59,600 in stock
#C7471
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.53 | ₹52.65 |
| 50+ | ₹8.39 | ₹419.50 |
| 150+ | ₹7.32 | ₹1,098.00 |
| 500+ | ₹6.51 | ₹3,255.00 |
| 3,000+ | ₹5.16 | ₹15,480.00 |
| 6,000+ | ₹4.84 | ₹29,040.00 |
5 × ₹10.53
₹52.65
excl. GST
₹62.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHC1G86DBVR
₹52.65 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- output type
- Push-pull
- Logic Family
- 74AHC Series
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 440mV
- Propagation Delay
- 8.8ns@5V,50pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 500mV~1.65V
- Input Logic Level - High
- 1.5V~3.85V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 3.8V;4.4V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The SN74AHC1G86 is a single 2-input exclusive-OR gate. The device performs the Boolean function Y = A Φ(overline) x B(overline) or Y = A(overline)B + A·B(overline) in positive logic.
Applications
- Cameras
- Programmable Logic Controllers
- Telecom Infrastructure
- Wireless Headsets
- Motor Drives and Controls
- TVs
- Set-top-boxes
- Audio
Key features
- Operating Range of 2 V to 5.5 V
- Max tpd of 8 ns at 5 V
- Low Power Consumption, 10 μA Max ICC
- ±8-mA Output Drive at 5 V
- Schmitt-Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22 – 2000-V Human-Body Model, 200-V Machine Model, 1000-V Charged-Device Model
