TOSHIBADatasheet (PDF)

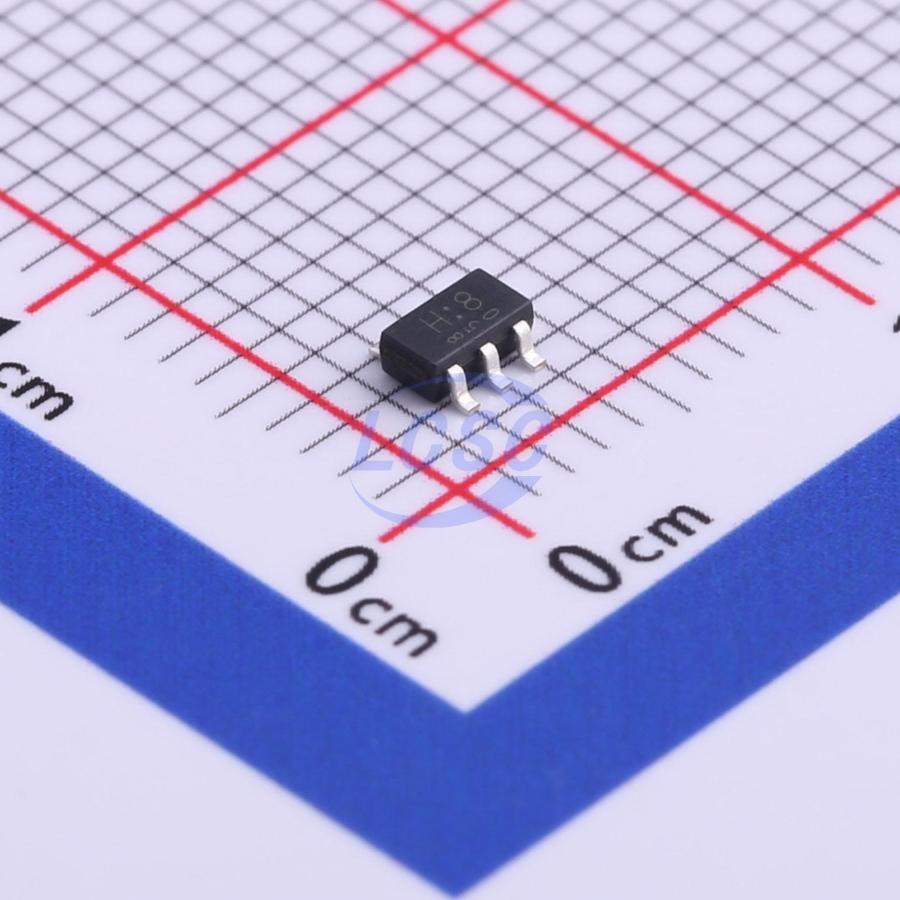

TC7SH86F,LJ(CT
XOR Gate IC 1 Channel SOT-23-5
SOT-23-5ROHS3 CompliantActive
2-Input Exclusive-OR Gate
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7SH86F,LJ(CT
- Store part #
- C516177
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,965 in stock
#C516177
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.45 | ₹112.25 |
| 50+ | ₹17.64 | ₹882.00 |
| 150+ | ₹15.57 | ₹2,335.50 |
| 500+ | ₹12.99 | ₹6,495.00 |
| 3,000+ | ₹11.84 | ₹35,520.00 |
| 6,000+ | ₹11.15 | ₹66,900.00 |
5 × ₹22.45
₹112.25
excl. GST
₹132.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7SH86F,LJ(CT
₹112.25 for 5 + GST
Specifications
- Logic Family
- TC7S Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 0V~100mV;360mV
- Propagation Delay
- 6.8ns@5.0V,15pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - High
- 1.5V~4.2V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 3.94V;4.4V~4.5V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 2.6mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.023 g
Overview
Key features
- AEC-Q100 (Rev. H)
- Wide operating temperature range: T(opr) = -40 to 125 °C
- High speed operation: t(pd) = 4.8 ns (typ.) (V(CC) = 5.0 V, C(L) = 15 pF)
- Low power dissipation: I(CC) = 2.0 μA (max) (T(a) = 25 °C)
- High noise immunity: V(NIH) = V(NIL) = 28 % V(CC) (min)
- 5.5 V tolerant inputs
- Balanced Propagation Delay: t(pLH) ≈ t(pHL)
- Wide operating voltage range: V(CC) = 2.0 to 5.5 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HC1G86GV#C52205106TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,600 | ₹5.76 · 1,600 in stock | View |
 | NC7S86M5X#C19829498TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 4,110 | ₹7.61 · 4,110 in stock | View |
 | SN74AHC1G86DBVR#C19829670TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 8,230 | ₹7.33 · 8,230 in stock | View |
 | SN74AHC1G86DBVR#C7471TI · SOT-23-5 | TI | SOT-23-5 | 60,580 | ₹10.53 · 60,580 in stock | View |
 | TP74AHC1G86S5#C52205200TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,160 | ₹6.77 · 2,160 in stock | View |
