SN74AHC245DWR
2V~5.5V 8 1 8.3ns@3.3V,50pF SOIC-20-300mil Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-20-300milROHS CompliantActive

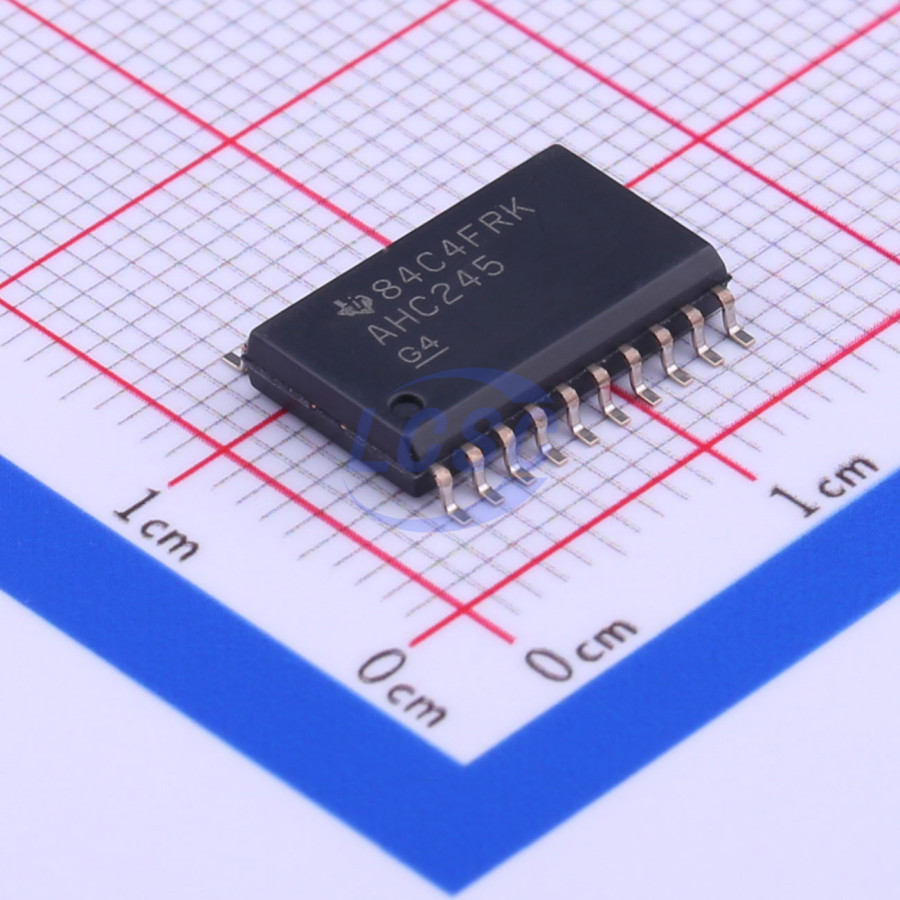

Octal Bus Transceivers With 3-State Outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74AHC245DWR
- Store part #
- C132986
- Package / case
- SOIC-20-300mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,056 in stock
#C132986
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹94.31 | ₹94.31 |
| 10+ | ₹74.80 | ₹748.00 |
| 30+ | ₹65.04 | ₹1,951.20 |
| 100+ | ₹55.29 | ₹5,529.00 |
| 500+ | ₹49.51 | ₹24,755.00 |
| 1,000+ | ₹46.62 | ₹46,620.00 |
1 × ₹94.31
₹94.31
excl. GST
₹111.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74AHC245DWR
₹94.31 for 1 + GST
Specifications
- Voltage - Supply
- 2V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 40uA
- Function
- Output enable;Level shifting;Edge rate controllable
- Current - Output High(IOH)
- 8mA
- Series
- 74AHC
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Number of Elements
- 1
- Propagation Delay
- 8.3ns@3.3V,50pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.679 g
Overview
The SNx4AHC245 octal bus transceivers are designed for asynchronous two-way communication between data buses. This part operates from 4.5V to 5.5V
Applications
- Servers
- PCs and Notebooks
- Network Switches
- Wearable Health and Fitness Devices
- Telecom Infrastructures
- Electronic Points of Sale
Key features
- Operating Range 2-V to 5.5-V VCC
- Latch-Up Performance Exceeds 250 mA Per JESD 17
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AHC245QDWRG4Q1#C1879760TI · SOIC-20-300mil | TI | SOIC-20-300mil | 17 | ₹173.27 · 17 in stock | View |
 | 74AHC245D,118#C554332Nexperia · SO-20-300mil | Nexperia | SO-20-300mil | 4 | ₹33.64 · 4 in stock | View |
 | SN74HC245D (LX)#C22374050lingxingic · SOP-20-300mil | lingxingic | SOP-20-300mil | 55 | ₹15.91 · 55 in stock | View |
 | SN74LS245DWR(LX)#C22374099lingxingic · SOP-20-300mil | lingxingic | SOP-20-300mil | 485 | ₹54.57 · 485 in stock | View |
 | 74HC245D,653#C5625Nexperia · SOIC-20-300mil | Nexperia | SOIC-20-300mil | 40,115 | ₹24.21 · 40,115 in stock | View |
