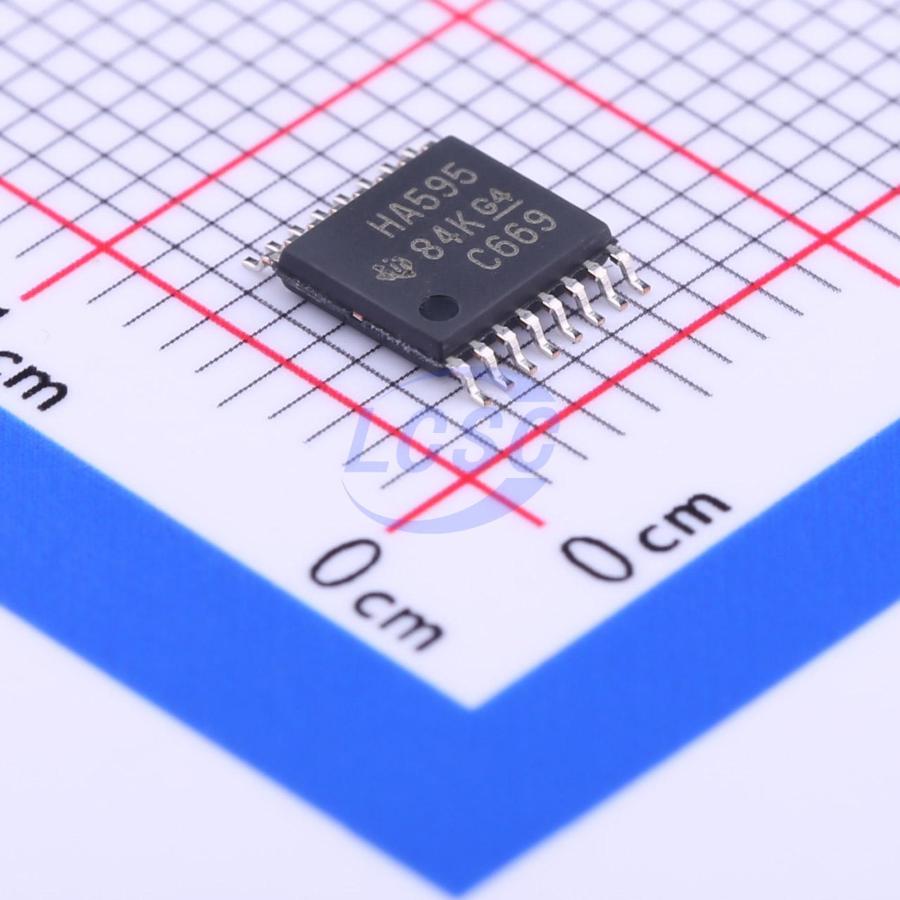

SN74AHC595PWR
2V~5.5V 1 5.6ns@5V,50pF Serial-to-Serial or Parallel TSSOP-16 Shift Registers RoHS
TSSOP-16ROHS3 CompliantActive
8-Bit Serial-In, Parallel-Out Shift Registers With 3-State Output Registers
- Manufacturer
- TI
- Manufacturer part #
- SN74AHC595PWR
- Store part #
- C271269
- Package / case
- TSSOP-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,305 in stock
#C271269
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.78 | ₹233.90 |
| 50+ | ₹37.00 | ₹1,850.00 |
| 150+ | ₹32.81 | ₹4,921.50 |
| 500+ | ₹27.58 | ₹13,790.00 |
| 2,000+ | ₹25.26 | ₹50,520.00 |
| 4,000+ | ₹23.85 | ₹95,400.00 |
5 × ₹46.78
₹233.90
excl. GST
₹276.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74AHC595PWR
₹233.90 for 5 + GST
Specifications
- Operating temperature
- -40℃~+125℃
- Voltage - Supply
- 2V~5.5V
- Output Type
- Tri-State
- Current - Output High(IOH)
- 8mA
- Series
- 74AHC
- Current - Output Low(IOL)
- 8mA
- Number of Elements
- 1
- Propagation Delay
- 5.6ns@5V,50pF
- Features
- Asynchronous clear function;Output enable
- Function
- Serial-to-Serial or Parallel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.183 g
Overview
Operating Range: 2-V to 5.5-V cc • 8-Bit Serial-In, Parallel-Out Shift Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101) The SN74AHC595 device contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. The storage register has parallel 3- state outputs. Separate clocks are provided for both the shift and storage registers. The shift register has a direct overriding clear (SRCLR) input, a serial (SER) input, and a serial output for cascading. When the output-enable (OE(overline)) input is high, all outputs except QH′ are in the high-impedance state.
Applications
- Network Switches
- Power Infrastructures
- LED Displays
- Servers
Key features
- Operating voltage range: 2V~5.5V
- 8-bit serial-in, parallel-out shift register architecture
- Latch-up performance exceeds 100mA, compliant with JESD 78 Class II
- ESD protection exceeds JESD 22: withstands 2000V HBM, 200V MM, and 1000V CDM
- Maximum operating temperature up to 125℃
