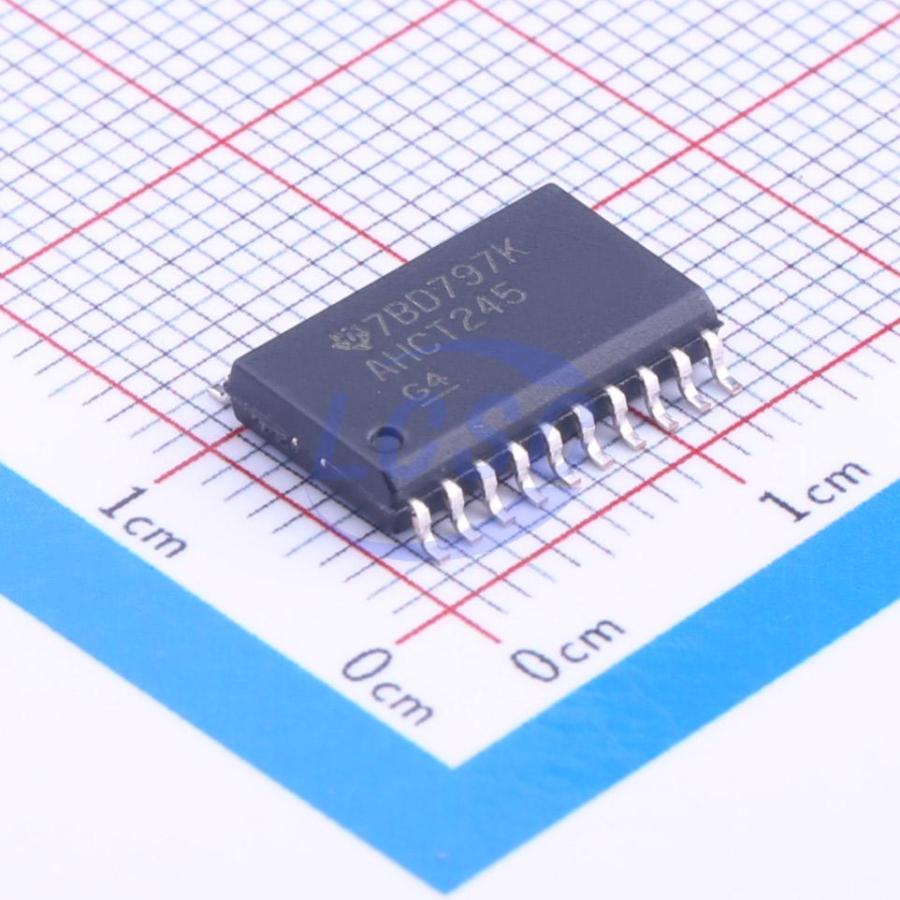

SN74AHCT245DWR

4.5V~5.5V 8 1 5.3ns@5V,50pF SOIC-20-300mil Buffers, Drivers, Receivers, Transceivers RoHS

SOIC-20-300milROHS3 CompliantActive

Octal Bus Transceivers With 3-State Outputs

Manufacturer: TI
Manufacturer part #: SN74AHCT245DWR
Store part #: C94773
Package / case: SOIC-20-300mil
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,414 in stock

#C94773

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹90.85	₹90.85
10+	₹76.76	₹767.60
30+	₹69.60	₹2,088.00
100+	₹62.67	₹6,267.00
500+	₹58.54	₹29,270.00
1,000+	₹56.37	₹56,370.00

Quantity (min 1)

1 × ₹90.85

₹90.85

excl. GST

₹107.20 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

SN74AHCT245DWR

₹90.85 for 1 + GST

Specifications

Voltage - Supply: 4.5V~5.5V
Output Type: Tri-State
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 40uA
Function: Output enable;Level shifting;Edge rate controllable
Current - Output High(IOH): 8mA
Series: 74AHCT
Current - Output Low(IOL): 8mA
Number of Bits per Element: 8
Channel Type: Bidirectional
Number of Elements: 1
Propagation Delay: 5.3ns@5V,50pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.747 g

Overview

The SNx4AHCT245 octal bus transceivers are designed for asynchronous two-way communication between data buses. These parts operate from 4.5 V to 5.5 V.

Applications

Servers
PCs and Notebooks
Network Switches
Wearable Health and Fitness Devices
Telecom Infrastructures Electronic Points of Sale

Key features

Inputs Are TTL-Voltage Compatible
Latch-Up Performance Exceeds 250 mA Per JESD 17
ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101)
